2–Installation
Optional operator console I/O cable
See Optional operator console I/O signals on page 103 for more information about discrete
operator console I/O signals.
Part number Length Part number Length
223216 3.0 m (10 feet) 223111 23.0 m (75 feet)
223217 6.0 m (20 feet) 223112 30.5 m (100 feet)
223121 7.5 m (25 feet) 223113 45.5 m (150 feet)
223218 10.5 m (35 feet) 223114 61.0 m (200 feet)
223006 15.0 m (50 feet)

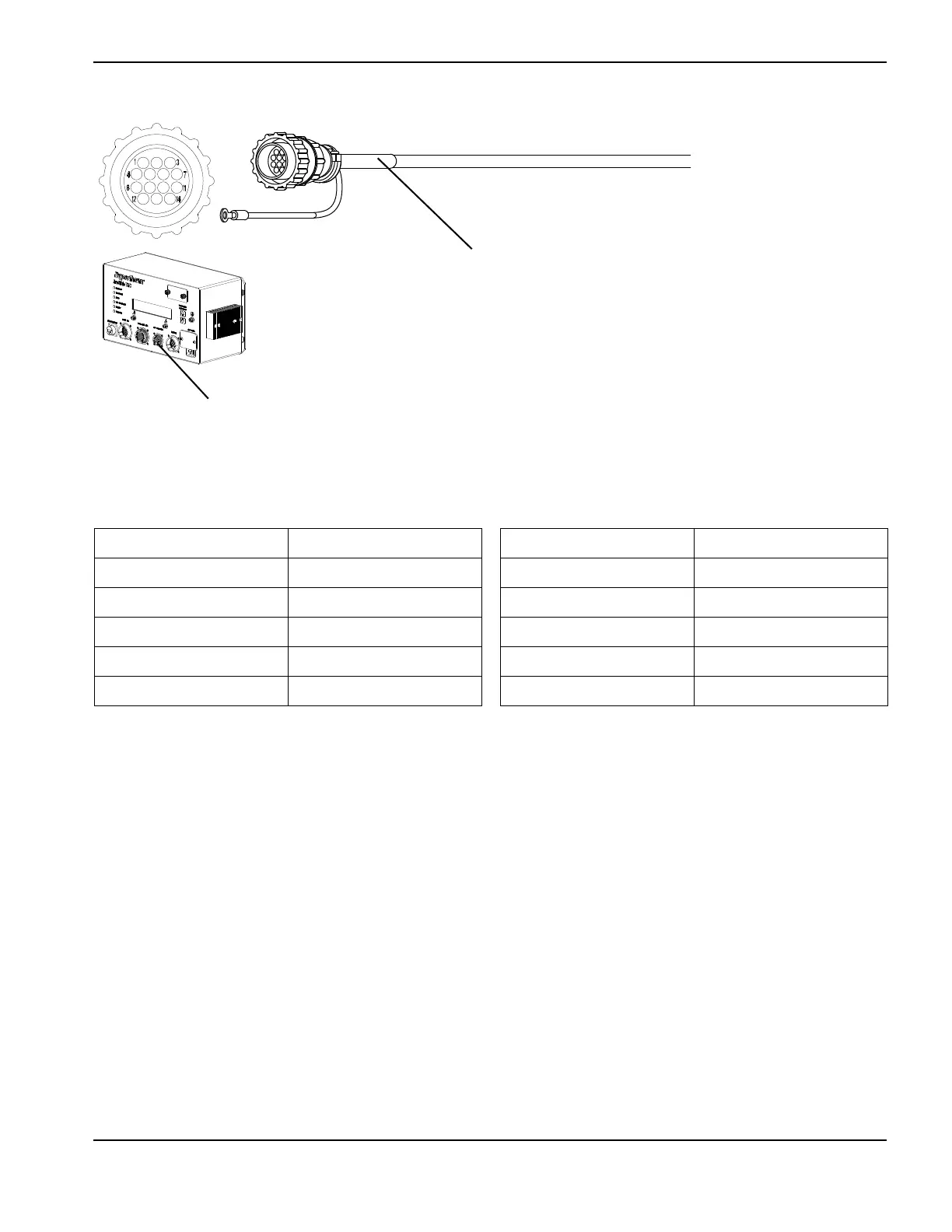

Green band
Diameter = 7.36 mm (0.29 inch)
Bend radius = 152.40 mm (6.00 inch)
Add the appropriate connector
for your console on this end.
Contact your console supplier
for additional information.
Connect this end to the port on the
control module with the green circle.
To Next Page
