2–Installation
Cables
Power cable
An AC power cable is standard equipment for North America, and is shipped with the ArcGlide THC. For other regions,
use a power cable that has an IEC-60320-C13 end which meets the requirements of local code and power connections.
To make a power cable, use the power connector (108842) that ships with the ArcGlide THC and connect a 3-wire
cable for line, neutral, and ground signals according to local electrical codes. Figure 27 shows examples of how power
cables can be made.

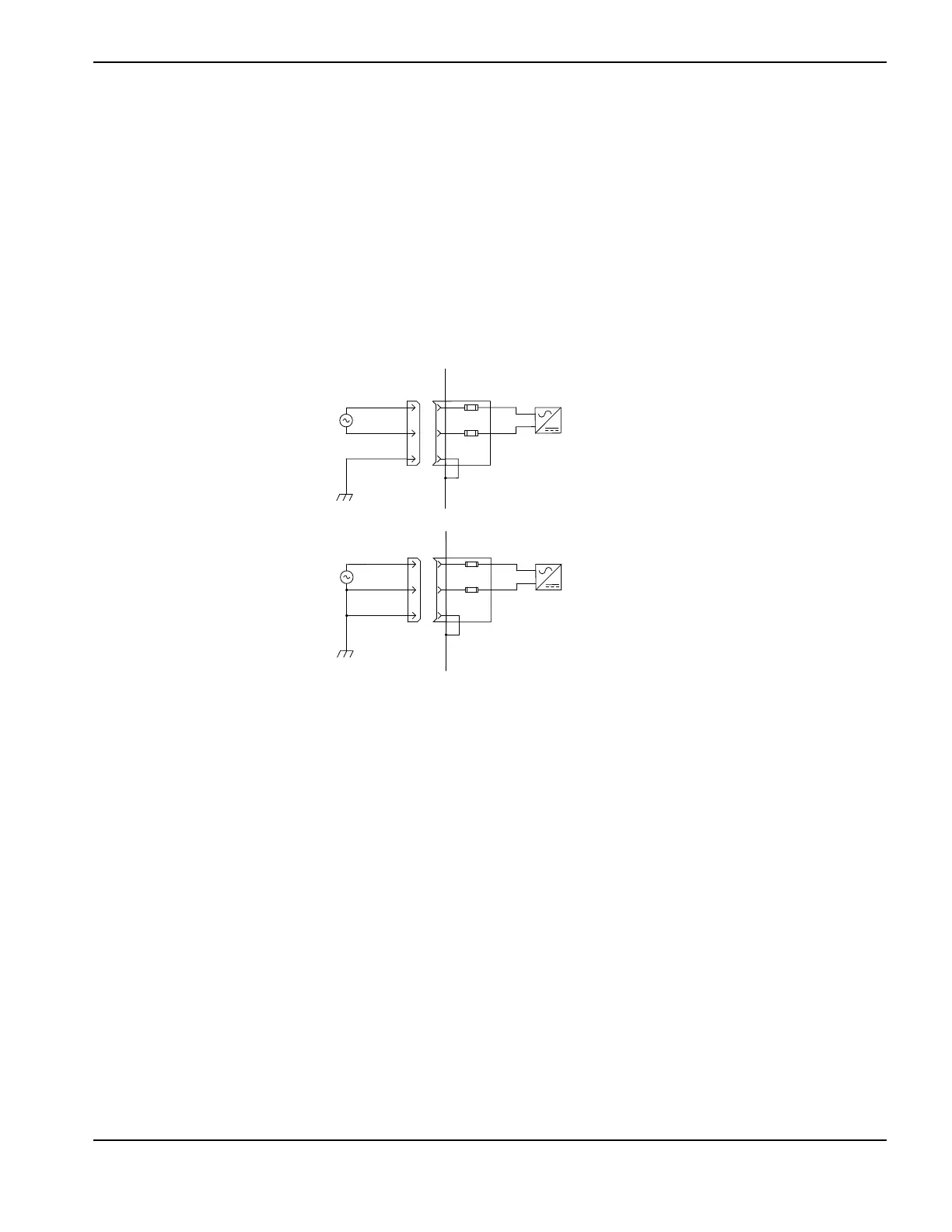

Figure 27
Customer-supplied power 220 VAC
Customer-supplied power 120 VAC
L1 – line
L2 – neutral
PE ground
L1 – line
L2 – line
PE ground
Power entry module:
2 Fuses: 250 V, 5 A, slow blow,
0.25 inch x 1.25 inch
Power entry module:
2 Fuses: 250 V, 5 A, slow blow,
0.25 inch x 1.25 inch
