Hypertherm ArcGlide THC User Manual

228 ArcGlide THC Instruction Manual 806450
4 – Maintenance

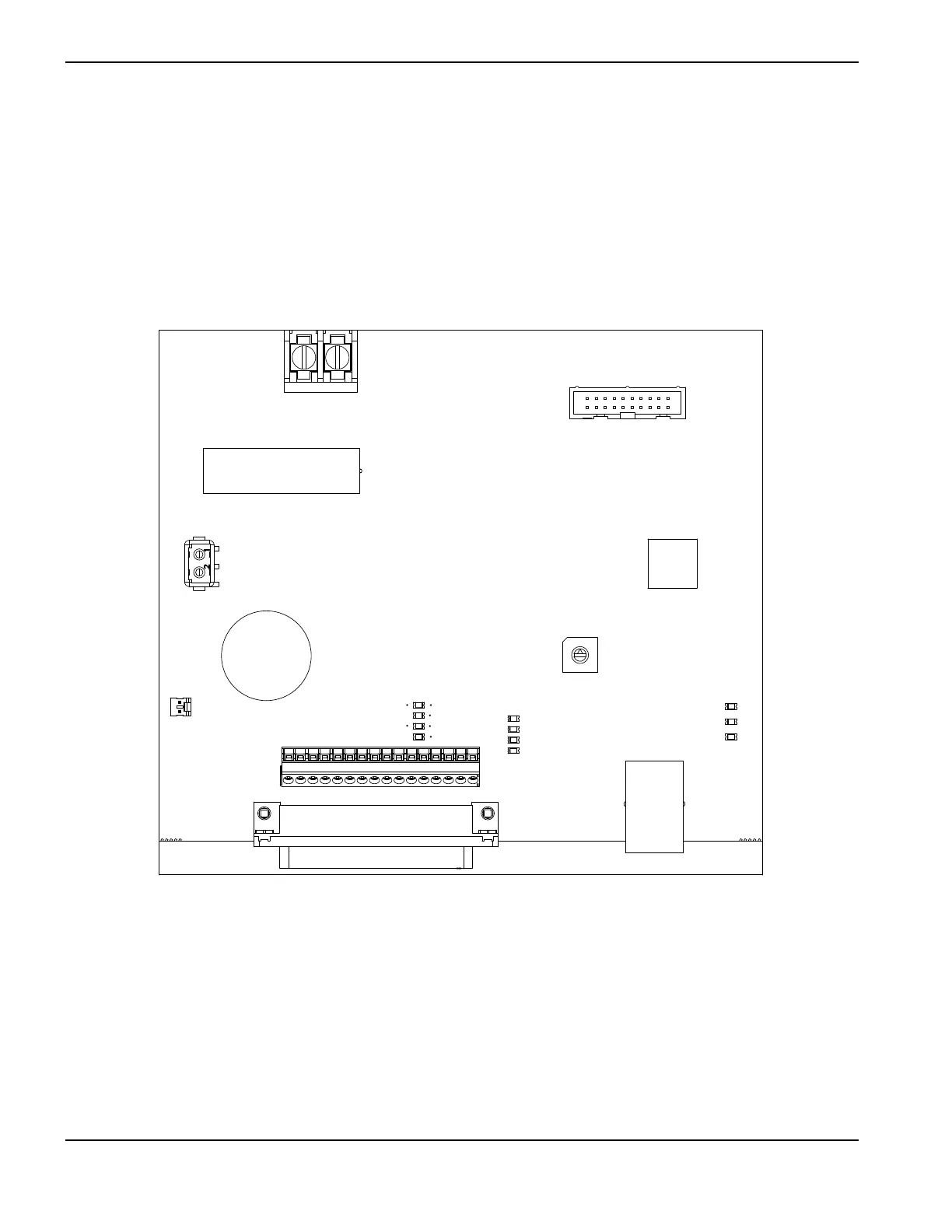

Hypernet plasma interface board (141162)
There are multiple kits for the Hypernet plasma interface board. Order the kit that corresponds to your plasma system:
Connect the arc voltage terminals to the I/O board in the HPR plasma system.

In a Hypernet configuration, the Unit address switch (SW1) on the Hypernet interface board
must have the same address as the Unit address switch on the HMI processor and the THC
processor boards. The default setting is 1.
Kit number Description
228604 Hypernet upgrade kit for HPR400XD and HPR800XD
228611 Hypernet upgrade kit for HPR130XD and HPR260XD
428276 Hypernet upgrade kit for MAXPRO200
Electrode (-) Work (+)
J4 Arc voltage
J6 Remote ON or OFF
1
2
Connect pins 1 and 2 to locations 1 and 3 on terminal block 2 in
the plasma system.
SW1
Unit address
24 VAC input
J7
J3
J5 CNC interface
Hypernet
LED 1
LED 2
LED 3
