214 ArcGlide THC Instruction Manual 806450
4 Maintenance

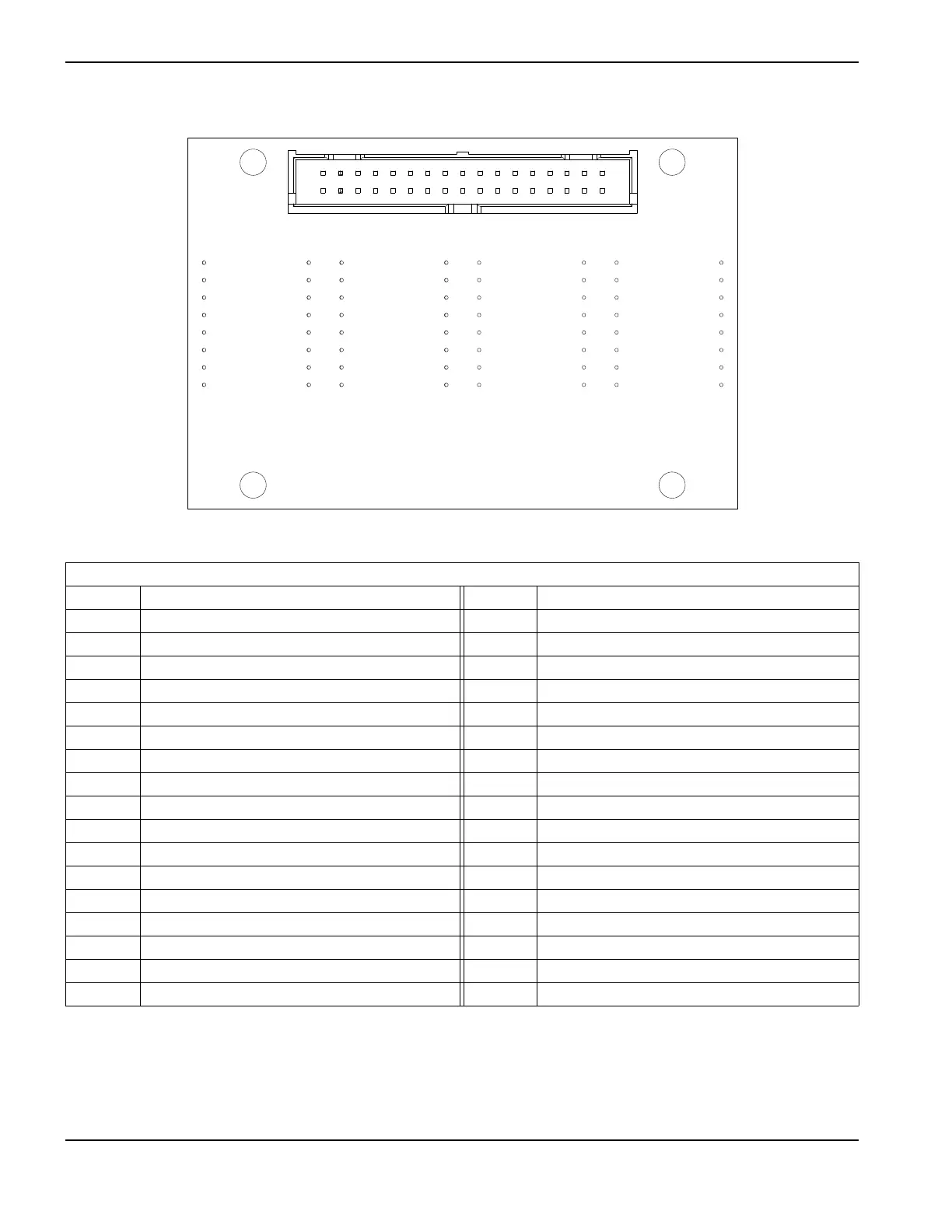

HMI 7-segment display interface board (228582)
J3 Display ribbon cable
Pin No. Signal Pin No. Signal
1 +LED V 2 +LED V
3 Ones decimal point 4 Ones G
5 Ones F 6 Ones E
7 Ones D 8 Ones C
9 Ones B 10 Ones A
11 Tens decimal point 12 Tens G
13 Tens F 14 Tens E
15 Tens D 16 Tens C
17 Tens B 18 Tens A
19 Hundreds decimal point 20 Hundreds G
21 Hundreds F 22 Hundreds E
23 Hundreds D 24 Hundreds C
25 Hundreds B 26 Hundreds A
27 Thousands decimal point 28 Thousands G
29 Thousands F 30 Thousands E
31 Thousands D 32 Thousands C
33 Thousands B 34 Thousands A
J1 Display ribbon cable connector
1
2
34
33
