116 ArcGlide THC Instruction Manual 806450
2 – Installation

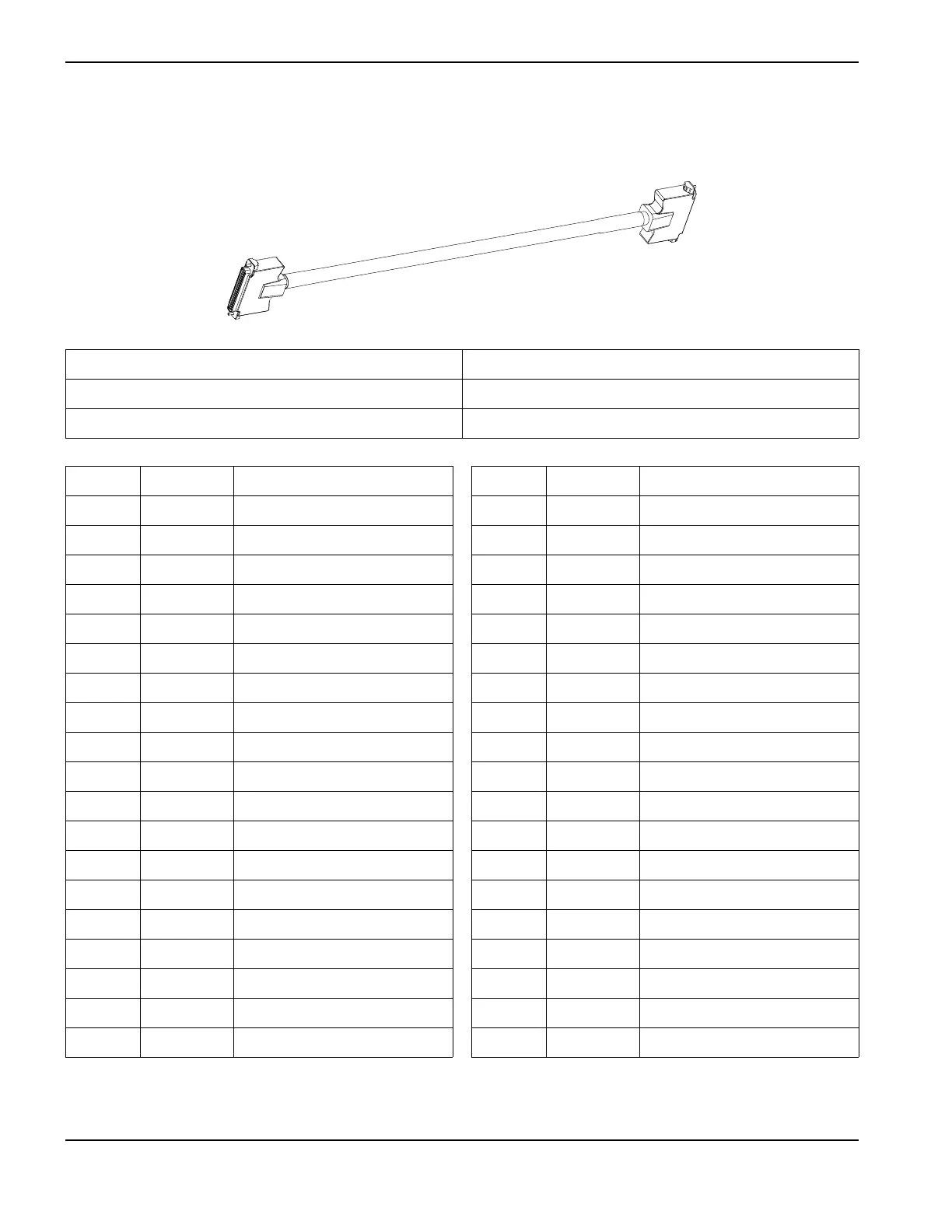

Serial plasma interface cable
This cable connects the ArcGlide plasma interface board and control board inside the plasma system. Use this cable
when the ArcGlide THC supplies serial communication to the plasma system.
Part number Length
123760 0.61 m (2 feet)
123209 1.5 m (5 feet)
Pin No. Color Signal Pin No. Color Signal
1 Black HPR Rx - 20 Red HPR Rx +
2 Black HPR Tx - 21 Green HPR Tx +
3 Black RS-422 communication 22 Blue HPR turned ON
4 Black Motion - 23 Ye ll o w M o ti o n +
5 Black Error - 24 Brown Error +
6 Black Rampdown error - 25 Orange Rampdown error +
7 Red HPR not ready - 26 White HPR not ready +
8 Red Not connected 27 Green Not connected
9 Red Not connected 28 Blue Not connected
10 Red Not connected 29 Yellow Not connected
11 Red Not connected 30 Brown Not connected
12 Red Corner A 31 Orange Corner B
13 Green Pierce A 32 White Pierce B
14 Green Hold A 33 Blue Hold B
15 Green Plasma Start relay A 34 Yellow Plasma Start relay B
16 Green Not used 35 Brown Not used
17 Green Not connected 36 Orange Ground
18 White Ground 37 Black +24 VDC HPR plasma
19 Not connected 38 Ground
Diameter = 9.65 mm (0.38 inch)
Bend radius = 152.40 mm (6.00 inch)
