118 ArcGlide THC Instruction Manual 806450
2 – Installation
Relay outputs
Most of the ArcGlide THC outputs are relay contacts and can be used for either AC or DC loads. All relay outputs are
protected with thermal fuses that automatically reset and protect against currents above 100 mA. The 24 V supply is

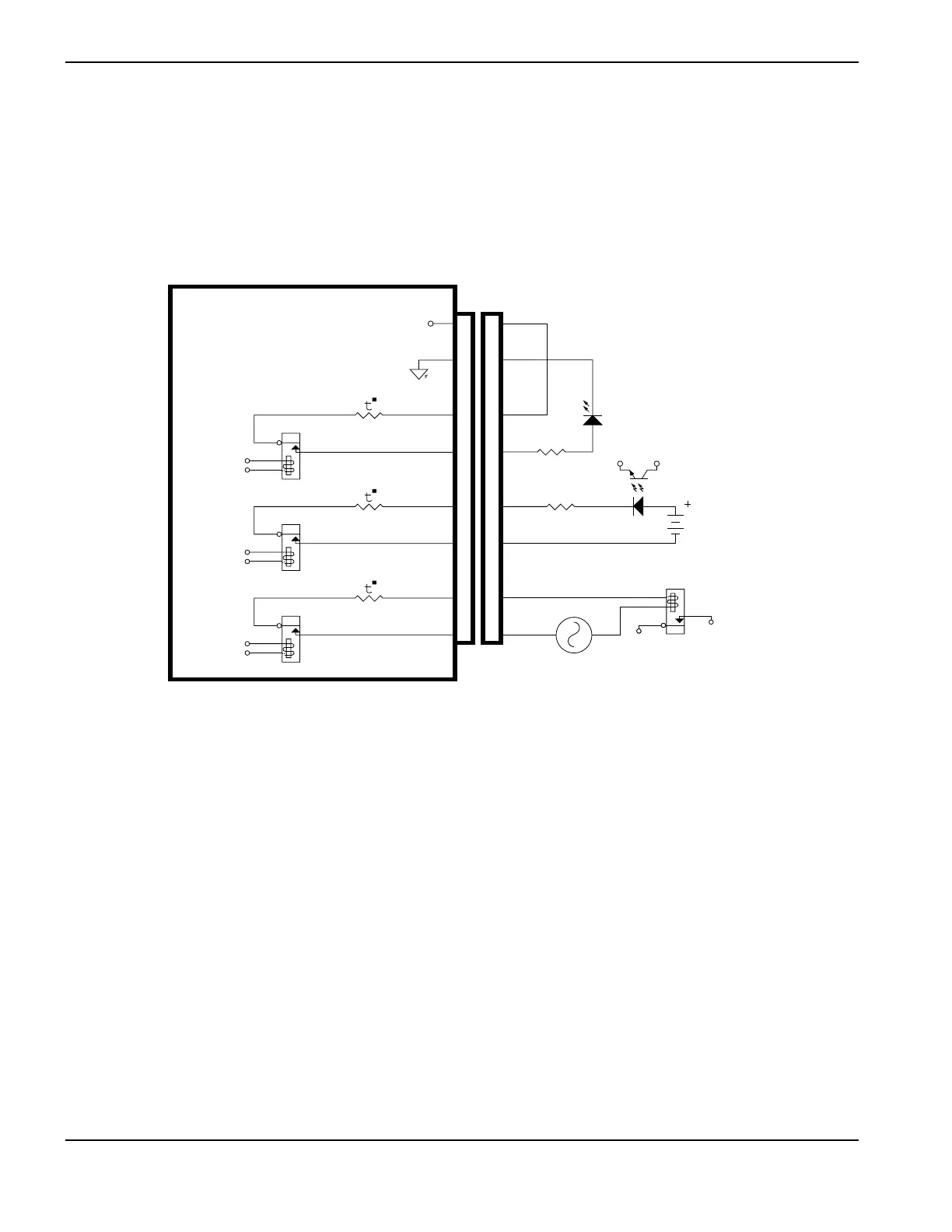

limited to a total of 2 A for all outputs. Figure 31 shows a simplified schematic of the ArcGlide THC outputs.
Figure 31
A
B
A
B
A
B
Voltage 12 VAC to 24 VAC or 24 VDC
*Positive temperature coefficient
Relay
Relay
Relay
PTC* 100 mA
PTC* 100 mA
PTC* 100 mA
LEDs
Optoisolator
Relay
Use internal field +24 VDC
+24 VDC Field
