Hypertherm ArcGlide THC User Manual

238 ArcGlide THC Instruction Manual 806450
5 – Parts List

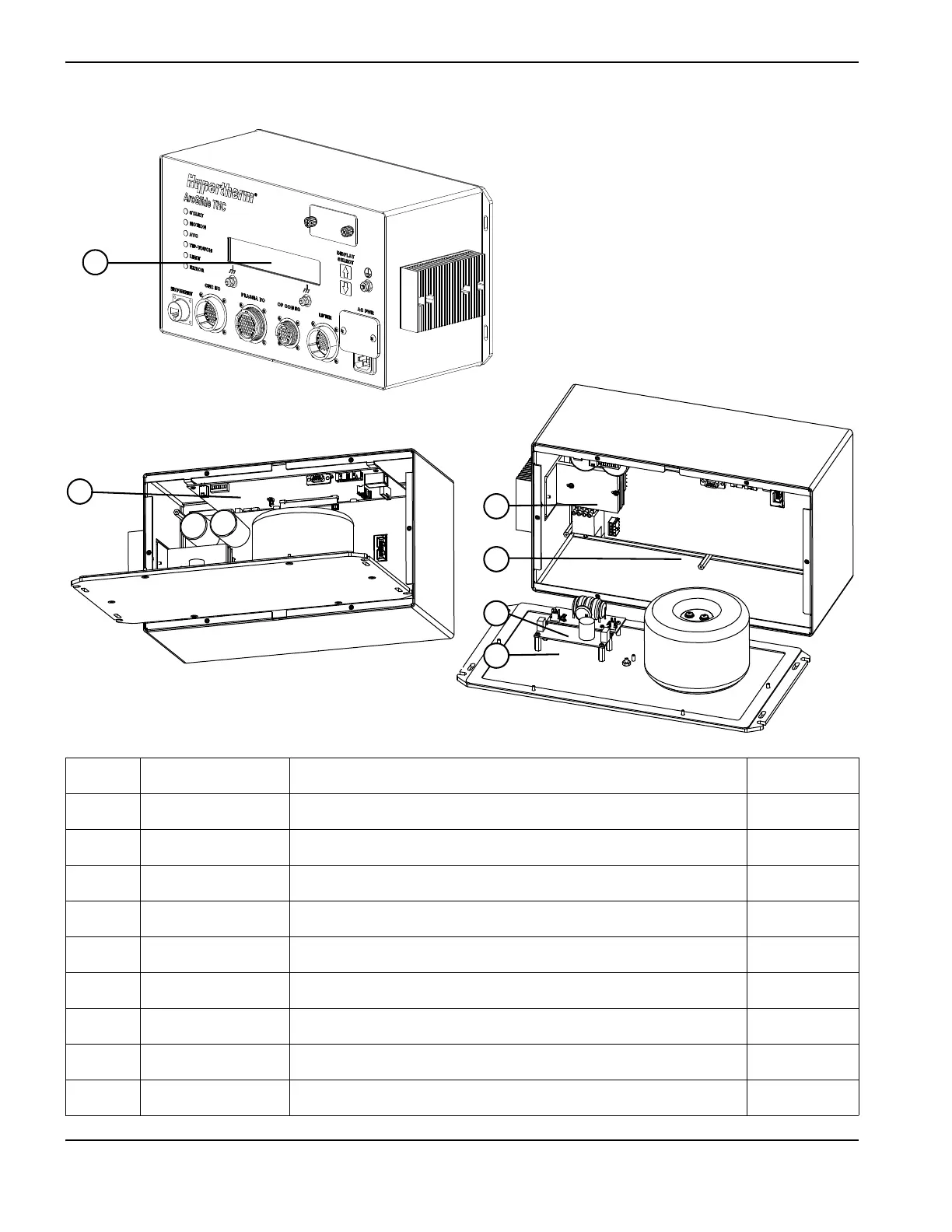

Control module parts
Item Kit number Description Quantity
1 228589 LCD display 1
2 228578 THC processor board 1
3 428081 Servo amplifier module 1
4 228577 THC control interface board 1
5 228579 230 V surge board 1
6 228590 120 VAC, 5 V, 5 A, 25 W power source 1
008756 5 A, 250 V, 1/4 inch X 1-1/4 inch slow blow fuse 1
108842 Power cable connector 1
008197 AMP Pin extractor tool 1
1
4
3
5
6
2
