ArcGlide THC Instruction Manual 806450 107
2–Installation
All ArcGlide CNC inputs can be configured for dry contact closures or 12 V – 24 V sourced inputs.

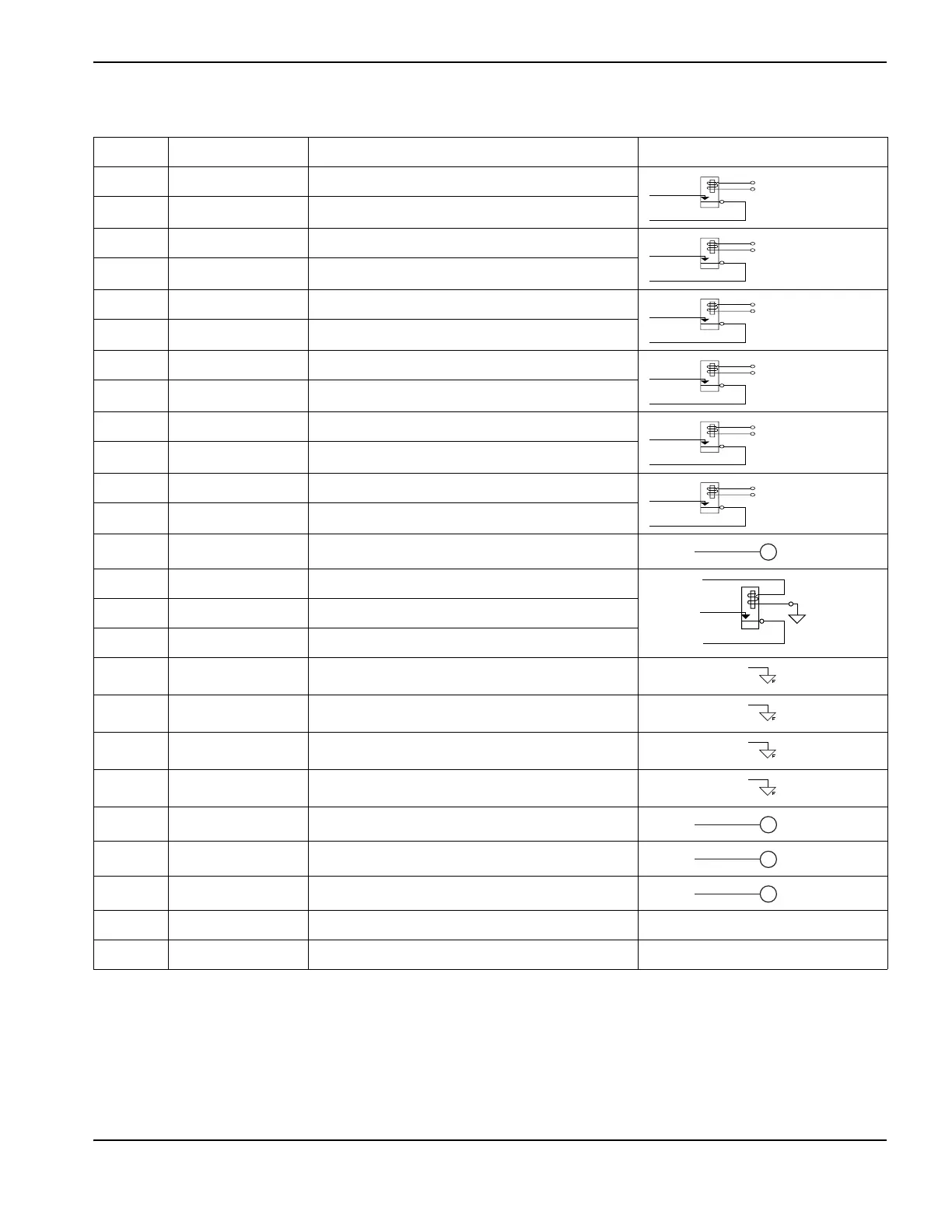

Pin No.* Color Signal name Dry contact or sourced circuit
13 Orange IHS Complete output A
14
Black IHS Complete output B
15 White Retract Complete output A
16
Red Retract Complete output B
17 Green Machine Motion output A
18
Red Machine Motion output B
19 Blue THC Error output A
20
Red THC Error output B
21 Yellow Torch Breakaway output A
22
Red Torch Breakaway output B
23 Brown CNC Spare output A
24
Red CNC Spare output B
25
Orange Motion Interlock input +
**
26 Red Motion Interlock input -
**
27 White Interlock output A
28 Green Interlock output B
29
Blue Common
30
Green Common
31
Yellow Common
32
Green Common
33
Brown +24 VDC output
34
Green +24 VDC output
35
Orange +24 VDC output
36 Not connected
37 Not connected
*
Pin numbers are the same on both ends of the cable.
**
The circuit is closed if a jumper is used.
normally open
A
B
normally open
A
B
normally open
A
B
normally open
A
B
normally open
A
B
normally open
A
B
+24 V
A
B
+24 V
+24 V
+24 V
