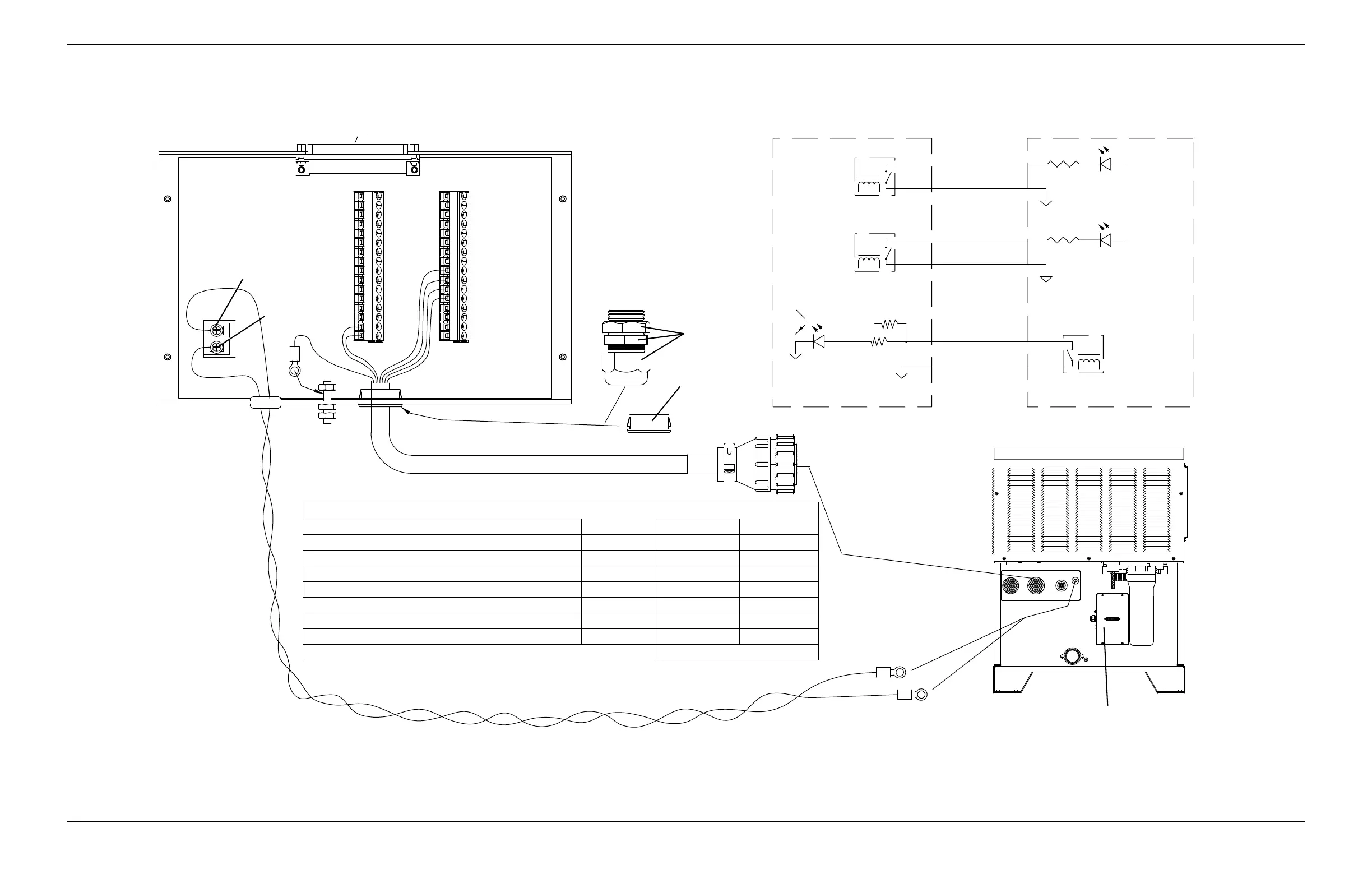

Plasma interface board (141094), mounted externally
by the customer
Discrete plasma interface board
(141094)
1 x 6 machine interface cable
Remove
Replace with
bushing (008245)
Electrode -
Work +
Motion - Red
Hold A - White
Start B - Black
Hold B- Black
Common - Blue
Not connected
Plasma interface termination
Signal Wire color Pin Cable label
Plasma Start A Blue 9 82
Plasma Start B Black 15 83
Hold A White 1 87
Hold B Black 5 86
Motion Red 36 (37*) 84
Common Blue 31 (32*) 85
Ring terminal to ground stud Shield wire No connection
Set plasma inputs to dry (D) using the input switch on the control module. ( * ) For HT2000, HT2000LHF
ArcGlide plasma interface terminal blocks
Machine interface 1 X 6 CPC connector
To plasma system
Work +
To plasma system
Electrode -
Refer to the HT2000 Instruction
Manual (802070) or the
HT2000LHF Instruction Manual
(803020) for information about the
1 X 6 connection
Arc voltage sense wires to plasma system, use ~0.9 mm
2
(18 AWG) twisted pair wire,
rated 600 V or greater.
Start A - Blue
To Next Page
