ArcGlide THC Instruction Manual 806450 93
2–Installation

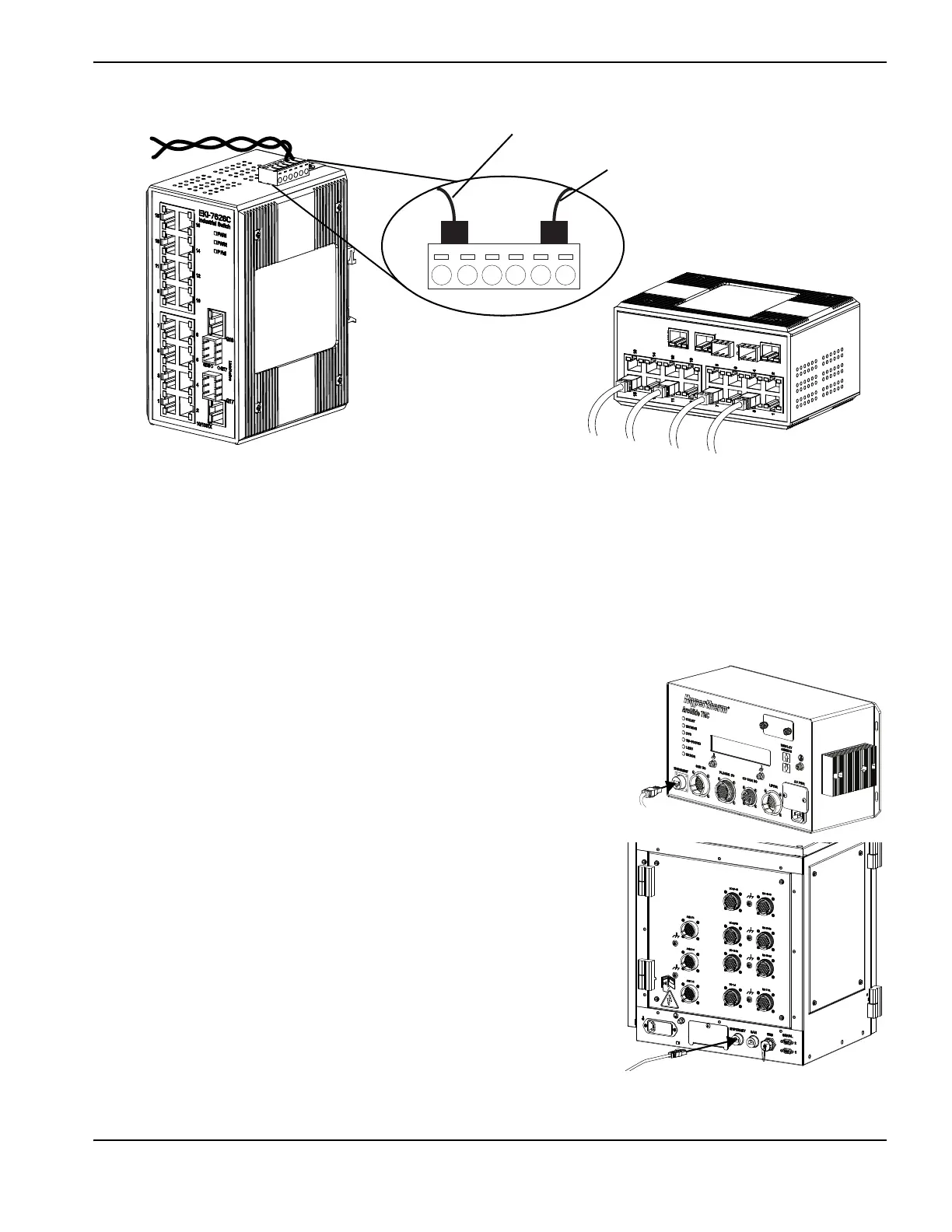

Figure 26
It is also possible to have a mixed Hypernet and discrete configuration in which the ArcGlide THC communicates with
only the CNC or plasma system over Hypernet and uses discrete communication for the alternate connection. See Mixed
communication on page 51.
Use the portions of the following instructions that apply to your configuration.
1. Use a Hypernet cable to connect the control module to
the Ethernet switch:
a. Insert one end of the Hypernet cable into the
Hypernet port on the front of the control module.
b. Insert the other end of the cable into one of the ports
of the Ethernet switch.
2. Use a Hypernet cable to connect the CNC to the Ethernet
switch.
a. Insert one end of the Hypernet cable into the Hypernet
port on the back of a Hypertherm CNC or to a
dedicated, Hypernet port on any other CNC.
b. Insert the other end of the cable into one of the ports
of the Ethernet switch.
PWR2PWR1
1A @24V
123456
To Ethernet switch power supply 2
To Ethernet switch power supply 1
+
+
+--
Power connections to the Ethernet switch Hypernet connections to the Ethernet switch
To the Ethernet
switch
To the Ethernet
switch
