Maintenance
5-4 HPR800XD Auto Gas – 806500
System description

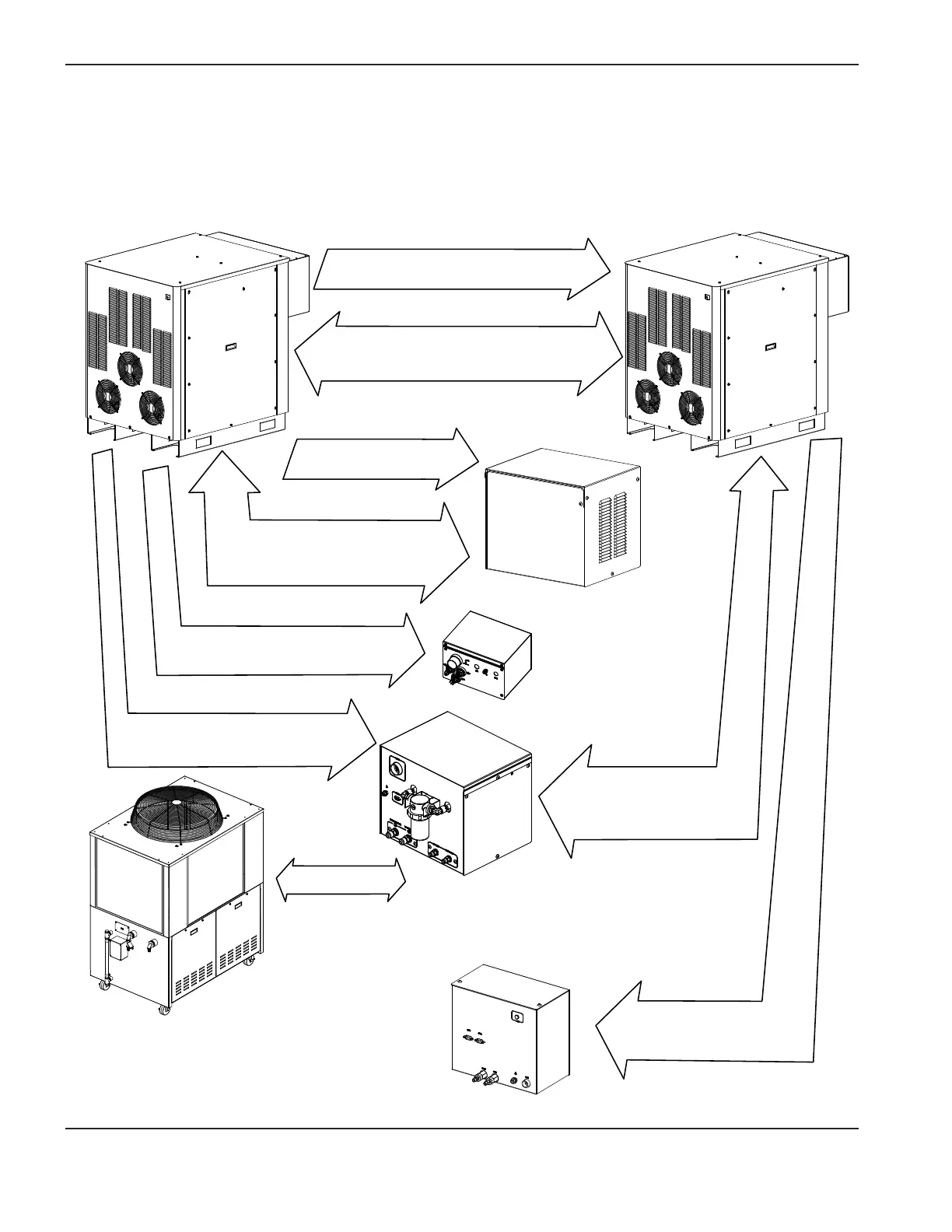

Power and signal cables
Power cable: Provides 120 VAC
to the selection console.
Coolant flow.
Interface cable: Turns on the secondary
power supply.
CAN Bus signal cable: Provides process and
status signals between the primary and the
secondary power supplies.
CAN Bus signal cable: Provides process and
status signals between the primary power
supply and the selection console.
CAN Bus signal cable: Provides
process and status signals between
the secondary power supply and the
chiller interface console.
Power cable: Provides 120 VAC to
the ignition console.
Power cable: Provides 120 VAC to the
chiller interface console.
Power cable: Provides 120 VAC to
the metering console.
