InstallatIon
3-42 HPR800XD Auto Gas – 806500
Connect the leads
Note: Do not overtighten the connections
Junction box to the ignition console
1. Connect one end of the junction box lead to the junction box.
Note: The lead can go in either end of the junction box.

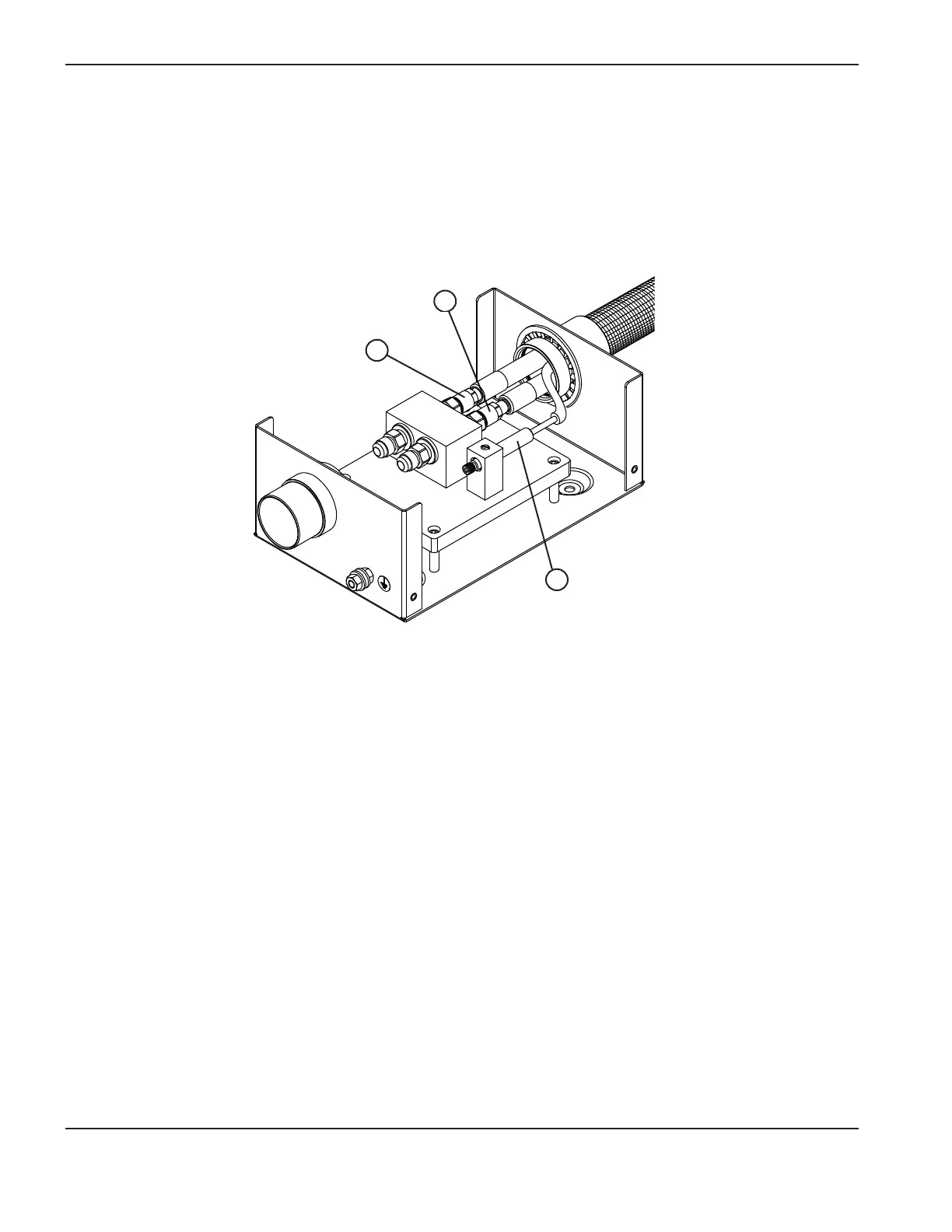

1 Coolant supply hose (green) 3 Pilot arc lead (yellow)
2 Coolant return hose (red)
From the ignition console
1
2
3
