HPR800XD Auto Gas – 806500 3-15

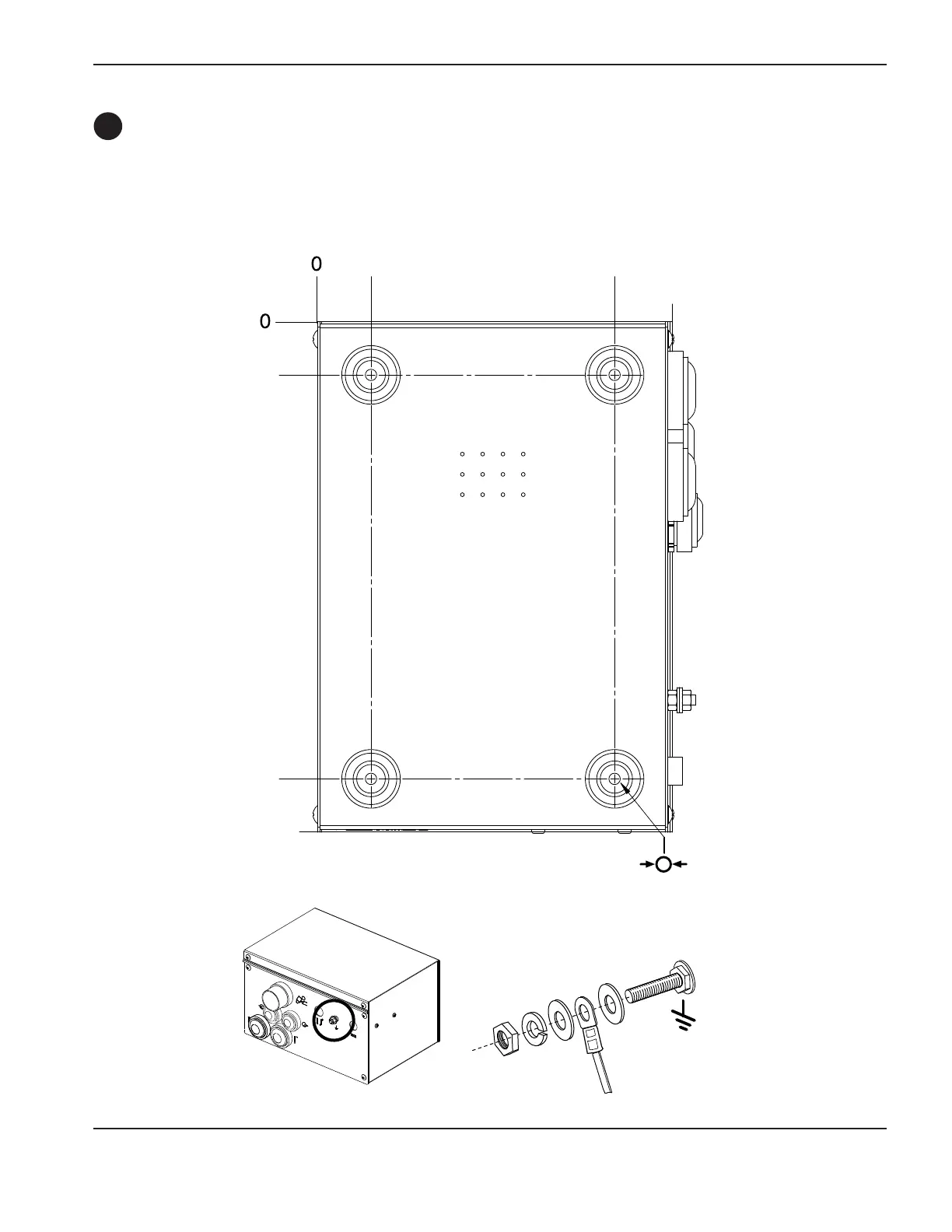

Install the ignition console
• Mount the ignition console in a vertical or horizontal position.
• Allow room to remove the top for servicing.
Ignition console grounding
7 mm
0.28 in
(4 places)
32 mm
1.25 in
32 mm
1.25 in
184 mm
7.25 in
279 mm
11.00 in
248 mm
9.75 in
216 mm
8.50 in
C
