InstallatIon
HPR800XD Auto Gas – 806500 3-23

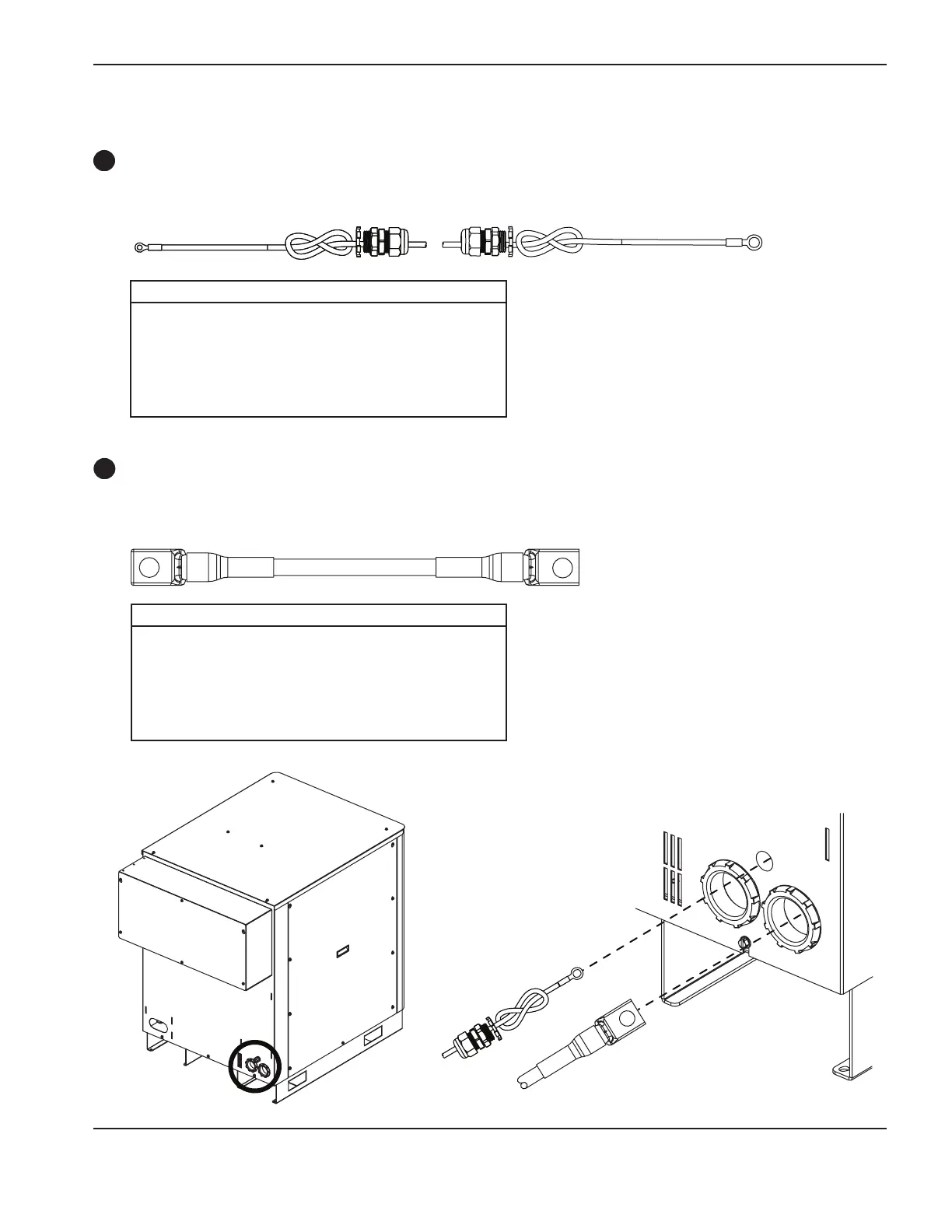

Power supply to ignition console leads
Pilot arc lead
Negative leads
Pilot arc lead
Negative lead
Ignition console
I/O board
Part no. Length Part no. Length
123418 3 m (10 ft) 123996 25 m (82 ft)
023382 4.5 m (15 ft) 123997 35 m (115 ft)
023078 7.5 m (25 ft) 023081 45 m (150 ft)
123994 10 m (35 ft) 023188 60 m (200 ft)
023079 15 m (50 ft) 023815 75 m (250 ft)
123995 20 m (65 ft)
3
4
Primary power supply
*Note: There is a negative lead between each power supply and the ignition console
*Note: The pilot arc lead only attaches between the primary power supply and the ignition console
Part no. Length Part no. Length
123820 3 m (10 ft) 123735 25 m (82 ft)
123821 4.5 m (15 ft) 123668 35 m (115 ft)
123666 7.5 m (25 ft) 123669 45 m (150 ft)
123822 10 m (35 ft) 123824 60 m (200 ft)
123667 15 m (50 ft) 123825 75 m (250 ft)
123823 20 m (65 ft)
