Hypertherm HyPerformance Plasma HPR800XD User Manual

Appendix C – robotiC AppliCAtions
HPR800XD Auto Gas – 806500 c-3
Rotational mounting sleeve (optional) – 220864
The rotational sleeve is designed for use in applications where the torch leads are
twisted repeatedly. It is an optional component, and does not need to be used to
use the torch leads listed above. The length of the rotational sleeve is 114.3 mm
(4.5 in).
Rotational mounting sleeve clamp – 220900
The rotational sleeve has a larger diameter than standard sleeves (57 mm/2.25 in).
Leather over wrap – 024866
The leather over wrap is 3 m (10 ft) long, and is designed to be installed over the
leads from where they attach to the torch. This adds protection in applications
where molten metal will splash back on the leads.
Robotic teaching torch (laser pointer) – 228394
• Mountthelaserpointerinthetorchsleevetoprovideaccuratepositioningand
alignment of the torch.
• Useforonlineprogramming/teachingandroboticalignmentsystems.

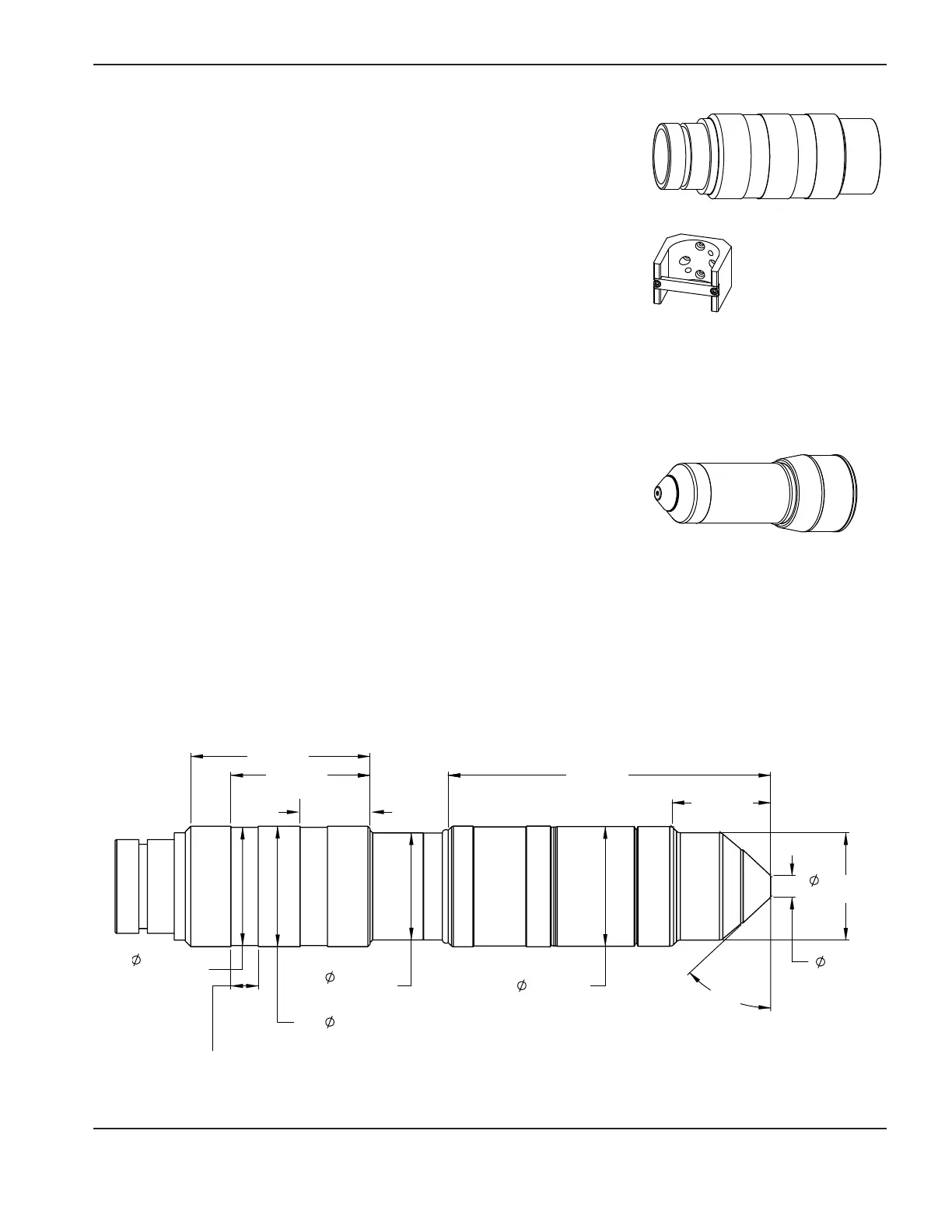

Torch and rotational mounting sleeve dimensions
47°
84.84 mm
(3.34")
65.79 mm
(2.59")
33.02 mm
(1.30")
152.65 mm
(6.01")
37.08 mm
(1.46")
46.74 mm
(1.84")
10.16 mm
(0.40")
50.80 mm
(2.00")
56.64 mm
(2.23")
57.02 mm
(2.245")
3 X
50.67 mm
(1.995")
56.01 mm
(2.205")
2 X
2 X 12.95 mm
(0.51")
