Maintenance
5-50 HPR800XD Auto Gas – 806500

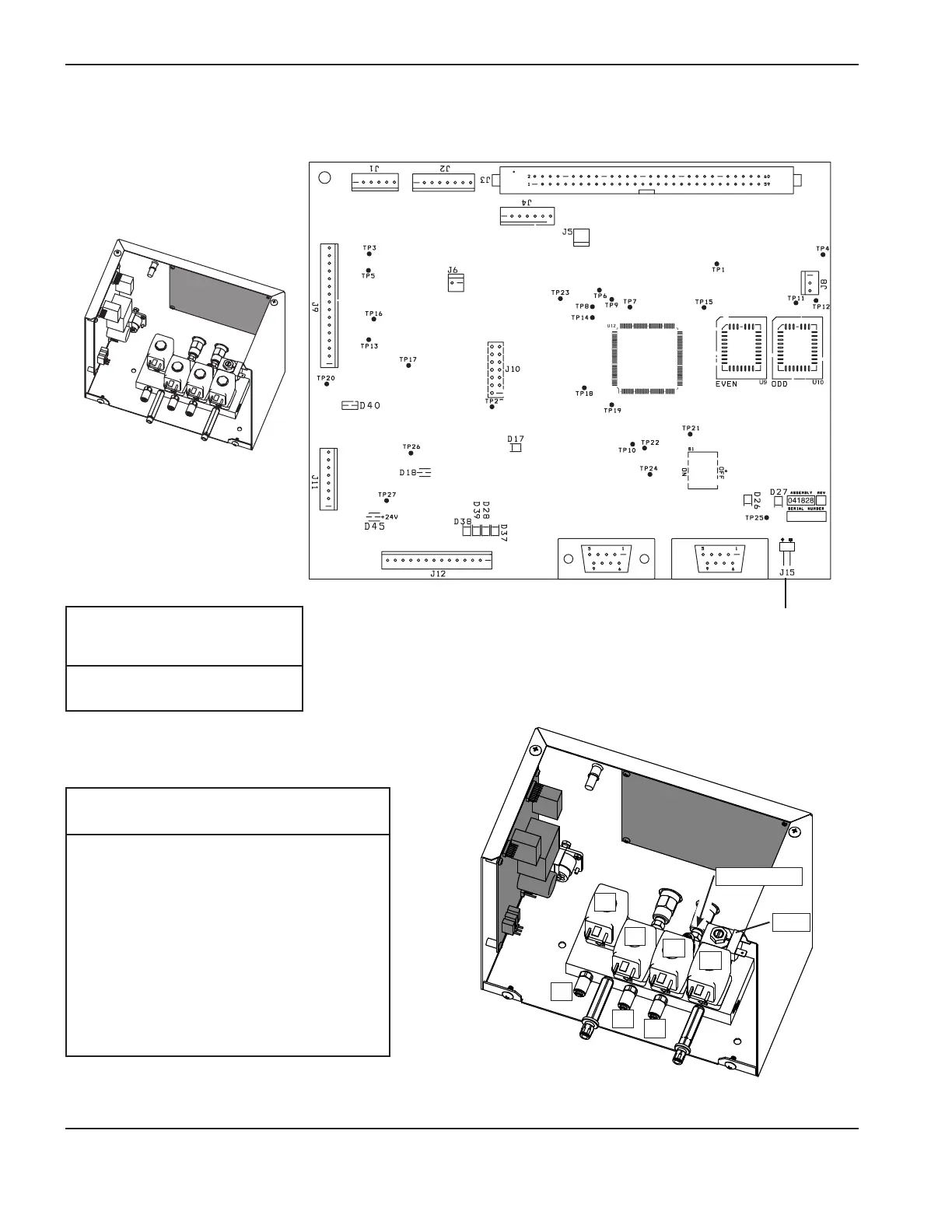

Metering console control board PCB2
Note: CAN termination resistor. The jumper
must be installed.
B1
B2
B3
B4
P8
P7
P6
SV16
P5 (not visible)
Control PCB2 firmware list
Item Part number
U9 081110 EVEN
U10 081110 ODD
Gas console control board LED list
LED Signal name Color
D17 + 3.3 VDC Green
D18 + 5 VDC Green
D26 CAN – RX Green
D27 CAN – TX Green
D28 Burkert valve 2 Red
D37 Burkert valve 1 Red
D38 Burkert valve 4 Red
D39 Burkert valve 3 Red
D40 + 15 VDC Green
D45 + 24 VDC Green
