Hypertherm HyPerformance Plasma HPR800XD - Chiller Interface Console Parts

Parts List
HPR800XD Auto Gas – 806500 6-7

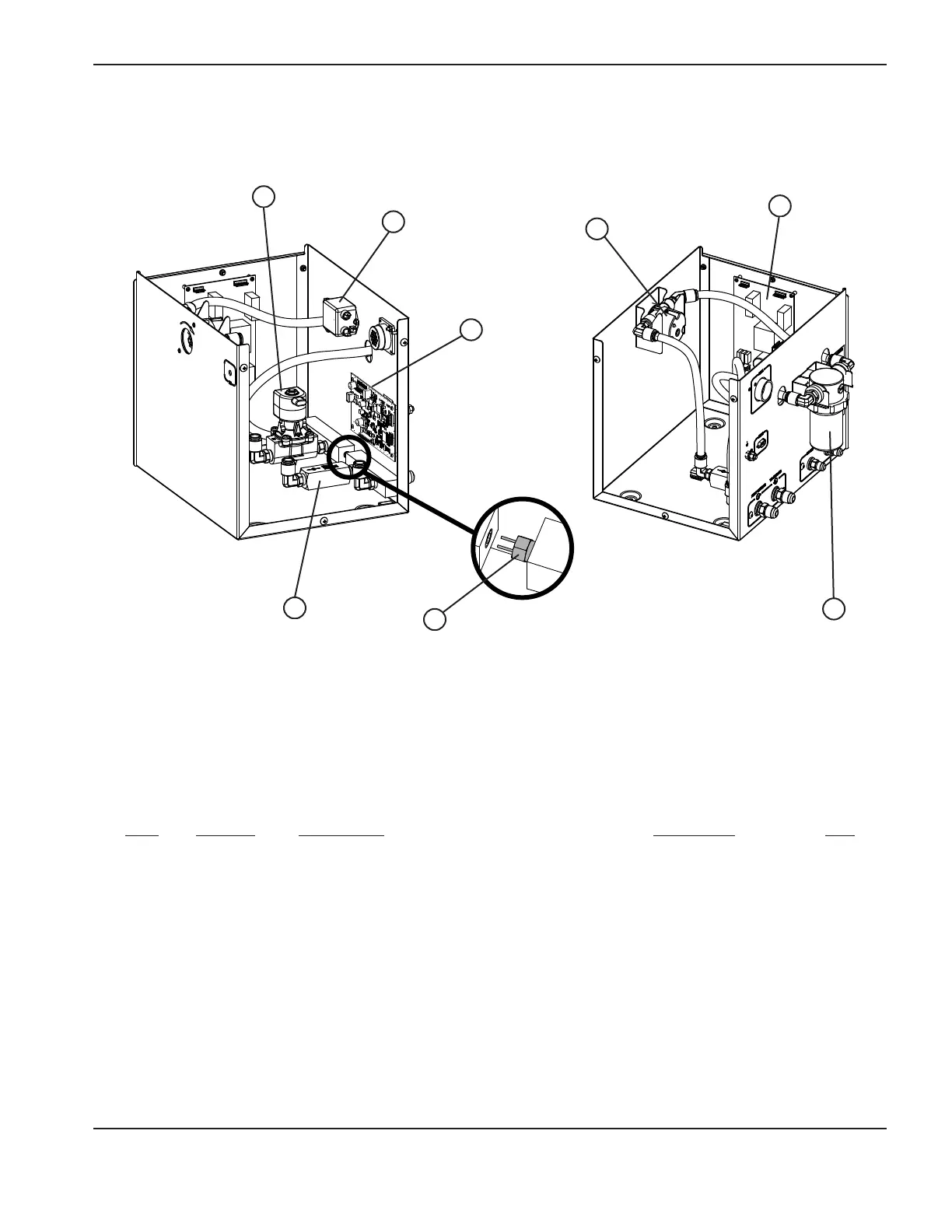

Chiller interface console
2
3
1
Part
Item Number Description Designator Qty.
078537 Chiller interface console
1 229345 Solenoid valve 1
2 009040 EMI filter: 250 VAC, 2 amp, 1 phase 1
3 141033 PCB: Cooler sensor 1
4 229235 Flow sensor FS1 1
5 041897 PCB: Console power distribution 1
008756 Fuse: 5 amp, 250 volt (slow-blow) 1
6 027634 Filter housing 1
027664 Filter element 1
7 229224 Temperature sensor TS1 1
8 006113 Check valve 1
4
7
6
8
5
