InstallatIon
HPR800XD Auto Gas – 806500 3-13
A strap kit (228336) for lifting the power supplies is available from Hypertherm. The strap kit should only be used to
lift the power supplies as outlined herein. Before using the strap kit, the customer understands and assumes exclusive
responsibility for supplying personnel trained and qualified to operate forklifts, cranes, hoists and other lifting devices to
lift or move the power supplies. All movement of the power supplies must be done in compliance with applicable local
laws and regulations. All handling equipment must be evaluated for each application and inspected and tested before
each use. The power supplies can be moved by forklift, but the forks must be long enough to extend the entire length of
the base. Take care when lifting so that the underside of the power supplies is not damaged. The customer agrees to
observe and ensure compliance with the following:
 • Thestrapsandotherhandlingequipmentmustcomplywithapplicablelocalstandards,lawsandregulations.
 • Theratedcapacity,designfactor,andefciencyratingoftheliftingsystem,includingthestrapssoldby
Hypertherm, may be affected by wear, misuse, overloading, corrosion, deformation, intentional alteration, age, and
other use conditions. An inspection of the straps by qualified personnel should be conducted before each use.
Worn or damaged straps may not be used, nor may they be altered or modified in any way.
 • All4loopsattheendsofthestrapsmustbesecurelyandproperlyattachedtotheliftingmechanism.
 • Thepowersupplyisanonsymmetricalload;ensurethatananalysisbyaqualiedpersonisperformedproperlyto
balance the load to prevent tipping and overloading of any one strap.
 • Allenclosurepanelsmustbesecurelyfastenedbeforeliftingthepowersupply.
 • Theliftingmechanismmustberatedfortheappropriateweightandbesuitableforthestrapsize.
 • Eachstrapshouldpassthroughall4holesinthebaseofthepowersupplyandshouldnotbetwisted,
constricted, bunched or pinched.
 • Strapsshallnotbeshortenedorlengthenedbyknotting,twisting,chokerhitching,orothermeans.
 • Eachpowersupplyshouldbeliftedslowly,notmorethan203mm(8in.)abovetheoor,toinsurethatthe
weight is evenly distributed.
 • Eachpowersupplyshouldbemovedslowlytopreventsuddenaccelerationanddecelerationwhenmoving.
 • Accesstotheareashouldberestrictedwhenmovingorliftingtopreventinjuryofpersonnelifthepowersupply
shifts or tips.

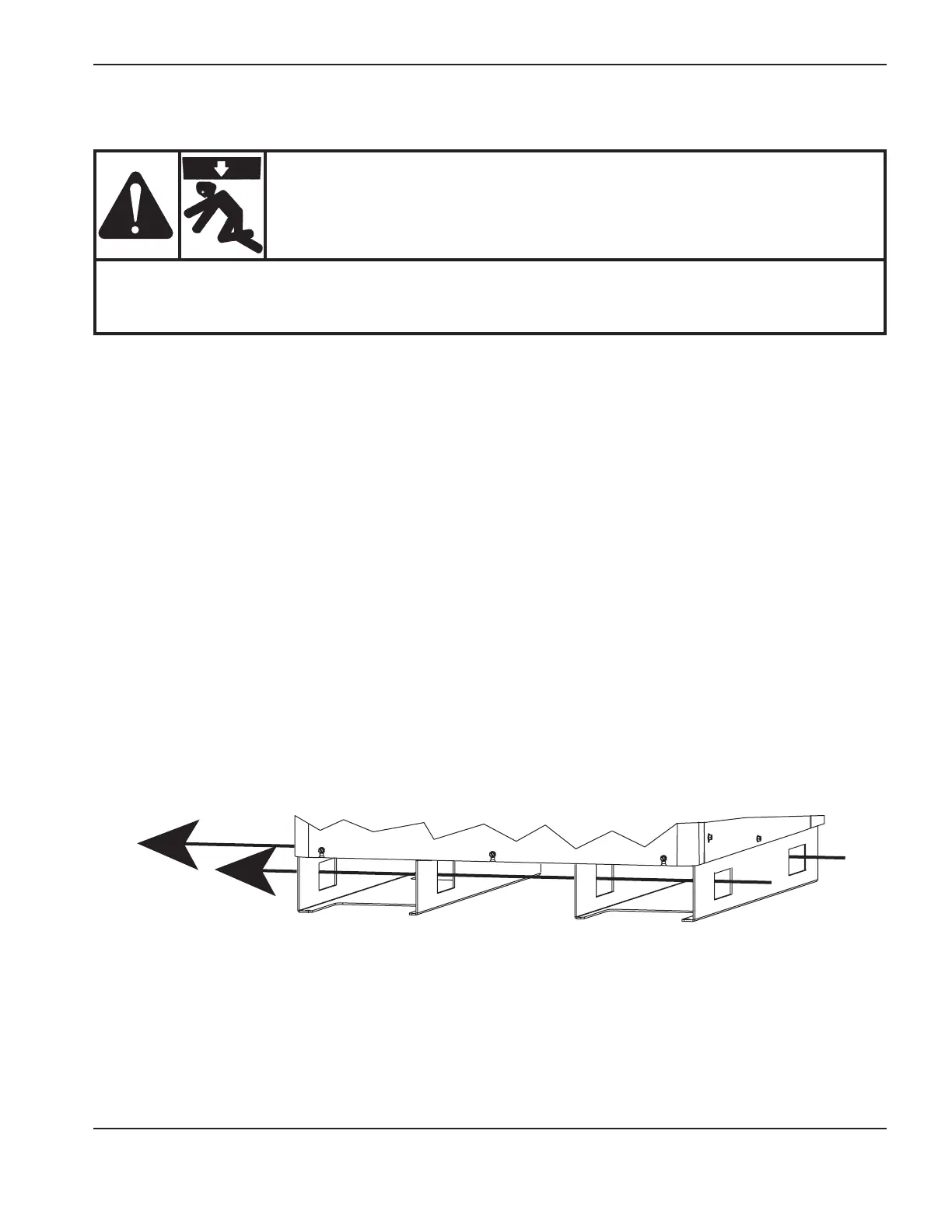

Correct path for lifting straps
DANGER
The HPR800XD power supplies weigh approximately 746 kg (1645 lbs) each. 1 or 2 person manual
pushing or lifting could cause injury. Use appropriate lifting aids and techniques when moving a
power supply
Lifting the power supply
