SpecificationS

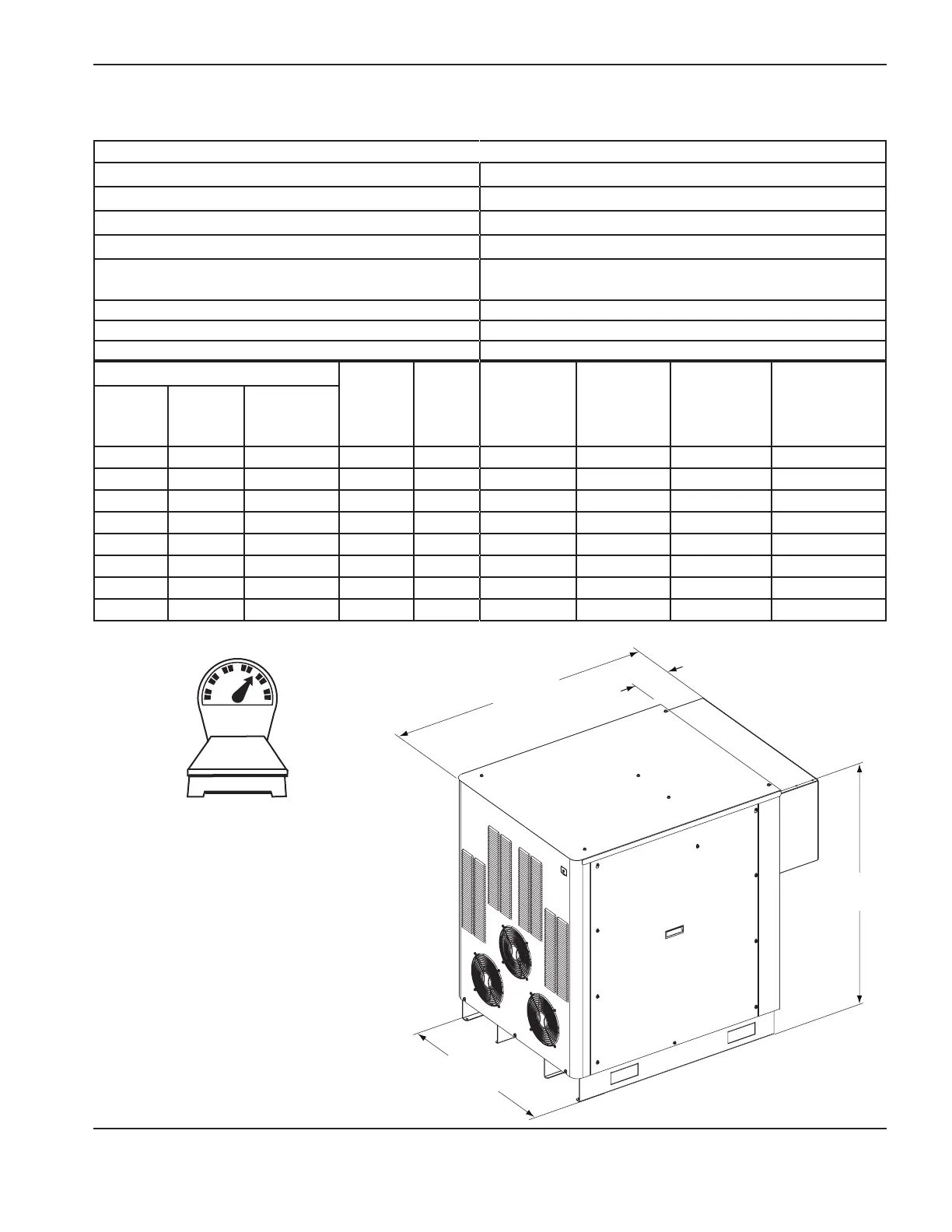

HPR800XD Auto Gas – 806500 2-5
Power supplies
229 mm
9.00 in
1270 mm
50.00 in
1175 mm
46.25 in
870 mm
34.25 in
851 kg
1877 lb
General
Maximum OCV (U
0
) 360 VDC
Maximum output current (I
2
) 400 Amps
Output voltage (U
2
) 50 – 200 VDC
Duty cycle rating (X) 100% @ 80 kw, 40° C (104° F)
Ambient temperature/Duty cycle
Power supplies will operate between -10° C and +40° C
(+14° and 104° F)
Power factor (cosϕ) 0.98 @ 400 ADC output
Cooling Forced air (Class F)
Insulation Class H
Power supply AC
Voltage
(U
1
)
Phase Frequency
(Hz)
Amperage
(I
1
)
Regulatory
approval
Power kVA
(+/- 10%)
(U
1
x I
1
x 1.73)
Primary Primary
with
Hypernet
Secondary
078578 078586 078594 200/208 3 50/60 262/252 CSA 90.6
078579 078587 078595 220 3 50/60 238 CSA 90.6
078580 078588 078596 240 3 60 219 CSA 90.6
078581 078589 078597 380* 3 50/60 138 CCC 90.6
078582 078590 078598 400 3 50/60 131 CE/GOST-R 90.6
078583 078591 078599 440 3 50/60 120 CSA 90.6
078584 078592 078600 480 3 60 110 CSA 90.6
078585 078593 078601 600 3 60 88 CSA 90.6
* The 380 volt CCC regulatory approval only applies to 50 Hz operation
Note: Each power
supply has
the same
dimensions and
weight
(each power supply has the following specifications)

Hypertherm HyPerformance Plasma HPR800XD Specifications

General

Brand	Hypertherm
Model	HyPerformance Plasma HPR800XD
Category	Cutter
Language	English
