Hypertherm HyPerformance Plasma HPR800XD - Placement of the Chiller

InstallatIon
HPR800XD Auto Gas – 806500 3-17
Placement of the chiller
• Placethechillerinanareathatisfreeofexcessivemoisture,hasproperventilation,andisrelativelyclean.
Thecomponents of the plasma system are not intended to be exposed to rain or snow. Allow 1 m (3 ft) of
spaceonall sides of the chiller for ventilation and service.
• Coolingairisdrawninthroughtheside and rear panels and is exhausted through the top of the unit by a
coolingfan.
• Donotplacethecooleronaninclinegreaterthan10°(withthewheelslocked)topreventitfromtoppling.
• Refertothemanualthatcamewithyourchillerforoperationandmaintenanceinformation.

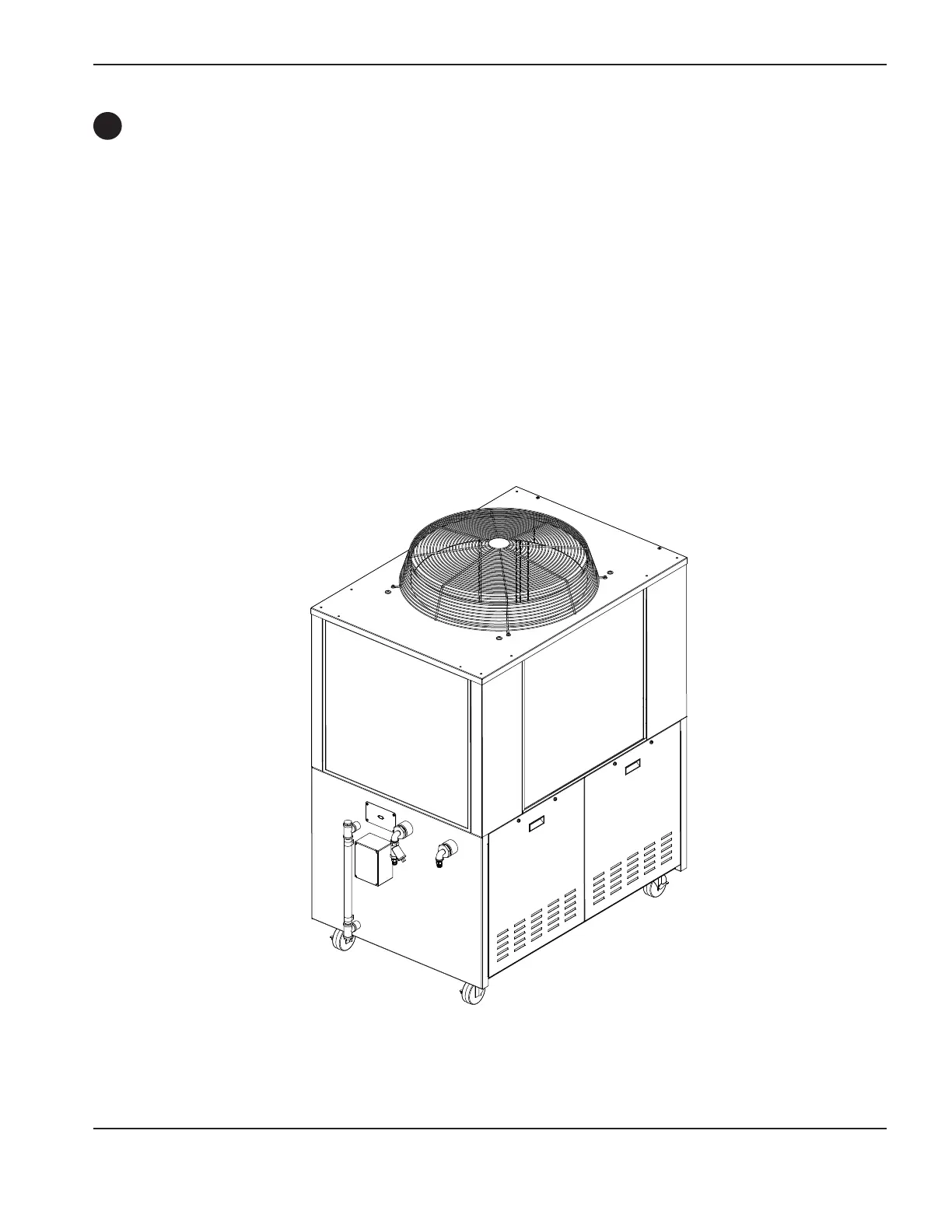

Note: The chiller shown below is made by PolyScience and sold by Hypertherm
D
