InstallatIon
3-30 HPR800XD Auto Gas – 806500

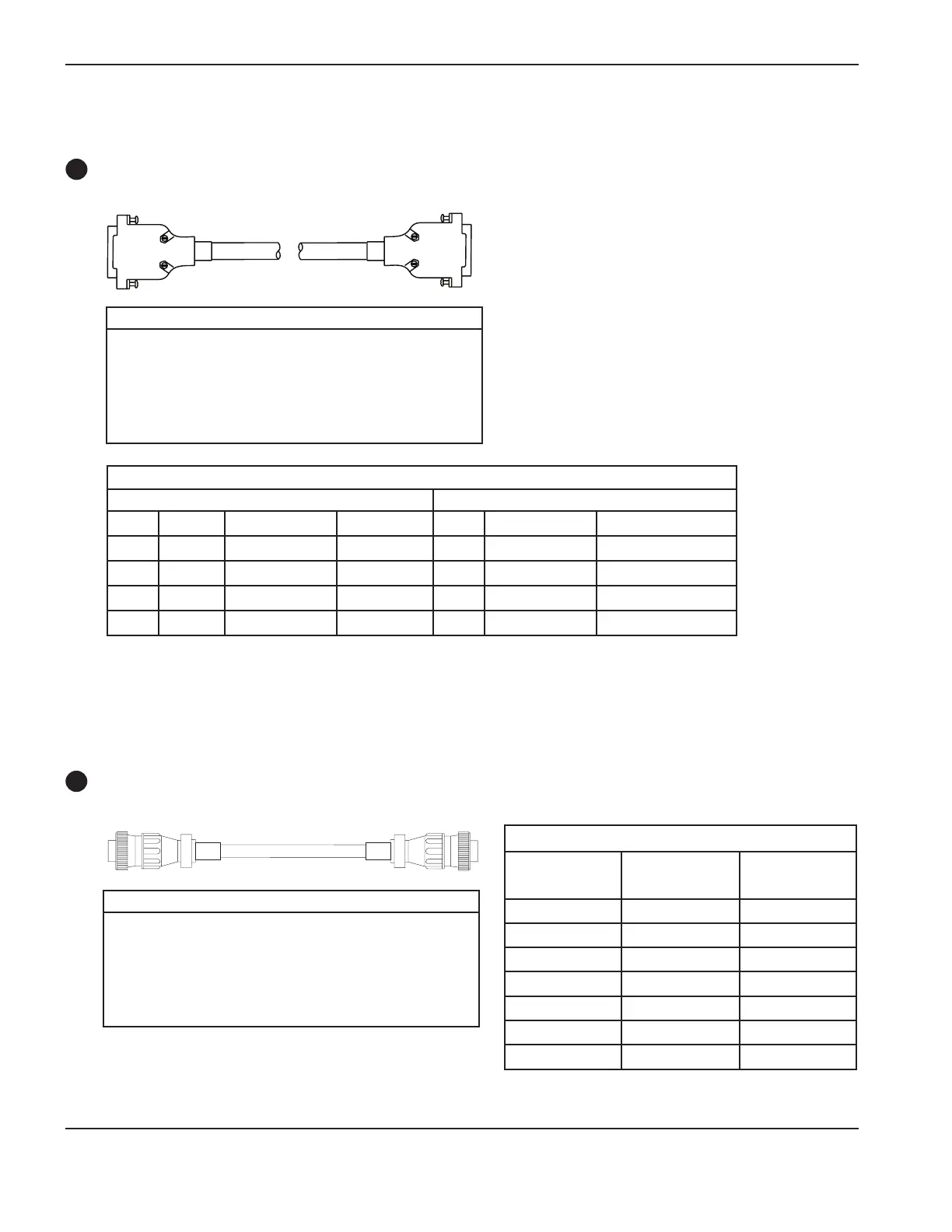

Primary Power supply to selection console cables
Selection console communication cable
Selection console power cable
* Cable numbers 123784 and 123785 are for use with systems that have the gas console mounted on the power supply
Part no. Length Part no. Length
123784* 3 m (10 ft) 123841 20 m (65 ft)
123839 4.5 m (15 ft) 123737 25 m (82 ft)
123963 6 m (20 ft) 123738 35 m (115 ft)
123691 7.5 m (25 ft) 123739 45 m (150 ft)
123840 10 m (35 ft) 123842 60 m (200 ft)
123711 15 m (50 ft) 123843 75 m (250 ft)
Part no. Length Part no. Length
123785* 3 m (10 ft) 123848 20 m (65 ft)
123846 4.5 m (15 ft) 123740 25 m (82 ft)
123964 6 m (20 ft) 123676 35 m (115 ft)
123674 7.5 m (25 ft) 123677 45 m (150 ft)
123847 10 m (35 ft) 123849 60 m (200 ft)
123675 15 m (50 ft) 123850 75 m (250 ft)
Cable signal list – primary power supply to gas console
Power supply end Gas console end
Pin No. Description Pin No.
1 120 VAC-hot 1
2 120 VAC-return 2
3 Ground 3
4 Not used 4
5 Not used 5
6 24 VAC-hot 6
7 24 VAC-return 7
10
End with sockets to
selection console
Cable signal list – primary power supply to selection console (9-pin DSUB connectors)
Power supply end
Selection console
end
Pin No. Wire color Input/Output Description Pin No. Input/Output Function
2 Black Input/Output CAN L 2 Input/Output CAN communication
3 Black Input CAN ground 3 Output Power ground
7 Red Input/Output CAN H 7 Input/Output CAN communication
9 Red Output Not used 9 Output Not used
