Hypertherm HyPerformance Plasma HPR800XD User Manual

Maintenance
5-40 HPR800XD Auto Gas – 806500

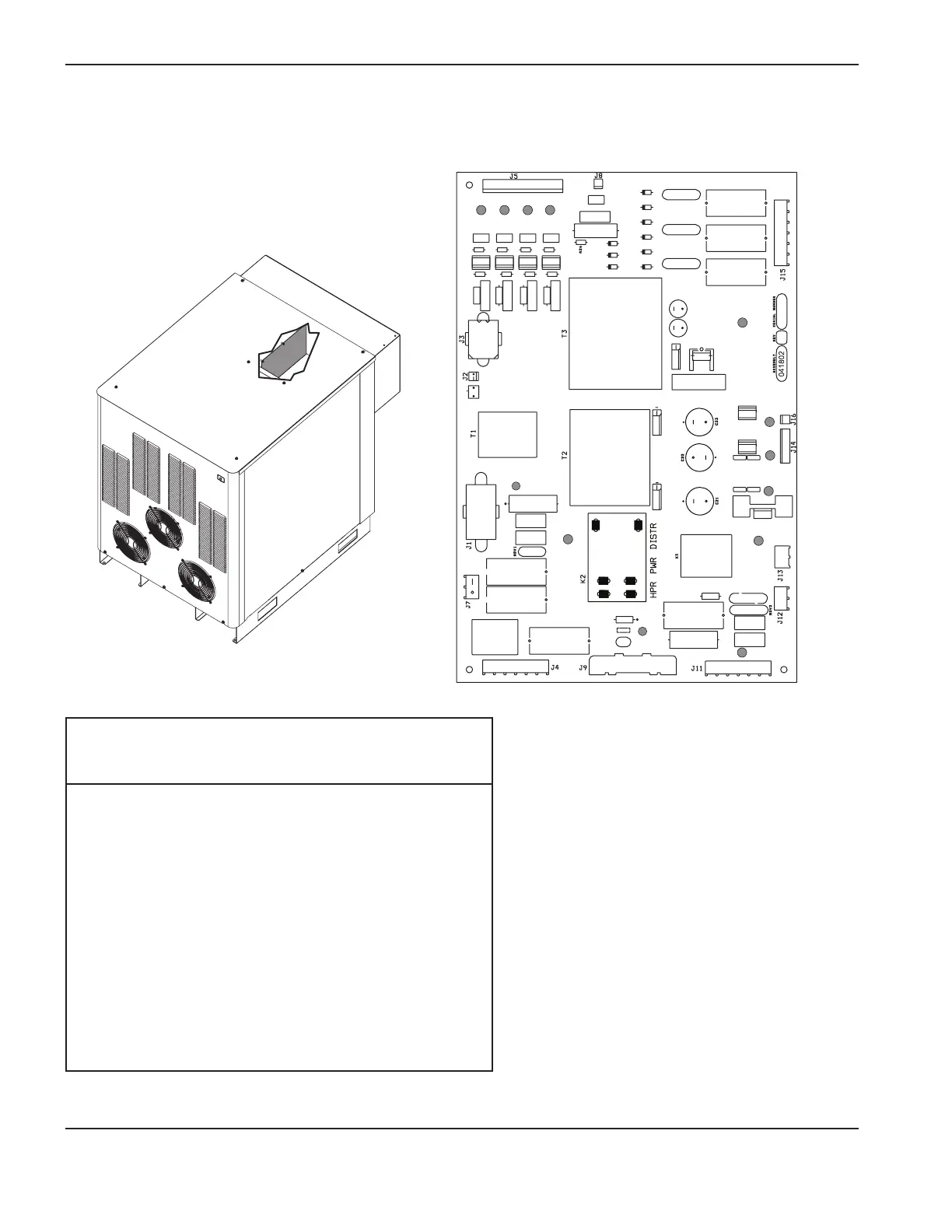

Power supply power distribution board PCB2
D23
D12
D26
D31
D32
D33
D3
D25
D1 D7 D5 D2
D35
Power distribution PC board LED list
LED Output Color
D1 Contactor Red
D2 Pilot arc relay Red
D3 120 VAC (switched) Green
D5 HF ignition Red
D7 Surge select Red
D12 24 VAC (switched) Green
D23 240 VAC (switched) Green
D25
+
24 VDC Red
D26 Pump motor Green
D31
+
5 VDC Red
D32
–
15 VDC Red
D33
+
15 VDC Red
D35 24 VAC Green
