InstallatIon

HPR800XD Auto Gas – 806500 3-39

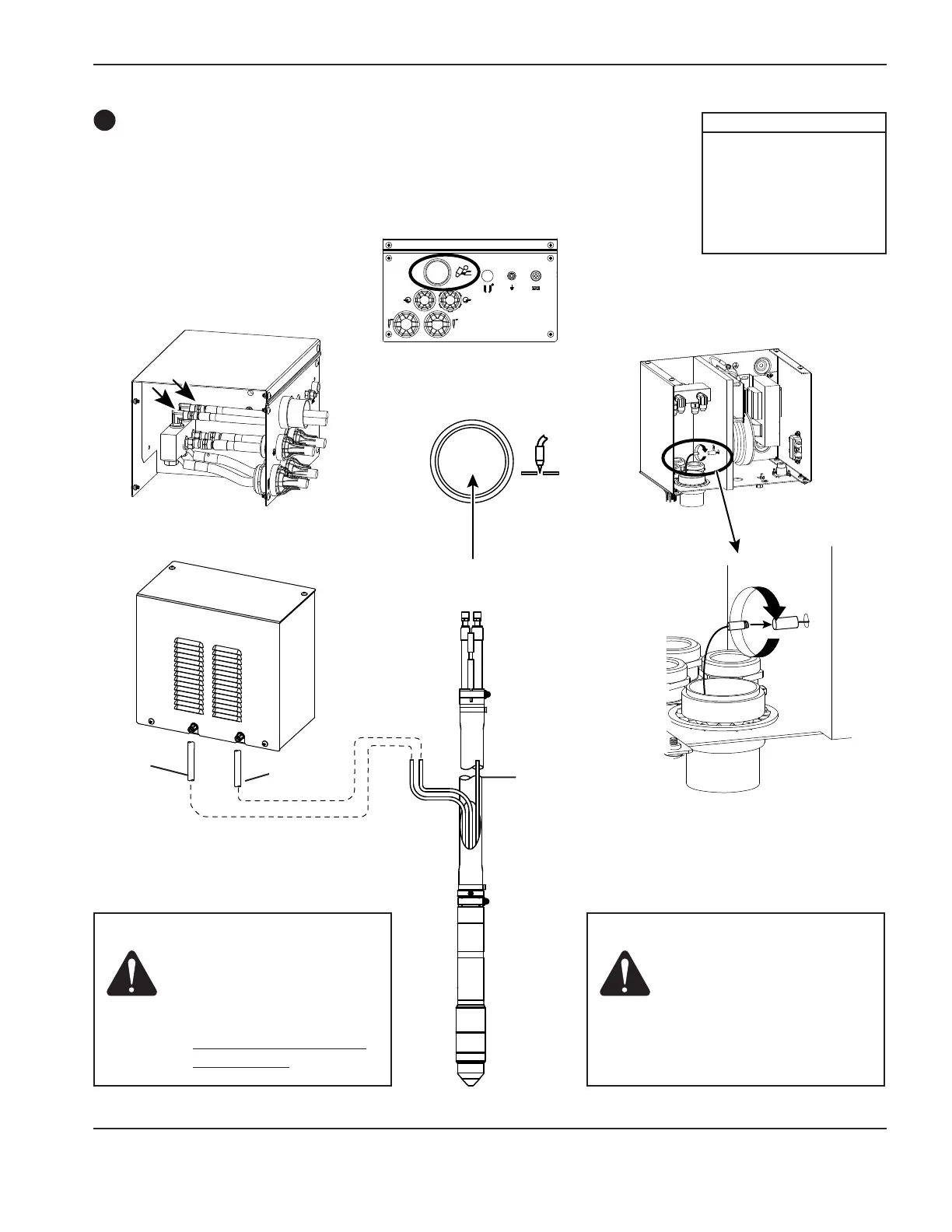

Torch lead assembly

Plasma-gas vent hose

(white)

Blue

Black

Part no. Length

228291 2 m (6 ft)

228292 3 m (10 ft)

228293 4.5 m (15 ft)

228294 6 m (20 ft)

228295 7.5 m (25 ft)

228296 10 m (35 ft)

228297 15 m (50 ft)

Caution:

The length of the hoses

from the torch to the

metering console are

critical to cut quality

and consumable life.

Do not alter the length

of the hoses.

Caution: Locate the exposed end

of the plasma-gas vent

hose away from sparks

caused by piercing

to avoid ignition and

possible damage to the

torch leads.

Note: A 20 m (65 ft) torch

lead is not available for

HPR800XD systems
