Hypertherm MAX200 User Manual

MAX200 Instruction Manual d-3
15
APPENDIX D
020611 (100A Air, H35)
020616 (100A O
2
)
020689 (40A Air)
Retaining
Cap
020915

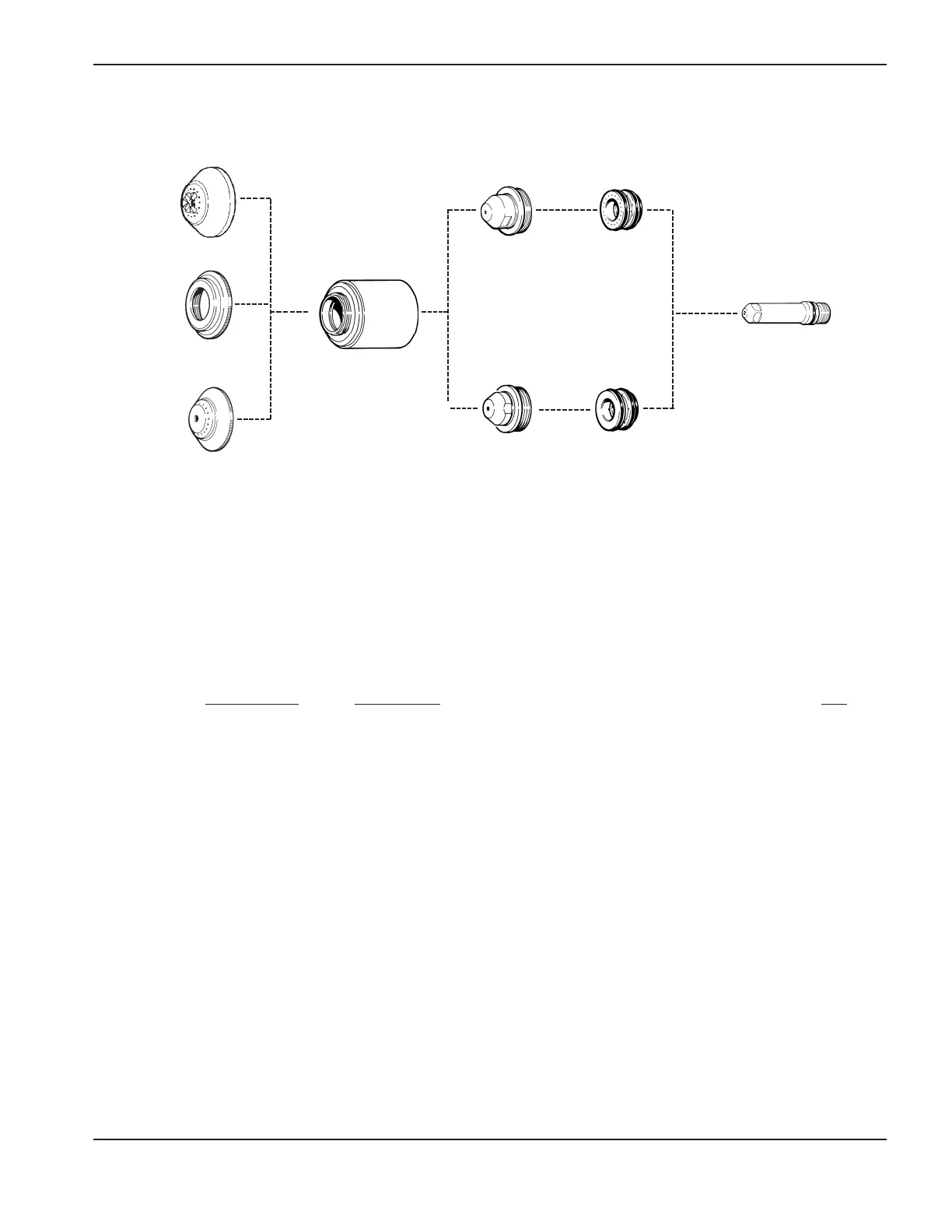

Figure d-1 PAC200T (65°) Cutting Trigger Torch Consumable Parts
020605 (200A O
2
)
020608 (200A Air, N
2
, H35)
Nozzle
020604 (O
2
)
020607 (Air, N
2
, H35)
Swirl Ring
020613 (40A Air)
020617 (100A O
2
)
020607 (Air, N
2
, H35)
020919 (100A)
020920 (200A H35 - Stnlss only)
020918 (200A)
Shield
Electrode
220021 (Air, O
2
)
020415 (N
2
, H35)
120547 (100A Air, O
2
)
020917 (40A)
Consumable Parts Kit 028750
Part Number Description Qty
028750 Parts Kit: PAC200T
001067 Box:Gray Plastic 1
015015 Adapter:1/4NPT X #6 Male 90 Brass 1
015193 Cap:#6 Brass 1
220021 Electrode:MAX200 Air/Oxy 5
020415 Electrode:MAX200 N2/H35 5
020918 Shield:PAC200T Hand Torch 200A 5
020604 Swirl Ring:MAX200 Oxy 1
020605 Nozzle:MAX200 .082 200A Oxy 5
020607 Swirl Ring:MAX200 Air/N2/H35 1
020608 Nozzle:MX200 .086 200A Air/N2 5
027055 Lubricant:Silicone 1/4-Oz Tube 1
027194 Nozzle Wrench:MAX200/HT2000 1
044027 O-Ring:BUNA 70DURO 1.301X.070 2
027347 Tool:Water Tube Replacement 1
