i-CAT FLX Installation Manual
032-0330-EN Rev K
3.
3
3/32

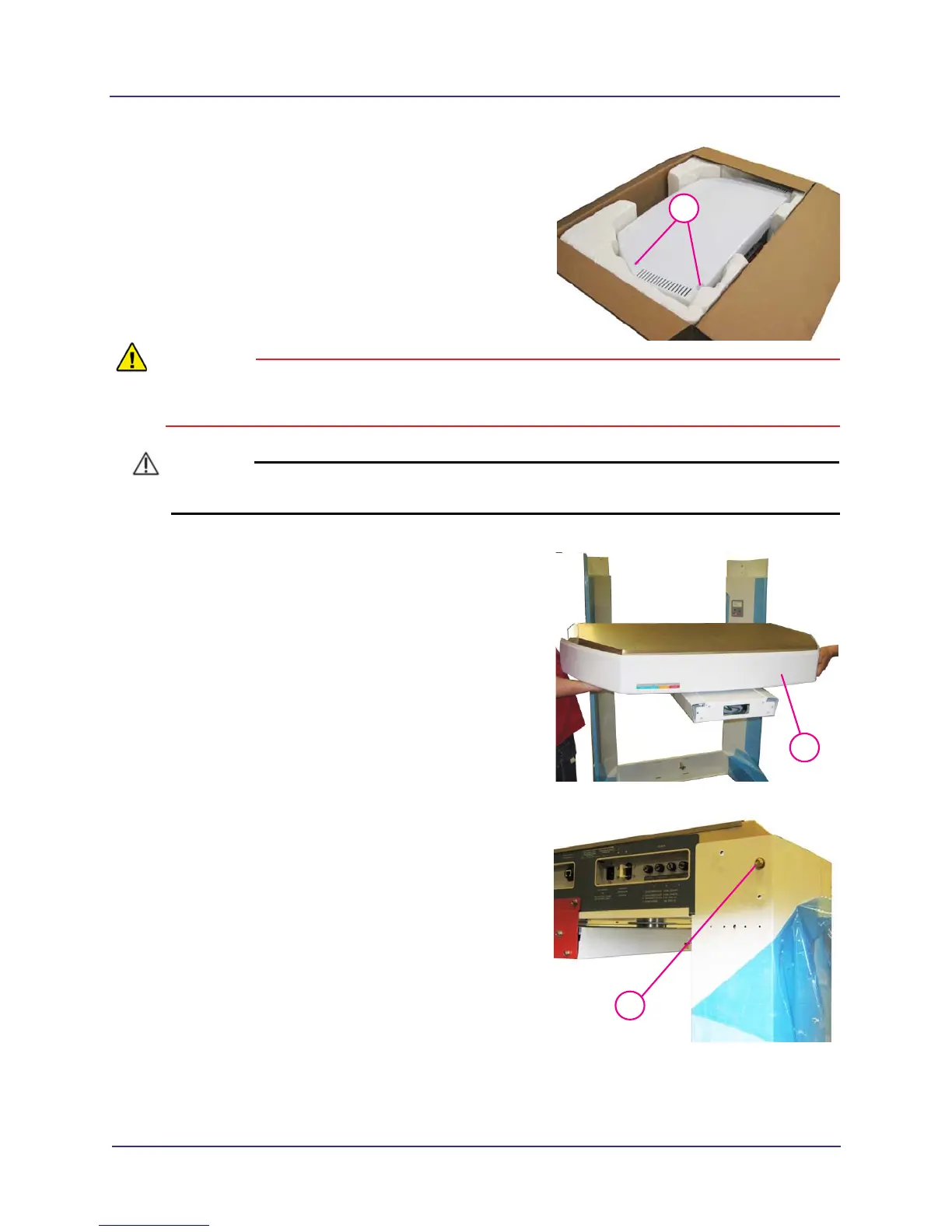

Remove both top covers (six mounting screws).
WARNING
This scanner requires a two person lift. Failure to comply may cause bodily injury. Two adults are
required to assemble this scanner.
CAUTIONCAUTION
Use extreme care not to scratch overhead assembly when mounting scanner onto leg assemblies.
4.
4
With an assistant, lift overhead into place on top of
leg assemblies.
5.
5
Ensure the pins on rear of the overhead are seated
into the holes on leg assemblies.
