2-4

i-CAT FLX Installation Manual

032-0330-EN Rev K

5/32

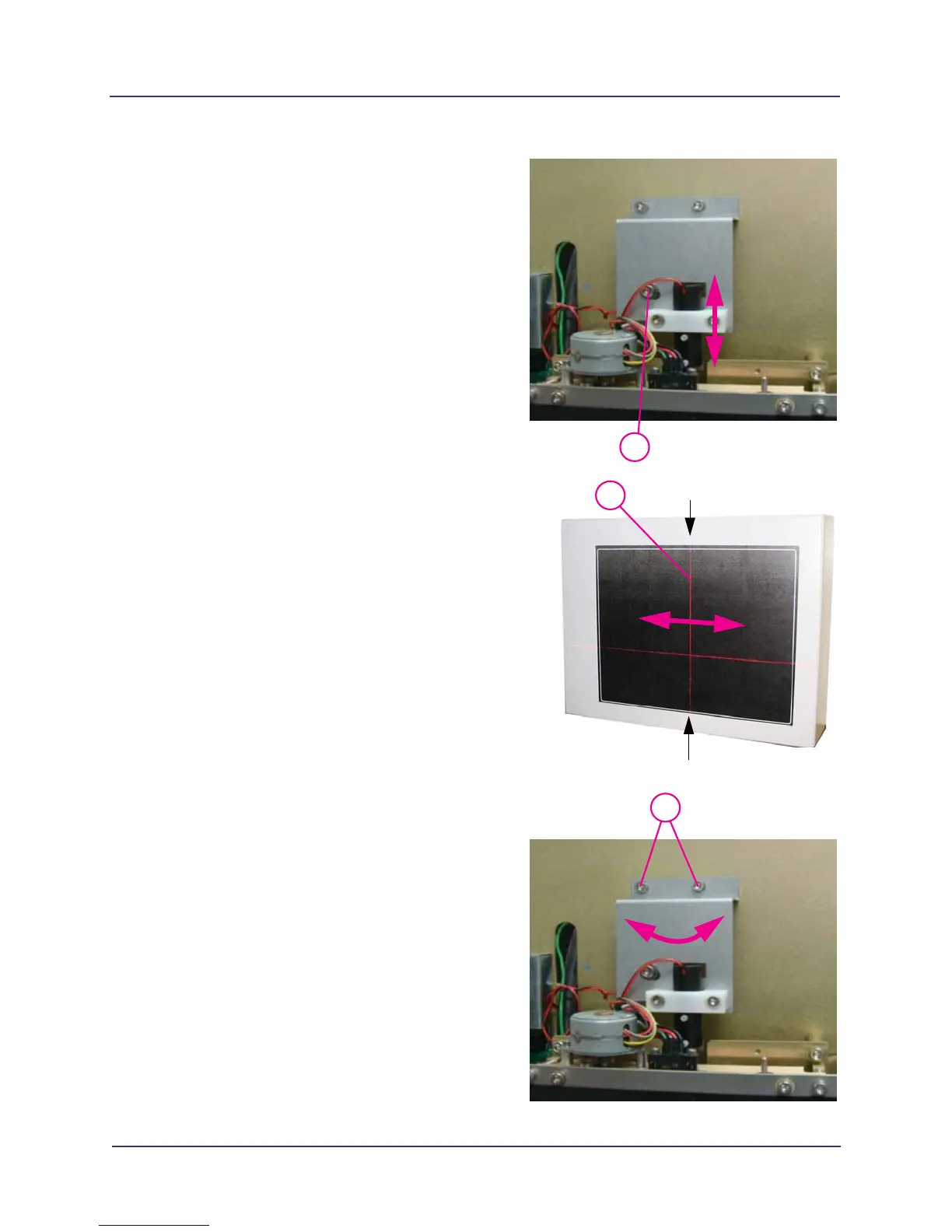

To move horizontal laser line up/down, turn

adjustment screw (shown):

• Clockwise - moves line up

• Counter-clockwise - moves line down

Vertical Line Adjustment:

4. Check position of vertical crosshair line with

panel cover notches.

NOTCH

5/32

To move vertical laser line forward/backward,

loosen the two mounting screws (shown). The

bracket pivots on the center mounting screw

which moves the vertical laser line.

6. Tighten both screws when properly aligned.
