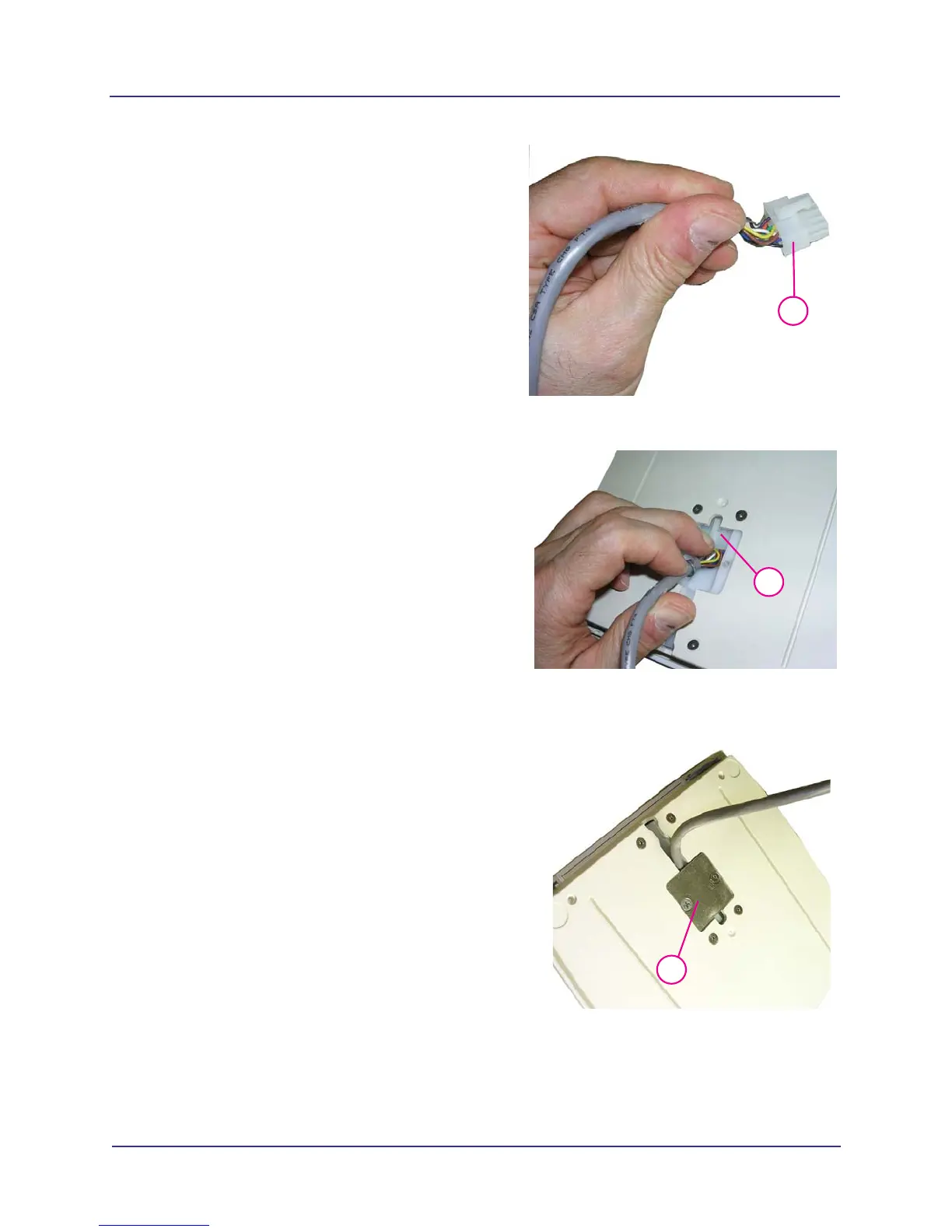

A-5
Wall Mounting Operator Control Box
032-0330-EN Rev K
6.
6
Protect wires and plug by wrapping them in
electrical tape prior to feeding through wall.
The plug requires at least a 1” [25mm] diameter
hole.
The wall hole location should be approximately
1” [25mm] below the top of the operator control
box location.
7.
7
Remove the protective tape from plug after
feeding through wall.
Connect plug to connector. Ensure plug is
properly latched.
8.
8
Replace cable connector cover plate. Do not
push cable into wire channel.
To Next Page
