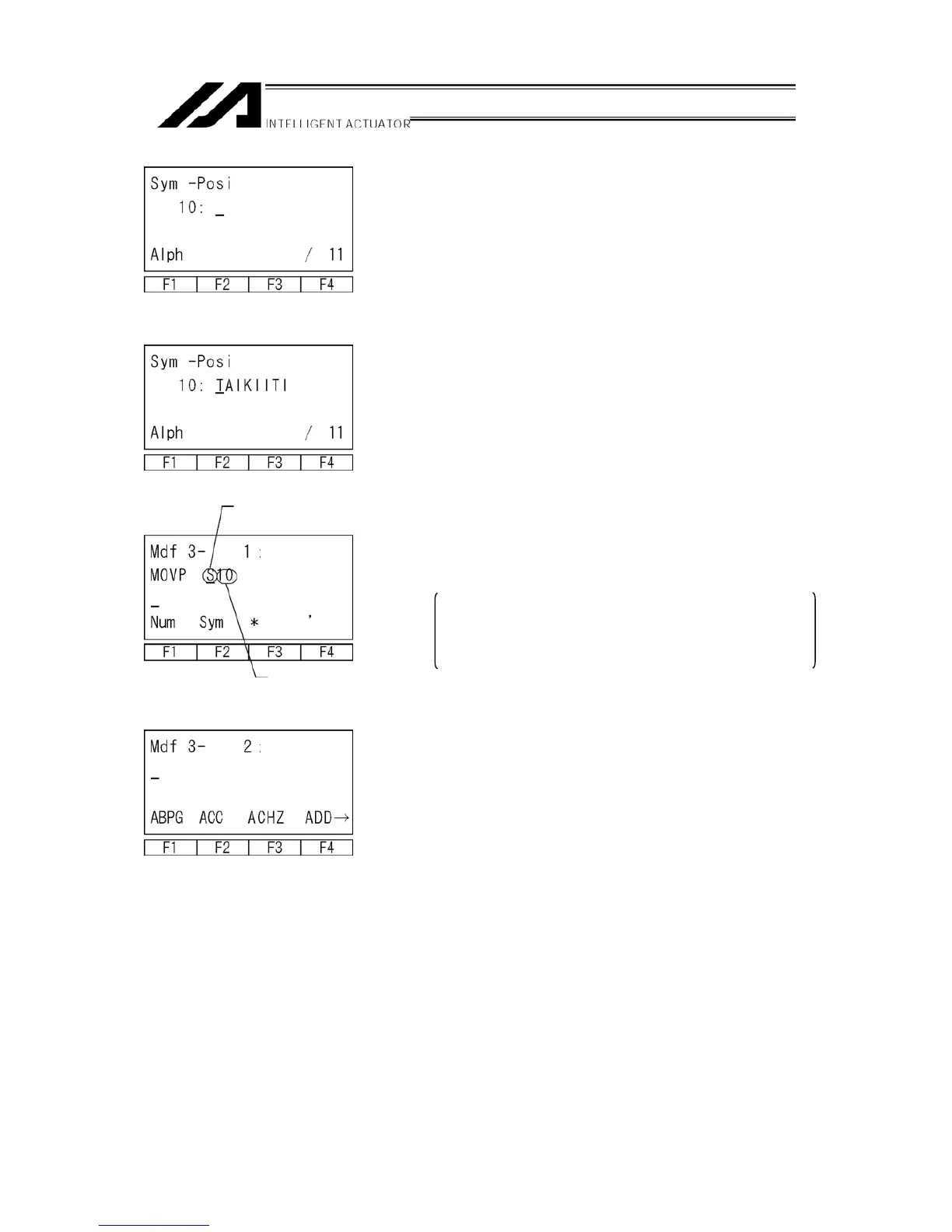

The 10 keys become alphabet inputs. Input
“TAIKIITI.”
For the input procedure, please refer to the section
“13. Symbol Edit.”
Transmit the symbol data to the controller by
pressing the WRT key. Return to the edit screen.
The teaching pendant can’t display symbols as
inputs. In this case, display “S10” instead of
“TAIKIITI.”
In the state where the cursor is located in the
symbolized section, if F2 (Sym) key is chosen, it will
move to the symbol edit screen. The symbol can
then be changed.
Transmit the data of this program step to the
controller by pressing the WRT key.
The letter, S indicates
symbol is used.
Definition value o
To Next Page
