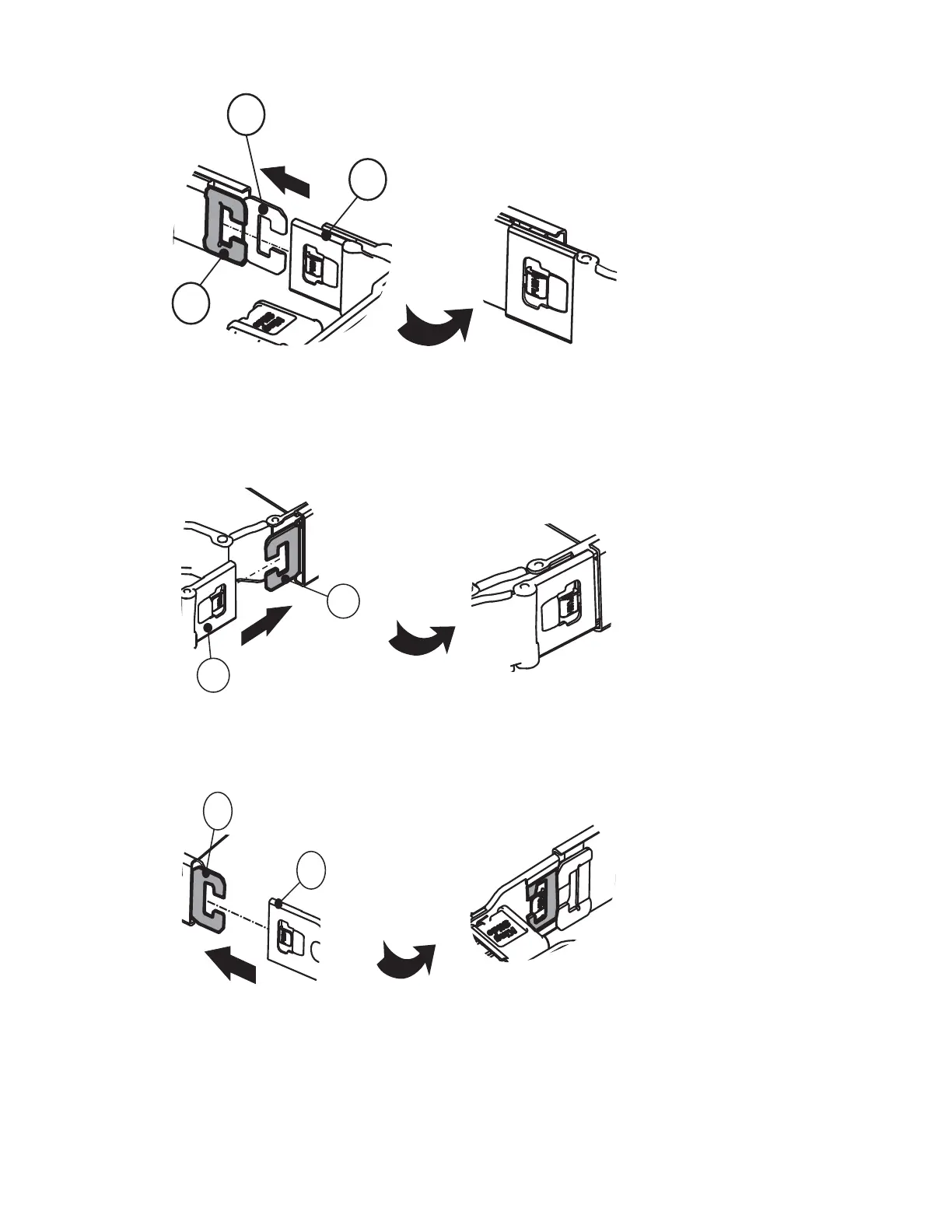

Figure 38. Installing inner CMA arm connector on inner rail connector
4. Slide the outer CMA arm connector (C) onto the lower right outer rail connector (D) as shown in the
following gure.
D
C
Figure 39. Installing outer CMA arm connector on outer rail connector
5. Slide the CMA body connector (E) onto the lower left CMA body rail (F) as shown in the following gure.
F
E
Figure 40. Installing CMA body connector (E) on the left CMA body rail
