Installing the Cable Management Arm
To install the Cable Management Arm, complete the following steps:
Note: Do not attach the power cord or other cables to the 7226 Storage Enclosure until you are instructed to do so. The 7226
Storage Enclosure and the computer system that it is attached to will be powered off before the cables are attached.
1. Ensure that the slide rails are correctly installed. See Installing the Slide Rails.
2. The cable-management arm can be installed on either side of the 7226 Storage Enclosure. The following figure shows it
being installed on the left side. To install the cable-management arm on the right side, follow the instructions and install
the hardware on the opposite side. Connect the end of the support arm with the "UP" designation 1 to the same slide
rail to which you plan to attach the cable-management arm so that you can swing the other end of the support arm 2
toward the rack.

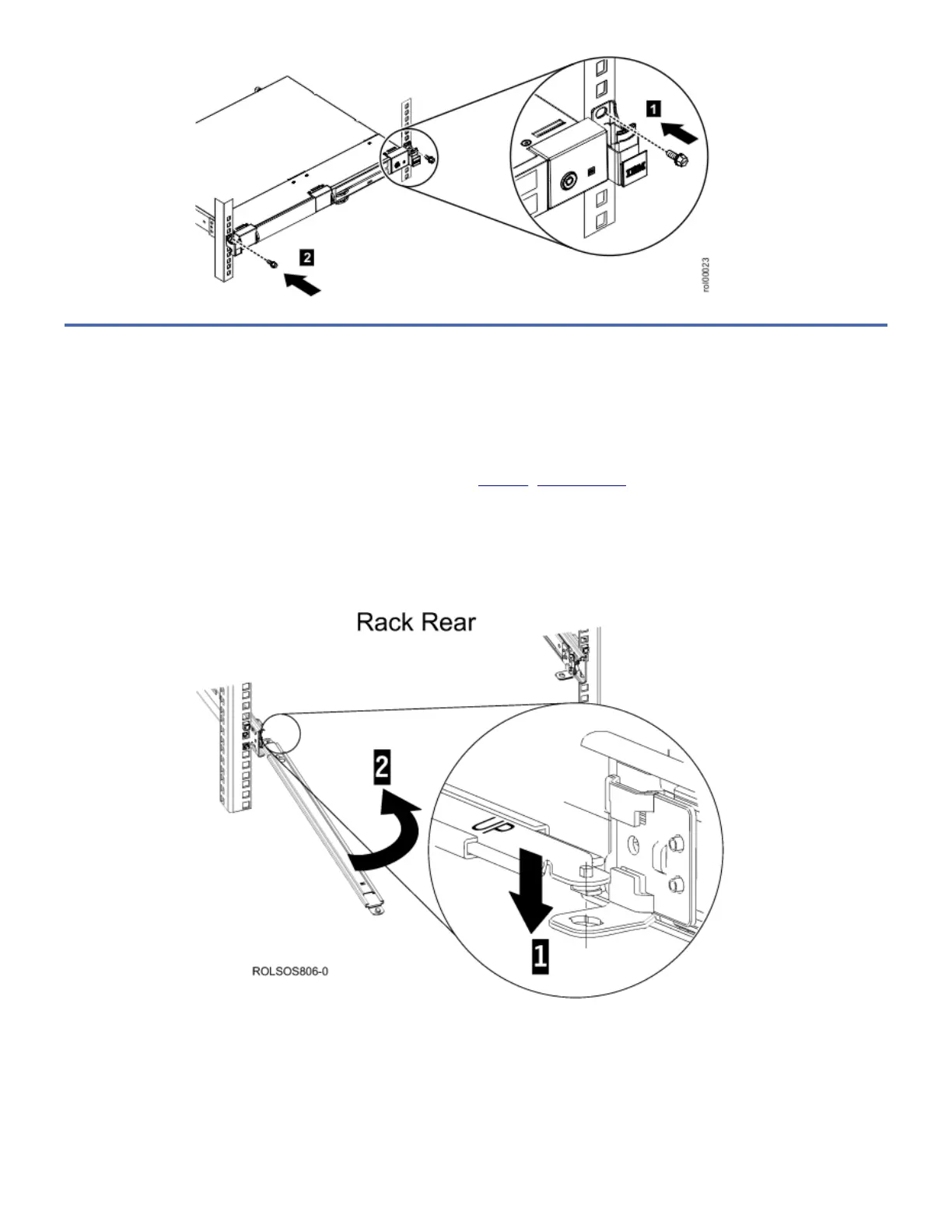

Figure 1. Support arm connection
3. Install the L-shaped cable-management stop bracket 1 on the unattached end of the support arm (the end with the
"DOWN" designation). Turn the bracket 2 to secure it to the support arm.
Figure 2. Cable-management stop bracket secured to the support arm
