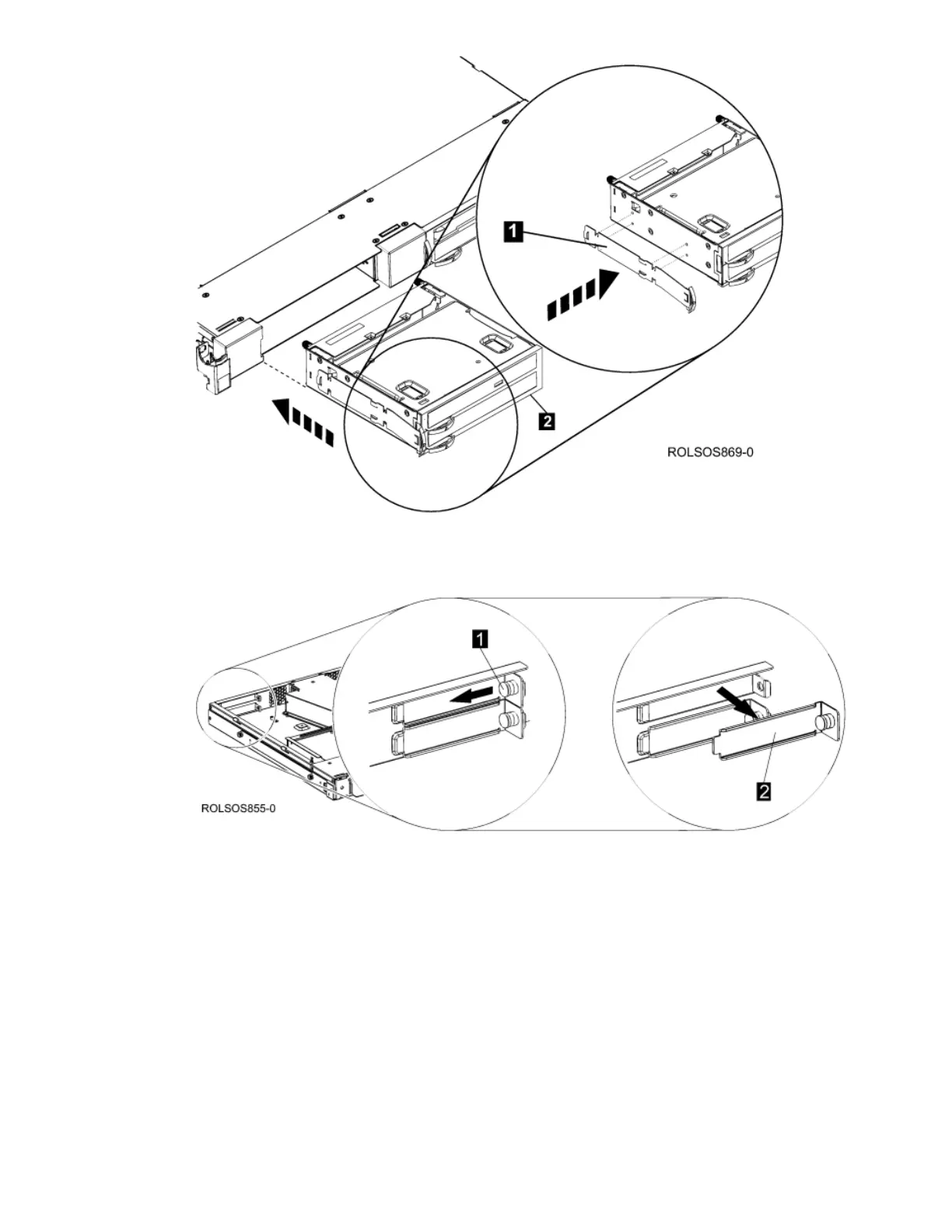

7. To remove the Blank Back Plate, pull the back plate pin 1 to release the Blank Back Plate, and remove the Blank Back

Plate 2 from the rear panel slot.

Figure 4. Remove Blank Back Plate

8. To Insert the SAS Interface Assembly or USB Interface Assembly into the rear panel slot, insert the tab on the back

plate into the indent in the back panel opening 1, pull the pin on the back plate 2 and push the back plate into the

back panel opening 3 until it clicks into place.

Figure 5. Insert Interface Assembly Back Plate

40 IBM 7226 Model 1U3 Storage Device Enclosure
