9. Attach the Interface Assembly 1 to the re-driver card connector or converter card connector. Attach the power
connector 2. Ensure that the SAS Interface Assembly is routed under the cross bar 3.

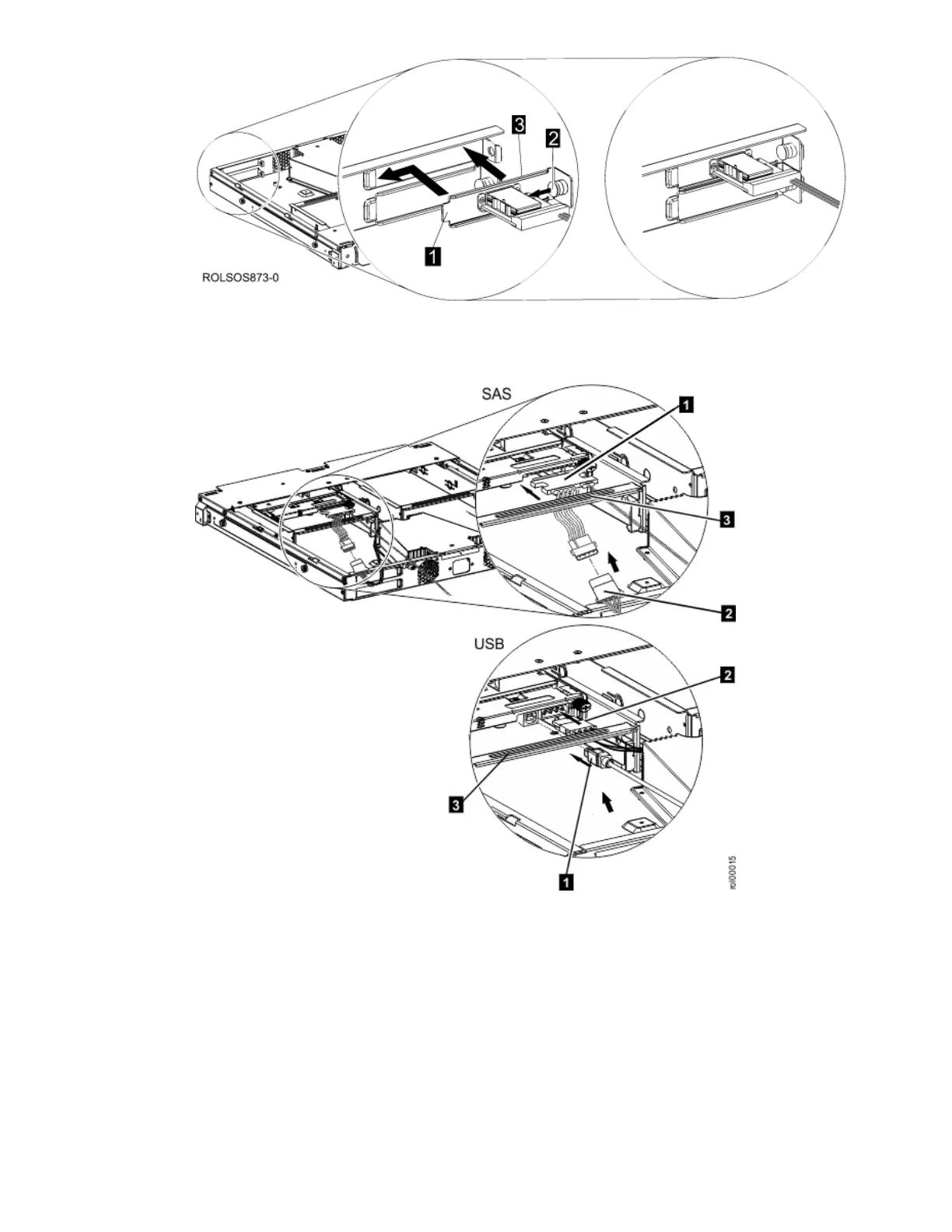

Figure 6. Connect Interface Assembly and power connector
10. Remove the Slim Blank Front Cover if it is installed. Push the latch 1 up toward the Slim Blank and begin to pull the
blank out of the Slim Tray. Grasp the Slim Blank 2 and slide it out of the enclosure.
Figure 7. Remove Slim Blank Front Cover
