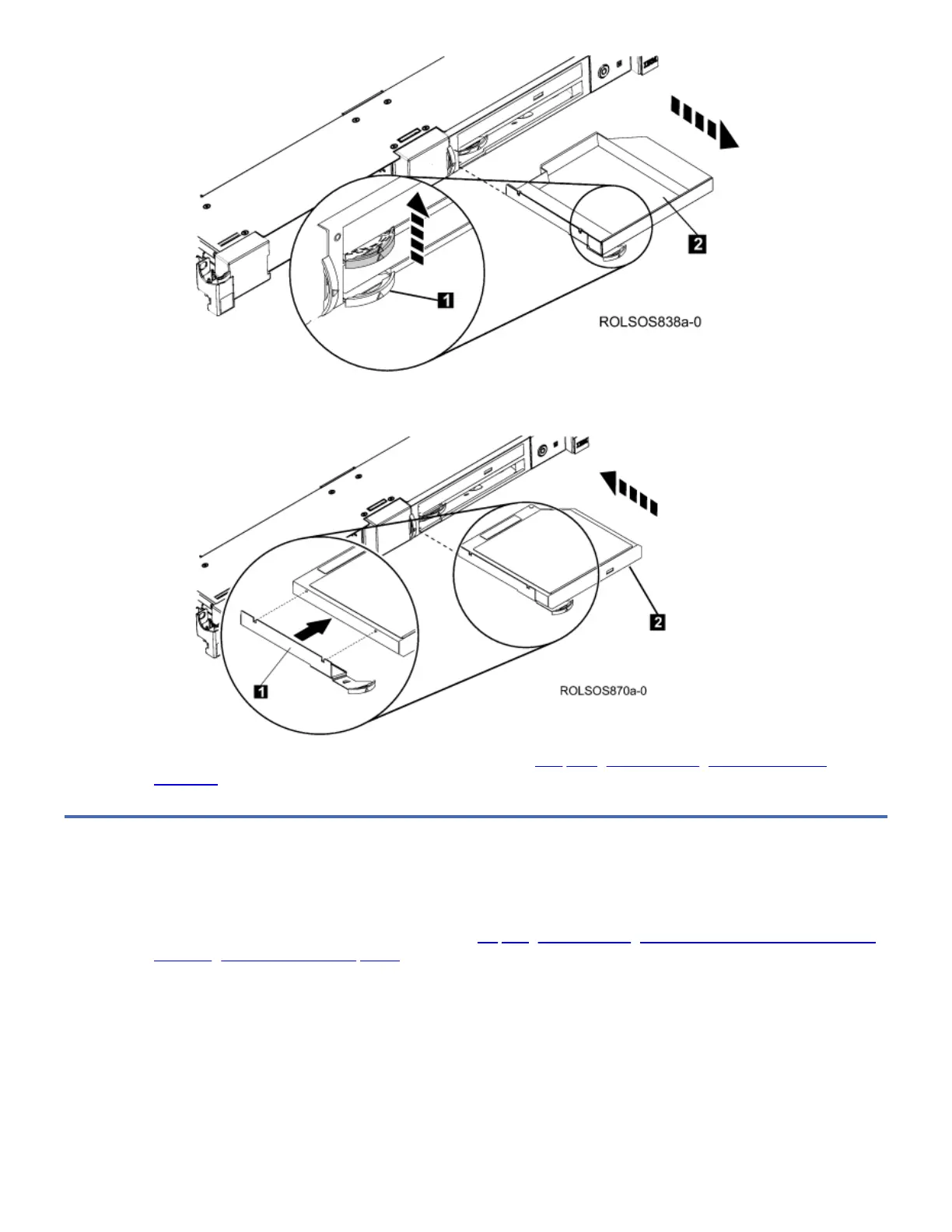

11. Attach the Slim Drive Latch 1 to the new DVD Drive 2 and insert both into the slim drive bay until they click into place.
Figure 8. Inserting a DVD
12. Complete the 7226 Storage Enclosure Service Procedure. See Completing the 7226 Storage Enclosure Service
Procedure for the correct procedure.
Replacing a Tape Drive Feature or a Removable Disk Drive
Feature
1. Prepare the 7226 Storage Enclosure for Service. See Preparing the 7226 Storage Enclosure for Removal or Installation
of a Storage Device or Other Component for the correct procedure.
Note: The 7226 Storage Enclosure does not need to be extended from the rack for this procedure.
2. Determine the location for the Drive Feature to be replaced.
3. To remove the drive, push the drive latch 1 toward the drive and begin to pull the drive out of the enclosure. Grasp the
drive 2 and pull the assembly out of the drive bay. Disconnect the cables 3 from the drive assembly.
Figure 1. Removing a Drive
