5. Place the Slim Drive Tray assembly on an ESD protected work surface.
6. Locate the re-driver and converter cards on the rear of the Slim Drive Tray Assembly. There may be one or two cards.
Locate the card to be replaced.
7. To remove the card, loosen the thumbscrews 1. Slide the card out of the rear of the Slim tray 2.

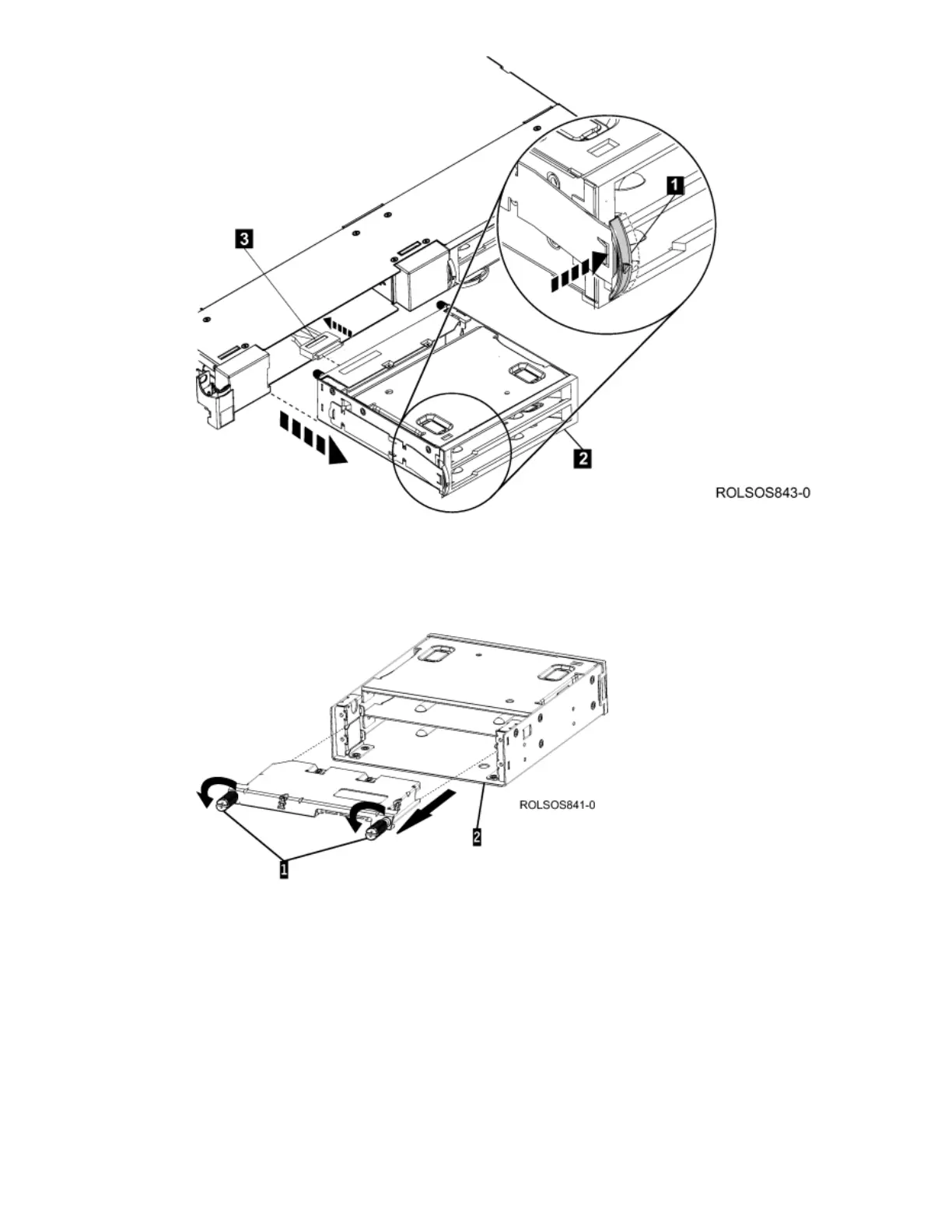

Figure 3. Remove the re-driver or converter card
8. To install the new re-driver or converter card, align the card slides with the slots on the rear of the slim drive tray. Slide
the card into position in the rear of the Slim tray 1. Tighten the thumbscrews 2.
Figure 4. Install the re-driver or converter card
IBM 7226 Model 1U3 Storage Device Enclosure 49

IBM 7226 Specifications

General

Model	IBM 7226
Type	Storage Enclosure
Form Factor	Rack-mountable
Drive Bays	12
Drive Type	Hot-swappable
Interface	SAS
Compatibility	IBM Power Systems
Supported Drives	SAS, SATA
Host Interface	6 Gbps
RAID Levels	0, 5, 6, 10
Power Supply	Redundant
