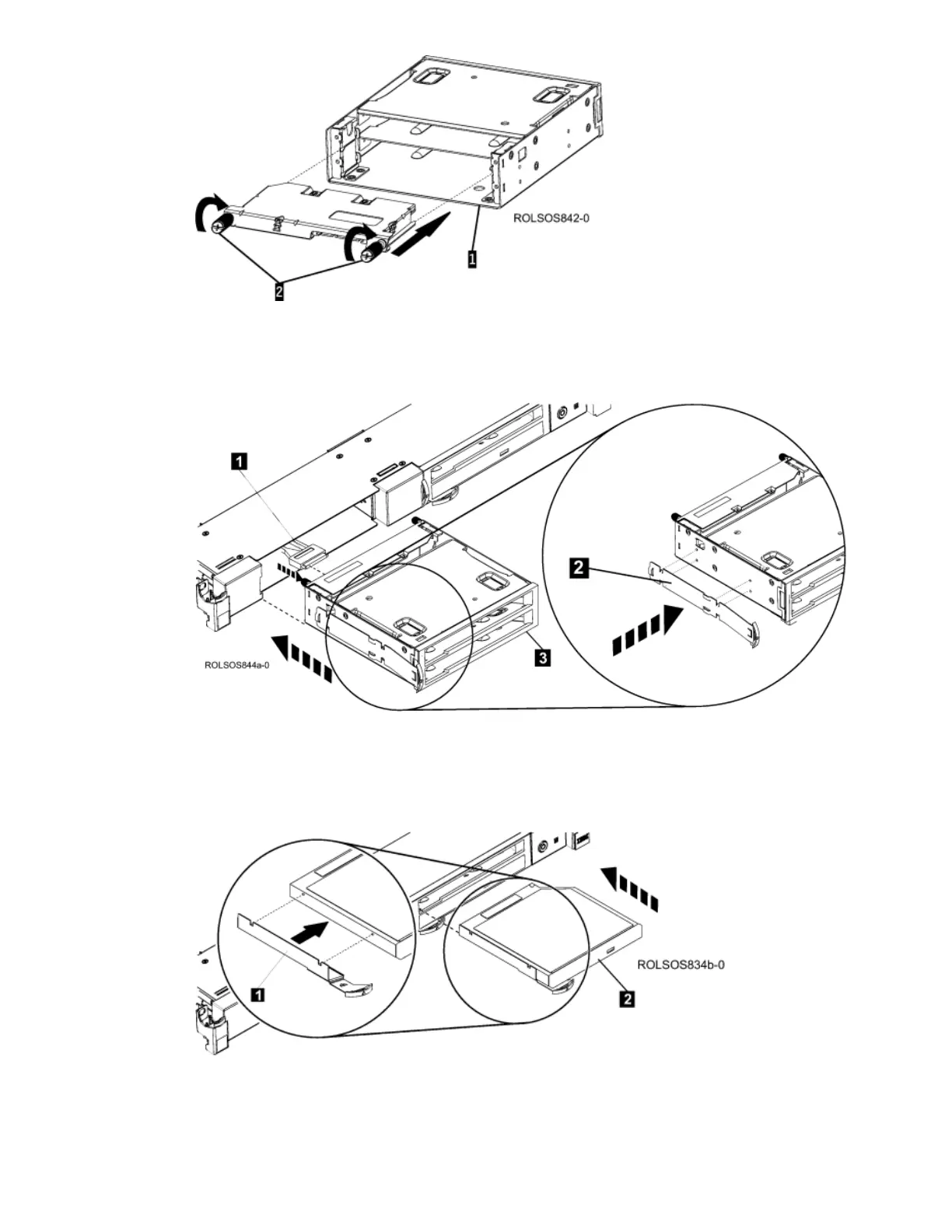

9. Attach the connectors 1 to the Slim Tray assembly. Attach the Drive Latch 2 to the Slim Tray Assembly 3 and insert
both into the drive bay until they click into place.
Note: Only one cable is shown. More cables may be need to be attached.
Figure 5. Install Slim Tray Assembly
10. Determine the location to install the DVD drive. Attach the Slim Drive Latch 1 to the DVD Drive 2 and insert both into
the slim drive bay until they click into place.
Note: The connector on the back of the DVD drive must attach securely to the SATA/SAS re-driver card or SATA/USB
converter card.
Figure 6. Install DVD Drive
11. Attach the power cord and other cables to the rear of the enclosure.
12. Power on the 7226 storage enclosure.
13. Refer to your system manuals to verify installation.
50 IBM 7226 Model 1U3 Storage Device Enclosure

IBM 7226 Specifications

General

Model	IBM 7226
Type	Storage Enclosure
Form Factor	Rack-mountable
Drive Bays	12
Drive Type	Hot-swappable
Interface	SAS
Compatibility	IBM Power Systems
Supported Drives	SAS, SATA
Host Interface	6 Gbps
RAID Levels	0, 5, 6, 10
Power Supply	Redundant
