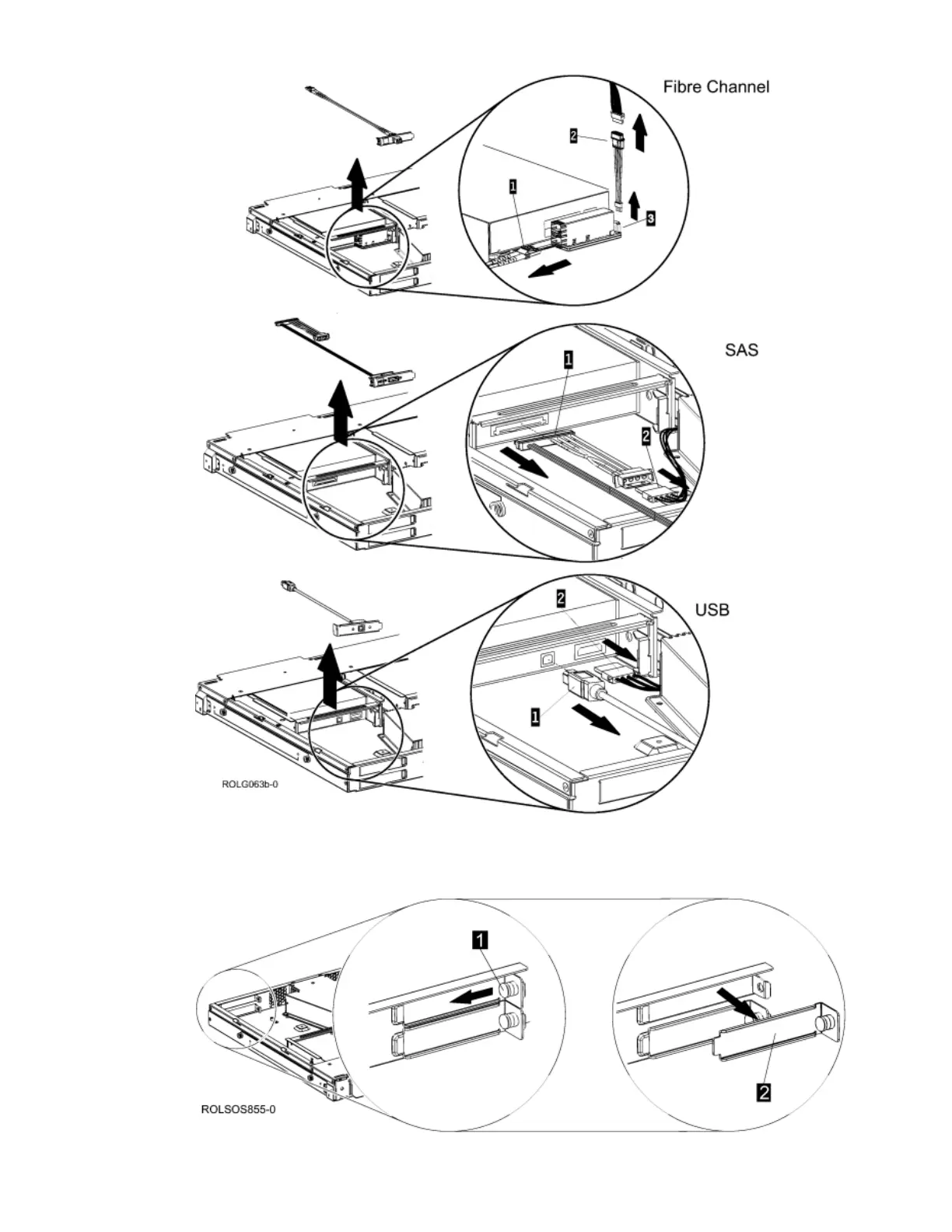

Figure 7. Remove Interface Assembly

10. Note the locations of the Blank Back Plates to be removed from the new Enclosure FRU. To remove a Blank Back Plate,

pull the back plate pin 1 to release the Blank Back Plate, and remove the Blank Back Plate 2 from the rear panel slot.

Figure 8. Remove Blank Back Plate

58 IBM 7226 Model 1U3 Storage Device Enclosure
