IBM System x3550 M4 Installation And Service Guide

9. Connect the signal cables to the SAS/SATA adapter:
a. ServeRAID H1110 adapter: Take the signal cable that is attached to the
drive backplane for drive bays 0 through 3 and connect it to the SAS/SATA
connector on the ServeRAID adapter.

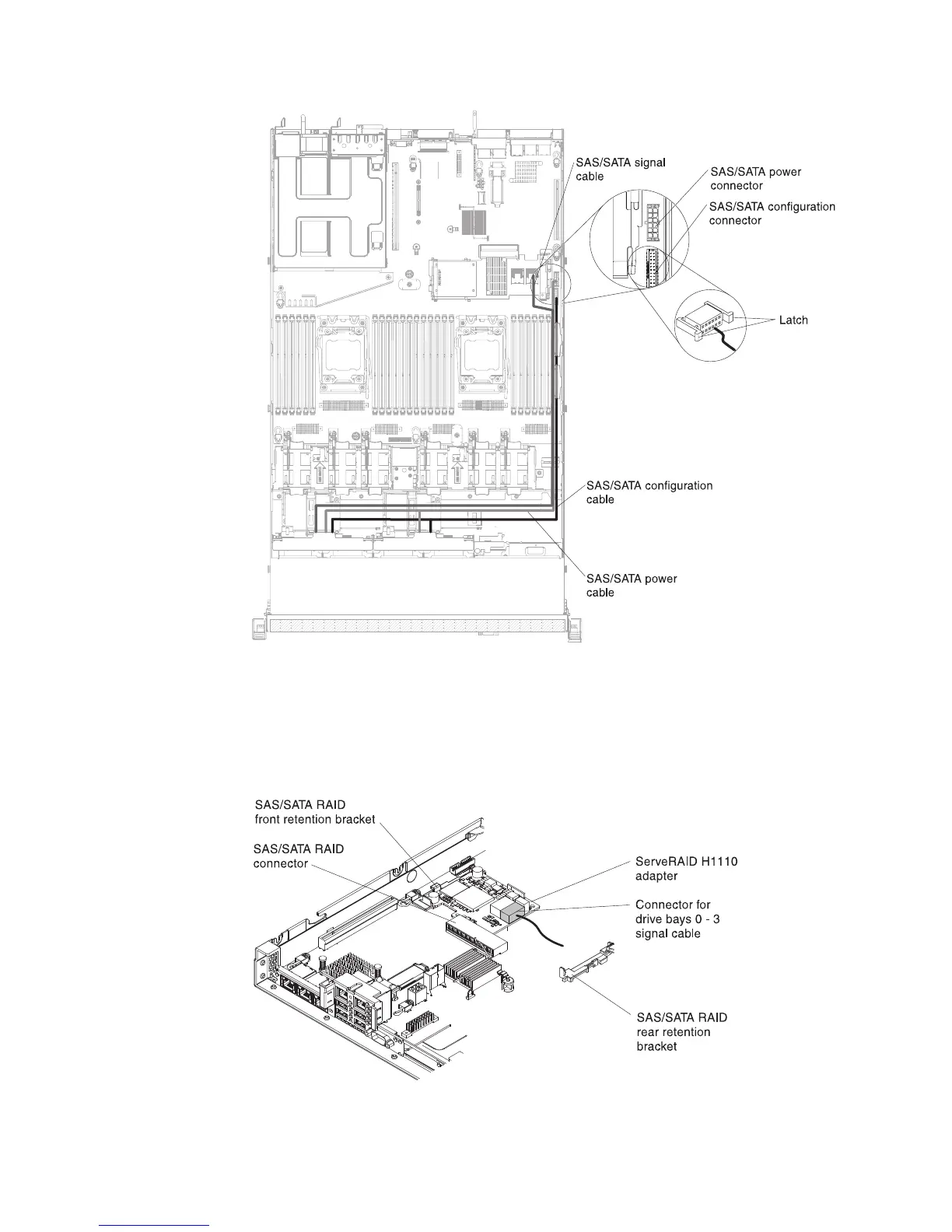

Figure 43. ServeRAID adapter cable routing
Figure 44. ServeRAID H1110 adapter cable routing
62 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
