b. ServeRAID M1115 adapter: Take the signal cable that is attached to the
drive backplane for drive bays 4 through 7 and connect it to the ServeRAID
adapter connector for drive bays 4 through 7 (port 1). Connect the other
signal cable that is attached to the drive backplane for drive bays 0 through
3 and connect it to the other connector (port 0) on the adapter.
c. ServeRAID M5110 adapter: Take the signal cable that is attached to the
drive backplane for drive bays 4 through 7 and connect it to the ServeRAID
adapter connector for drive bays 4 through 7 (port 1). Connect the other
signal cable that is attached to the drive backplane for drive bays 0 through
3 and connect it to the other connector (port 0) on the adapter.
Results
Note: When you restart the server, you are prompted to import the existing RAID
configuration to the new ServeRAID adapter.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 96.

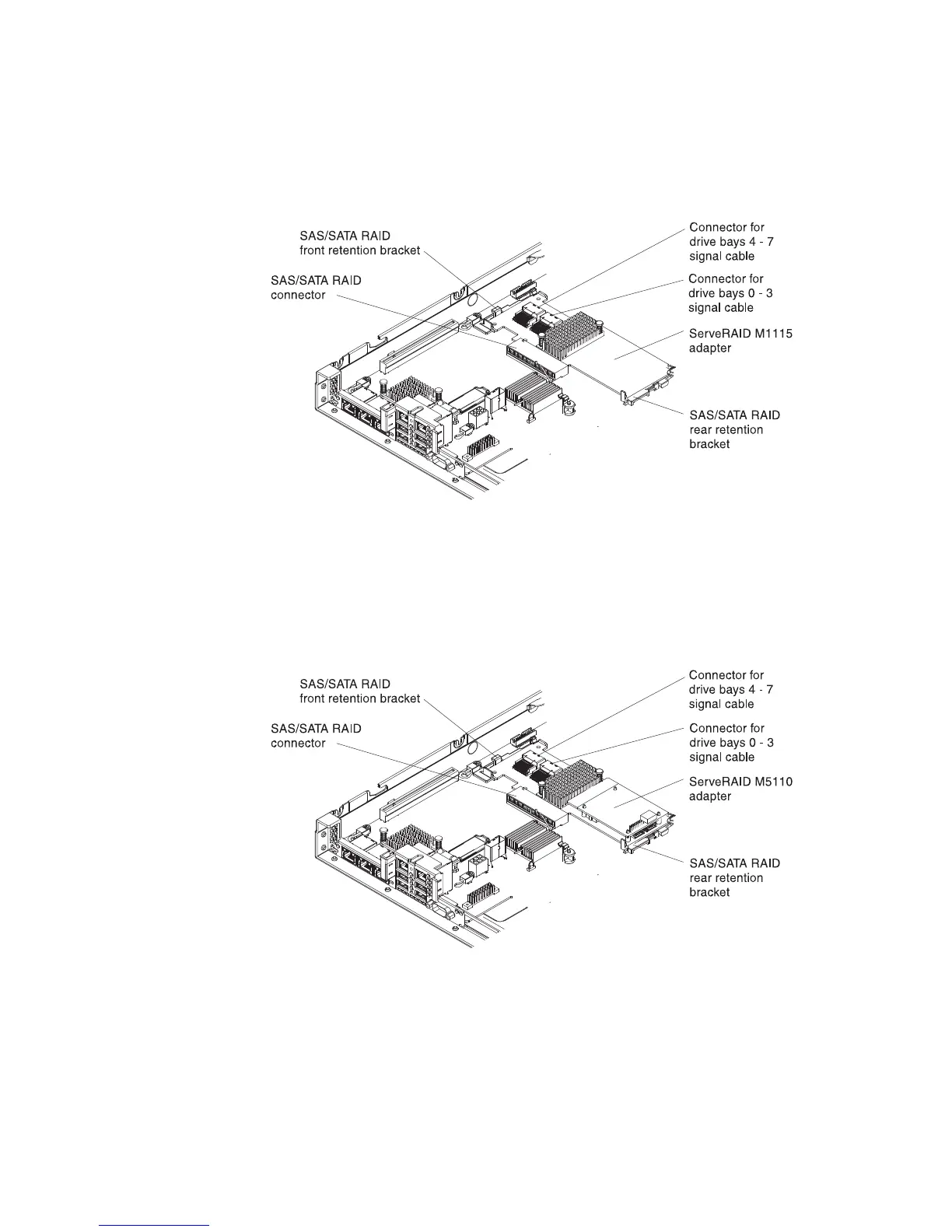

Figure 45. ServeRAID M1115 adapter cable routing
Figure 46. ServeRAID M5110 adapter cable routing
Chapter 2. Installing optional devices 63
