Icom IC-V80 User Manual

47
10

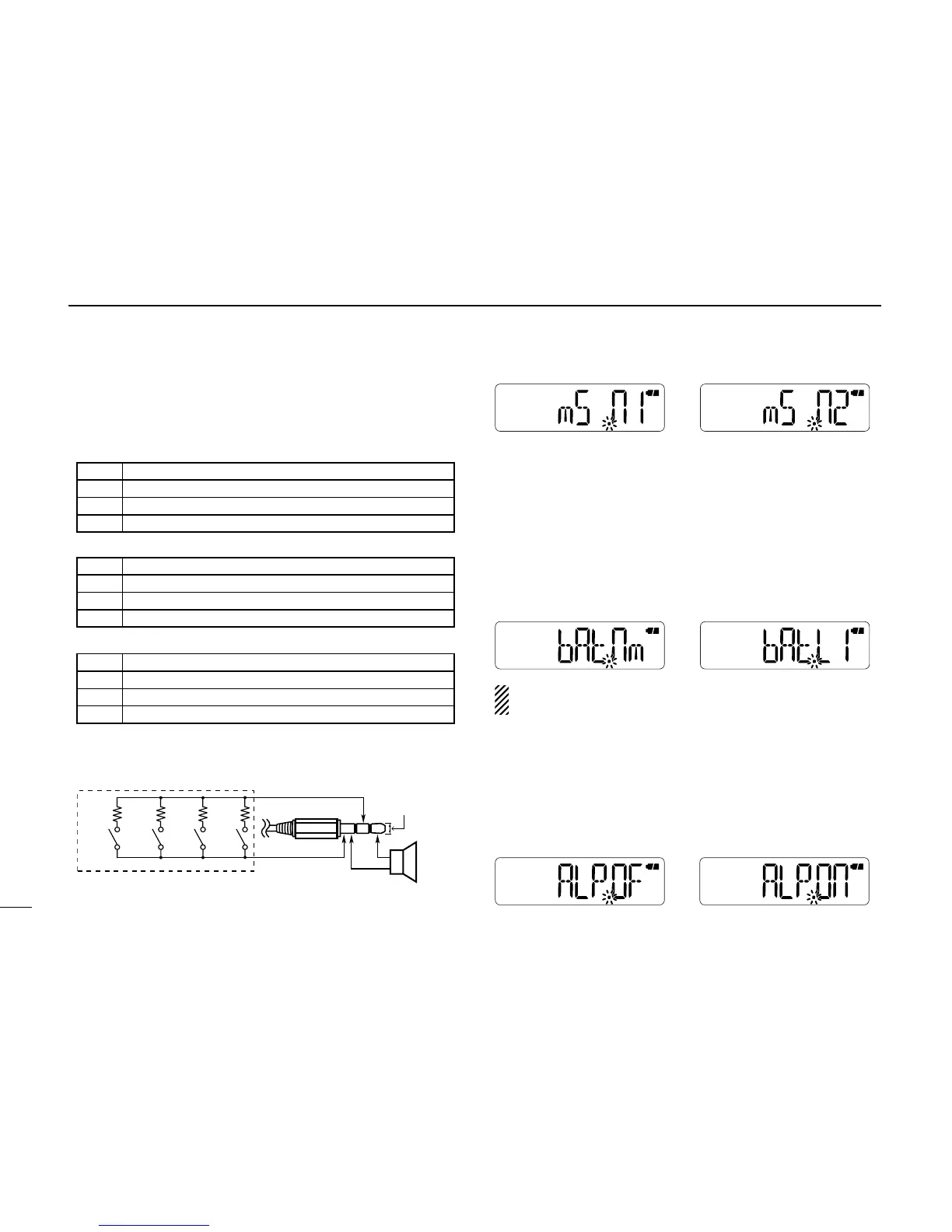

SET MODES
D Microphone simple mode
Microphone simple mode is used to assign the essential opera-
tions to the four switches (S1 to S4) on the remote control unit.
• mS .Sm
• mS .n1 (default)
• mS .n2
• User remote control unit
The below circuit is for reference only.
D Battery protection
When the battery voltage decreases, the battery protection
function automatically turns the transceiver OFF. Select the
function according to your battery type.
(default: differs depending on the version)
• bAt.OF : Turns the function OFF. Select when you use the
BP-263 battery case.
• bAt.nm : Select when you use the BP-264 Ni-MH battery pack.
• bAt.LI : Select when you use the BP-265 Li-Ion battery pack.
NOTE: BE SURE to select an appropriate option accord-
ing to your battery type .
D Auto low power
Turns the auto low power function ON or OFF.
When the temperature goes below 0°C (+32°F), the function
automatically sets the output power to low.
In that case, the transmit power selections (Hi/Mid) are also
disabled.
(default: ALP.OF)
2.7kW 6.8kW 15kW 33kW
+
–
S1 S2
S3
S4
to the [SP] jack
GND
SP
REMOTE
Rated input 700 mW (8 W)
EXTERNAL SPEAKER
3.5(d) mm
>
‗
S1 Selects the Call channel.
S2 Turns the monitor function ON or OFF.
S3 Selects memory channel 0.
S4 Selects memory channel 1.
S1 Toggles the VFO mode and the memory mode.
S2 Selects the Call channel.
S3 Frequency or memory channel “UP.”
S4 Frequency or memory channel “DOWN.”
S1 Toggles the VFO mode and the memory mode.
S2 Turns the monitor function ON or OFF.
S3 Frequency or memory channel “UP.”
S4 Frequency or memory channel “DOWN.”

Icom IC-V80 Specifications

General

Frequency Range	136-174 MHz
Mode	FM
Waterproof	IP54
Dimensions	58 x 112 x 30 mm
Operating Voltage	7.2 V DC
Channels	207 (200 memory channels, 6 scan edges, and 1 call channel)
