Icom IC-V85 - BATTERY PACKS; AD-100 CHARGER ADAPTER INSTALLATION

14
3
BATTERY PACKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Screws supplied with
the charger adapter
Desktop charger adapter
Connectors
BC-119N
AD-100
Plugs
■ Rapid charging

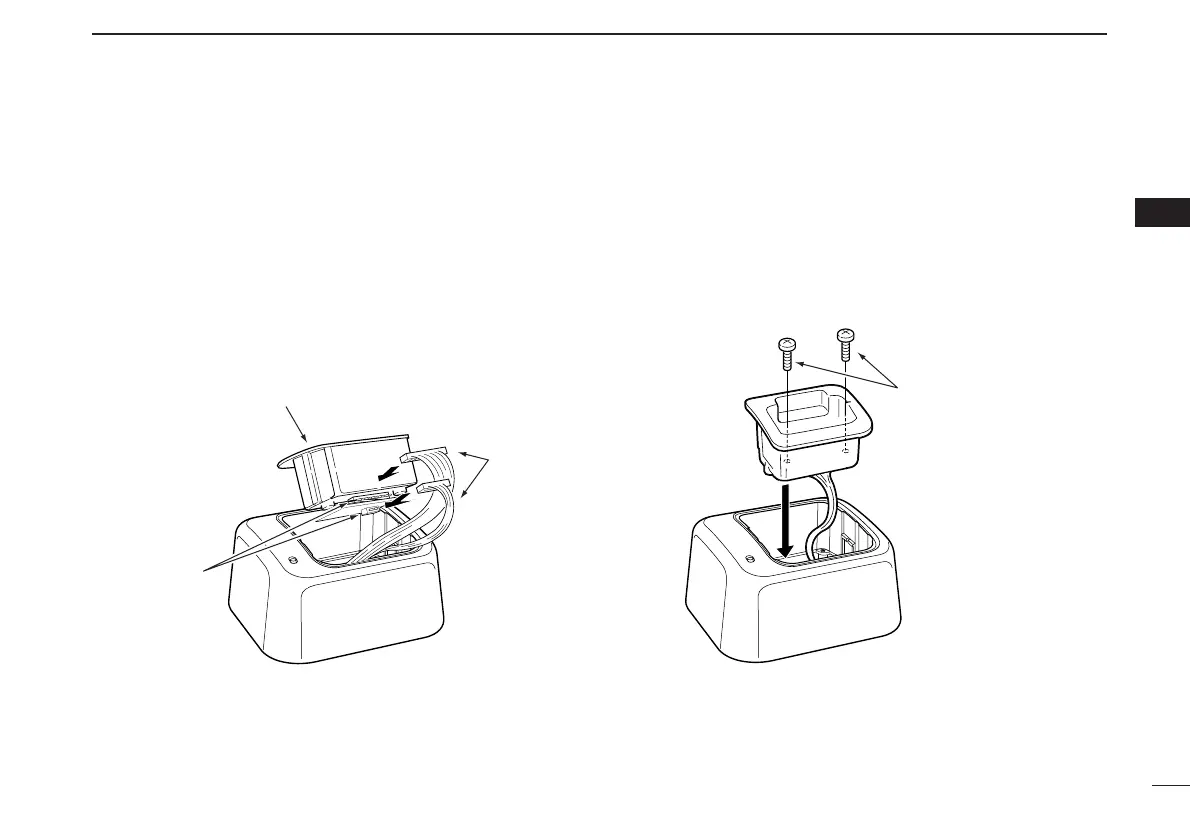

D AD-100 installation
Install the AD-100 desktop charger adapter into the holder
space of the BC-119N/121N.
Connect the plugs of the BC-119N/121N to the AD-100 desk-
top charger adapter with the connector, then install the
adapter into the charger with the supplied screws.
