ClearMark™ Installation, Operation & User Manual – Page 101

V 1.S.10 January 2021

V-1.S.1

External Encoder - Ref IDTIJ-ENCODER00

The external encoder to be used with the printer is:

- 24 V

- 5000 ppr

- Channel A and B

- Wheel 72.5 mm in diameter

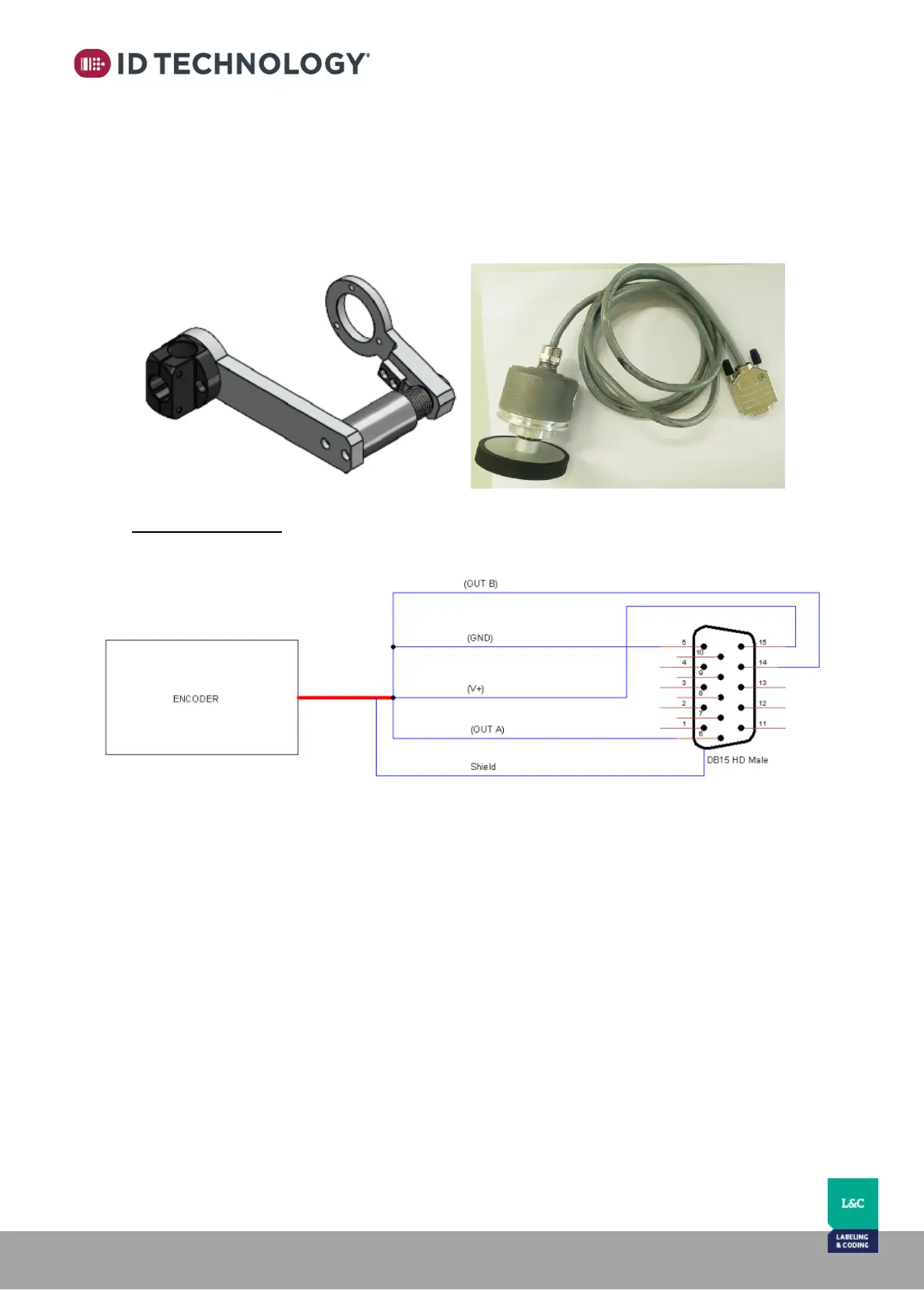

Connection Diagram:
