Connectors

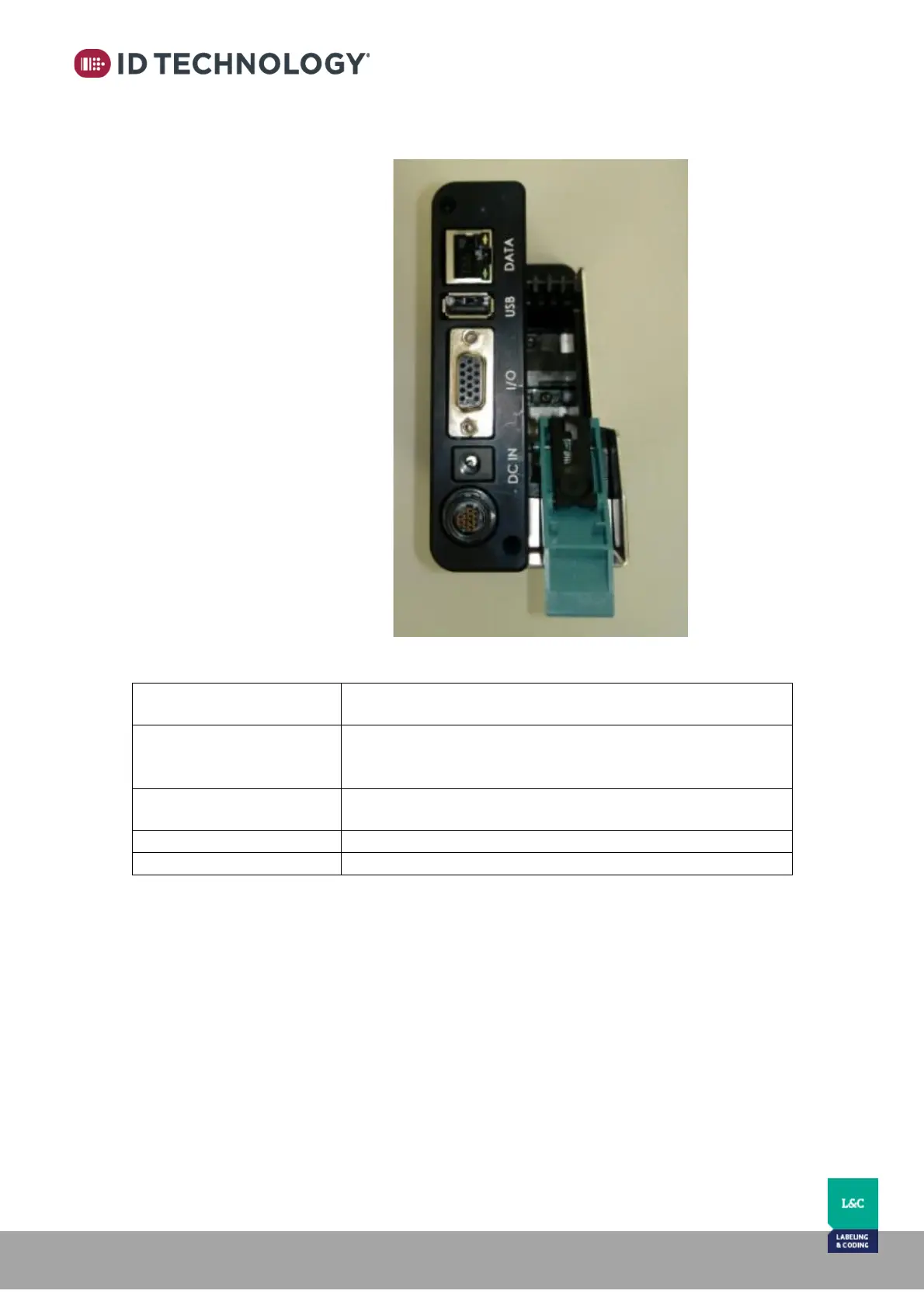

The printer has several connection points:
RJ45 – Ethernet
USB – A – (USB Drive)
GPIO D-SUB15 HD Female
DC IN
HMI
RJ45 – Ethernet
Ethernet connection for checking status and sending printing
data to the printer.
USB – A – USB Drive
USB Stick / Pen Drive input for:
- Loading messages.
- Updating the system.
GPIO D-SUB15 HD Female
GPIO port with several inputs and outputs for general use
See 'Inputs and Outputs' section
DC IN
Power Source
HMI
Connection to the optional 10” user interface Touchscreen.
