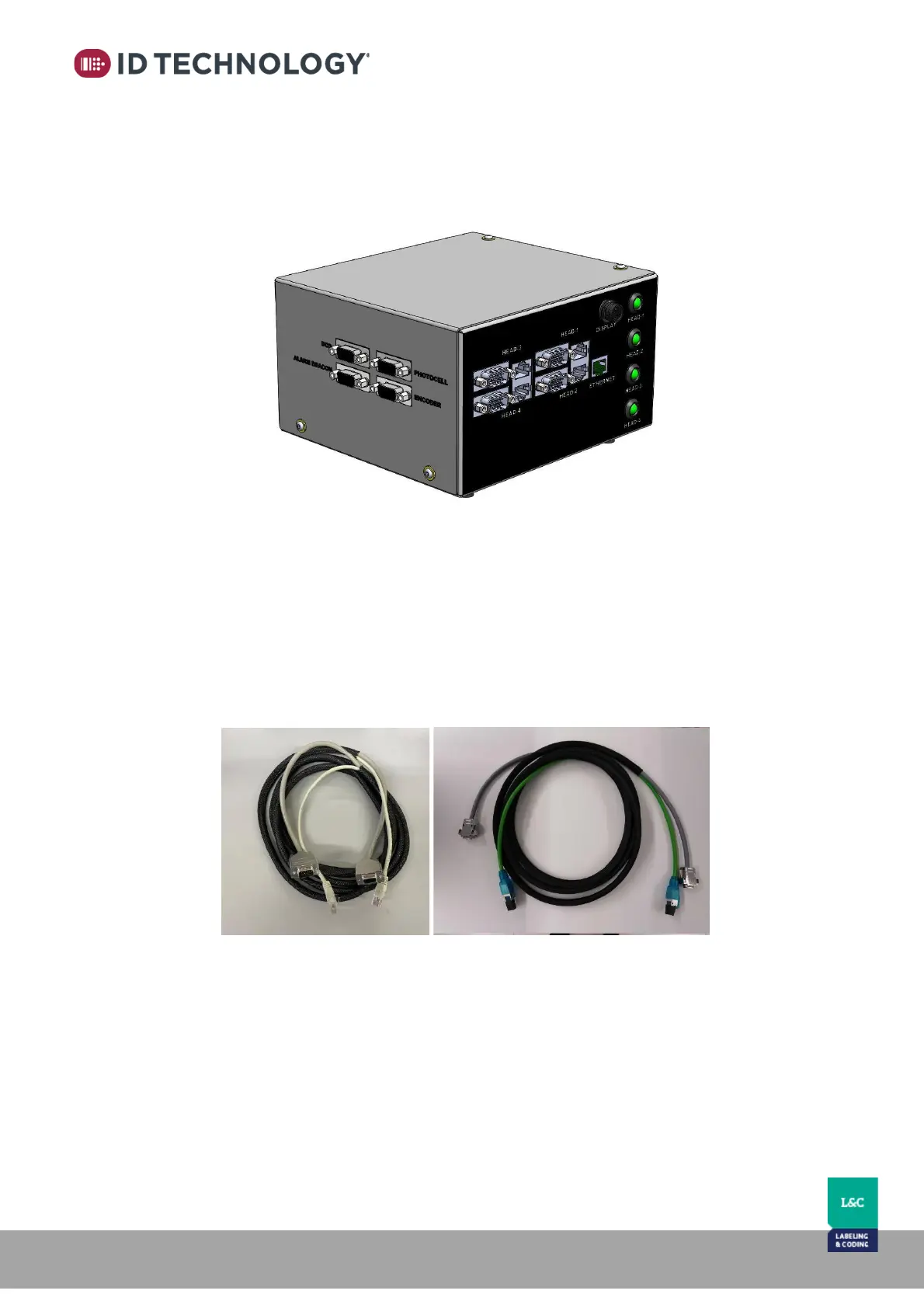

Appendix 6 – Junction Box – Ref IDTIJ-JBOX00
The Junction Box provides the ability to connect up to four printers to a single PC or Touch Screen
HMI.
To connect up to 4 printers, the following is required:
- 1x IDTIJ-JBOX00 Junction Box
- 4 x Cables to interface with each printer. Each cable is 3m long and connects the 15
pin I/O connector and RJ45 ethernet connector.
Two versions of the cable exist:
o IDTIJ-JBCABSTD – Standard Junction Box cable
o IDTIJ-JBCABHF00 – High Flex Junction box cable for traversing etc.
IDTIJ-JBCABSTD00 IDTIJ-JBCABHF00
