ID Technology ClearMark - Alarm Beacon - Ref IDTIJ-ALARM00

ClearMark™ Installation, Operation & User Manual – Page 104
V 1.S.10 January 2021
V-1.S.1
Alarm beacon - Ref IDTIJ-ALARM00
This accessory displays the status of the TIJ Printer based on the alarm output signal
(OUT_NOERROR).
- Green: printer running without errors.
- Red: printer in error status.
- Green and red blinking: printer is running but warning of low ink level.

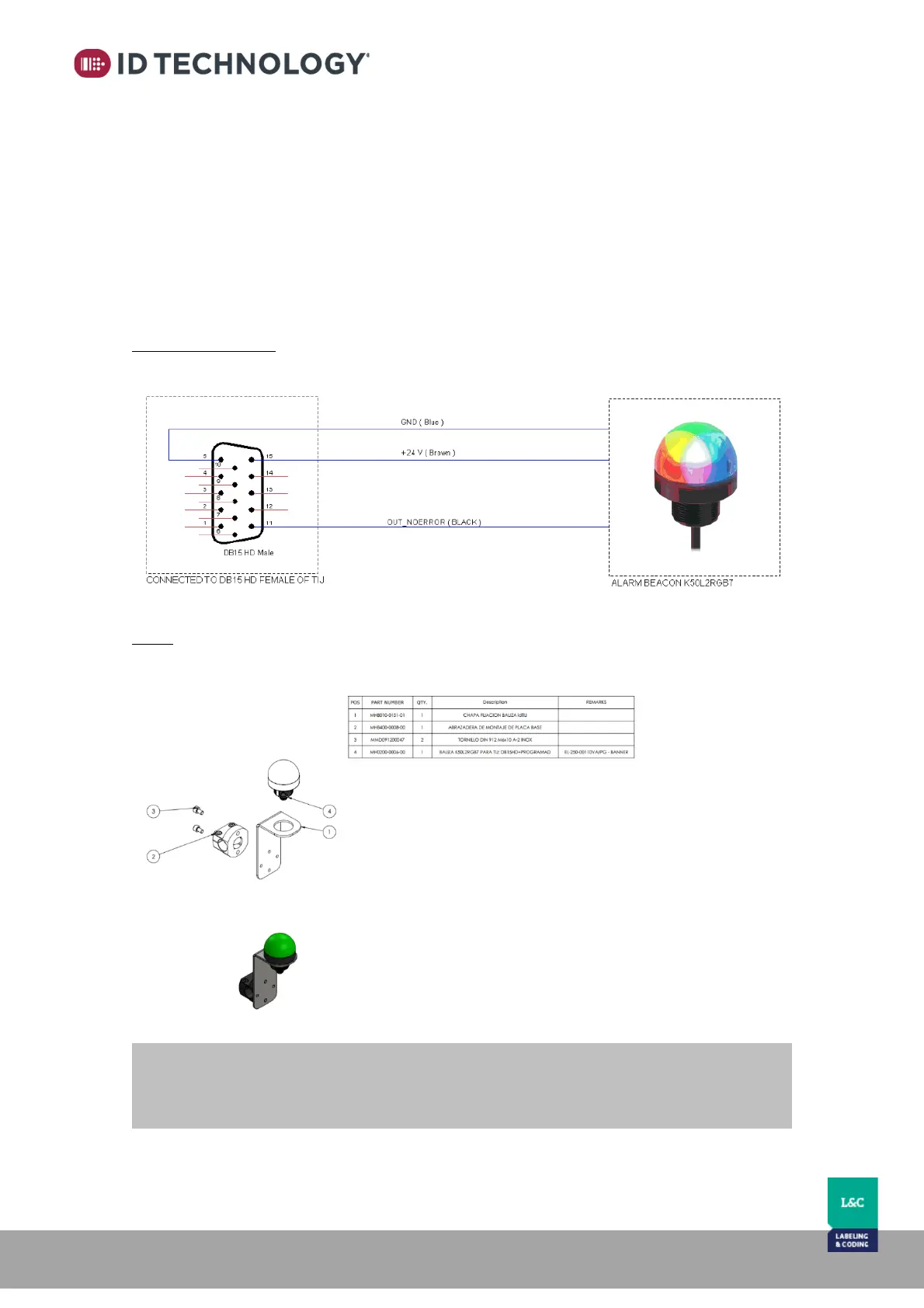

Connection diagram
Stand
The alarm light mounts directly to printer/HMI stand.
NOTES:
- Alarm cable length is 2 meters.
- The alarm beacon is rated to IP66, IP67 and IP69K standards.
