Appendix 5 – Connectors Pinouts & Connections

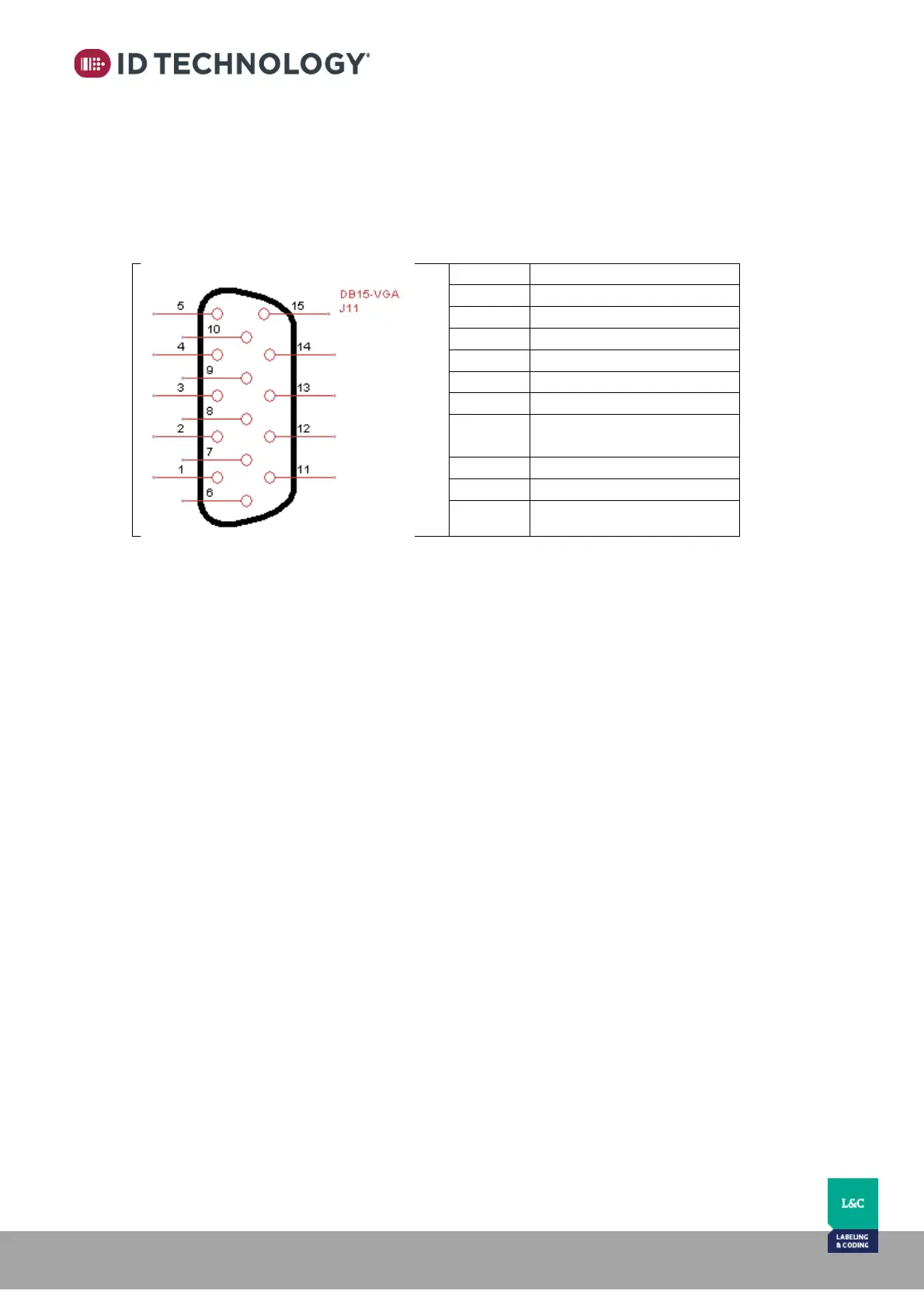

GPIO D-SUB15 HD Female pin
J11 SUBDB15 HD embedded connector on the TIJ printer is a general-purpose Input & Output
connector with the following pin assignments:
Pin #
Description
1
IN0 (IN_BCD0 // START)
9
IN1 (IN_BCD1 // STOP)
2
IN2 (IN_BCD2)
10
IN3 (IN_BCD3)
3
IN4 (IN_STROBE)
12
IN_FTC_EXT
6, 14
IN_ENCODER1 &
IN_ENCODER2
11
OUT_NOERROR
4,13, 15
+24V
5, 7, 8
0 V (GND)
Note: See Inputs & Outputs section for detailed information on the functionality of each Input.
