ID Technology ClearMark - Outputs

ClearMark™ Installation, Operation & User Manual – Page 20
V 1.S.10 January 2021
V-1.S.1
Outputs
Name
Description
Type
Connector
(*)
LED1
LED1 – POWER
Open collector
N/A
LED2
LED2 – PRINTING
Open collector
N/A
LED3
LED3 – OPTION
Open collector
N/A
OUT_NOERROR
24VDC output signal that is high when printer
is active with no errors
Opto
GPIO
D-SUB15 HD

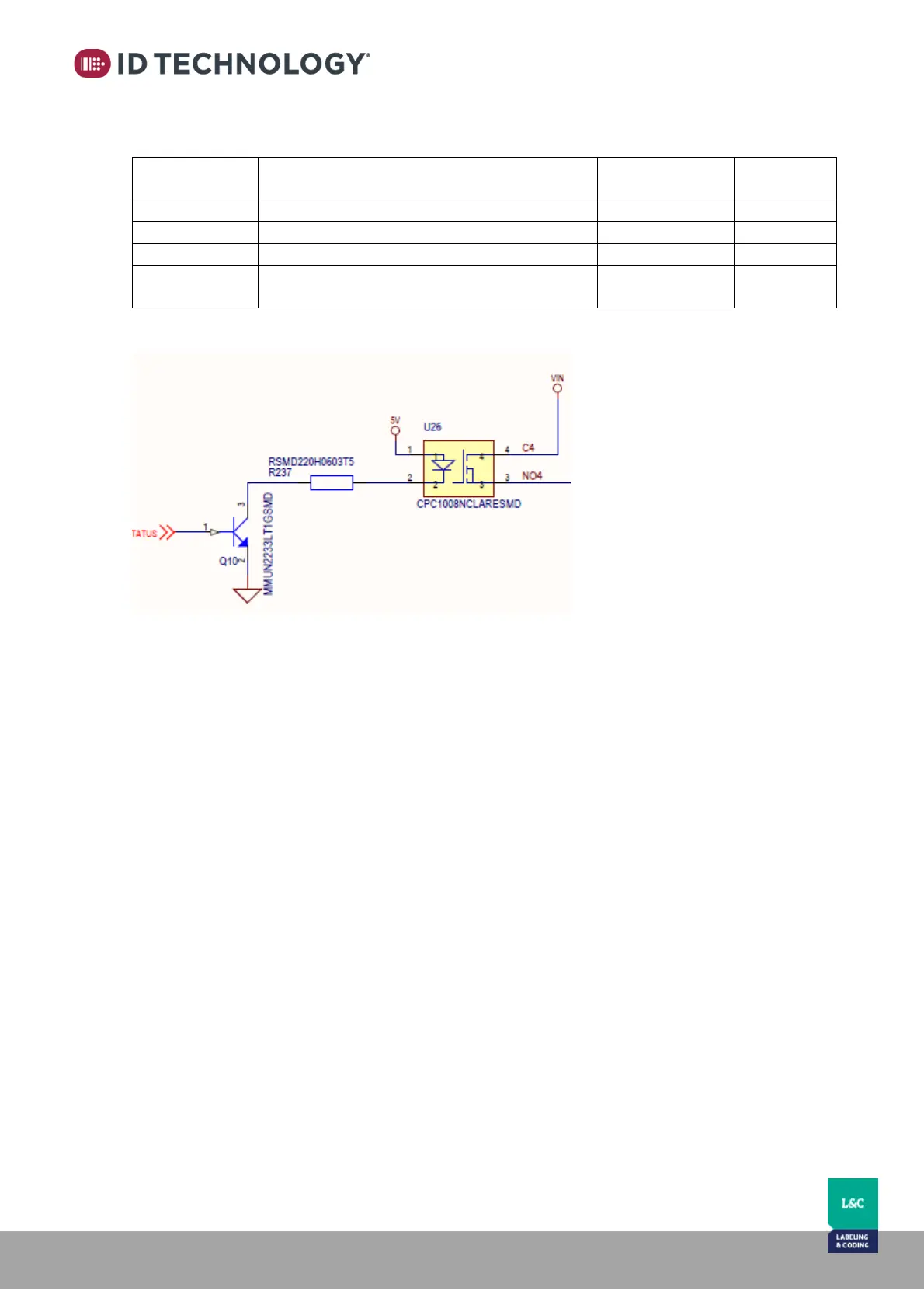

The OUT_NOERROR output is an Opto relay:
(*): See Appendix 4 for details about the VGA15 connector pinout.
