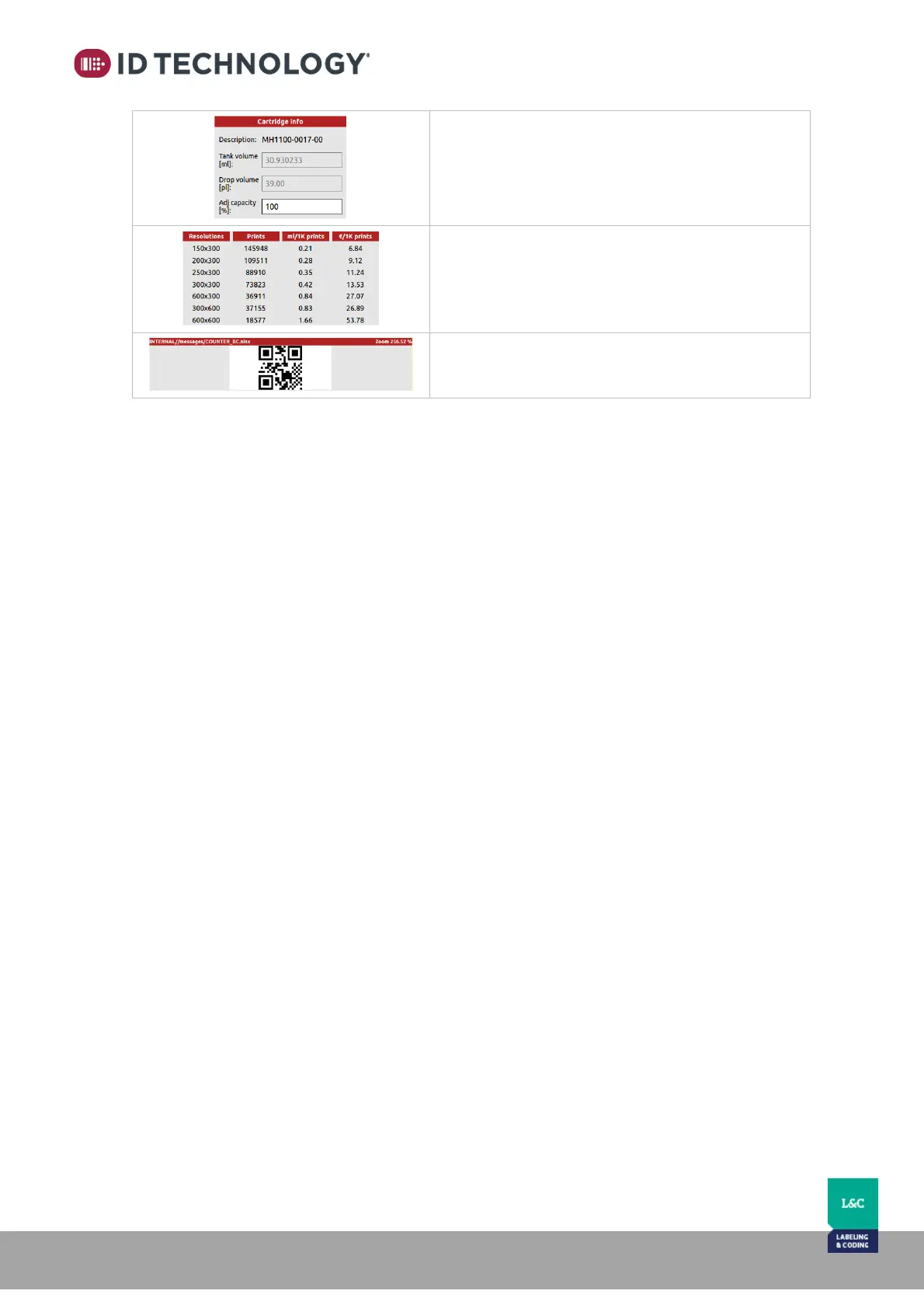

ClearMark™ Installation, Operation & User Manual – Page 58

V 1.S.10 January 2021

V-1.S.1

Information related to the ink volume of the

selected cartridge.

Results of ink cost calculation according to the

cartridge price, print resolution and the selected

message design/dpi etc.

Preview of the selected message.
