ClearMark™ Installation, Operation & User Manual – Page 67

V 1.S.10 January 2021

V-1.S.1

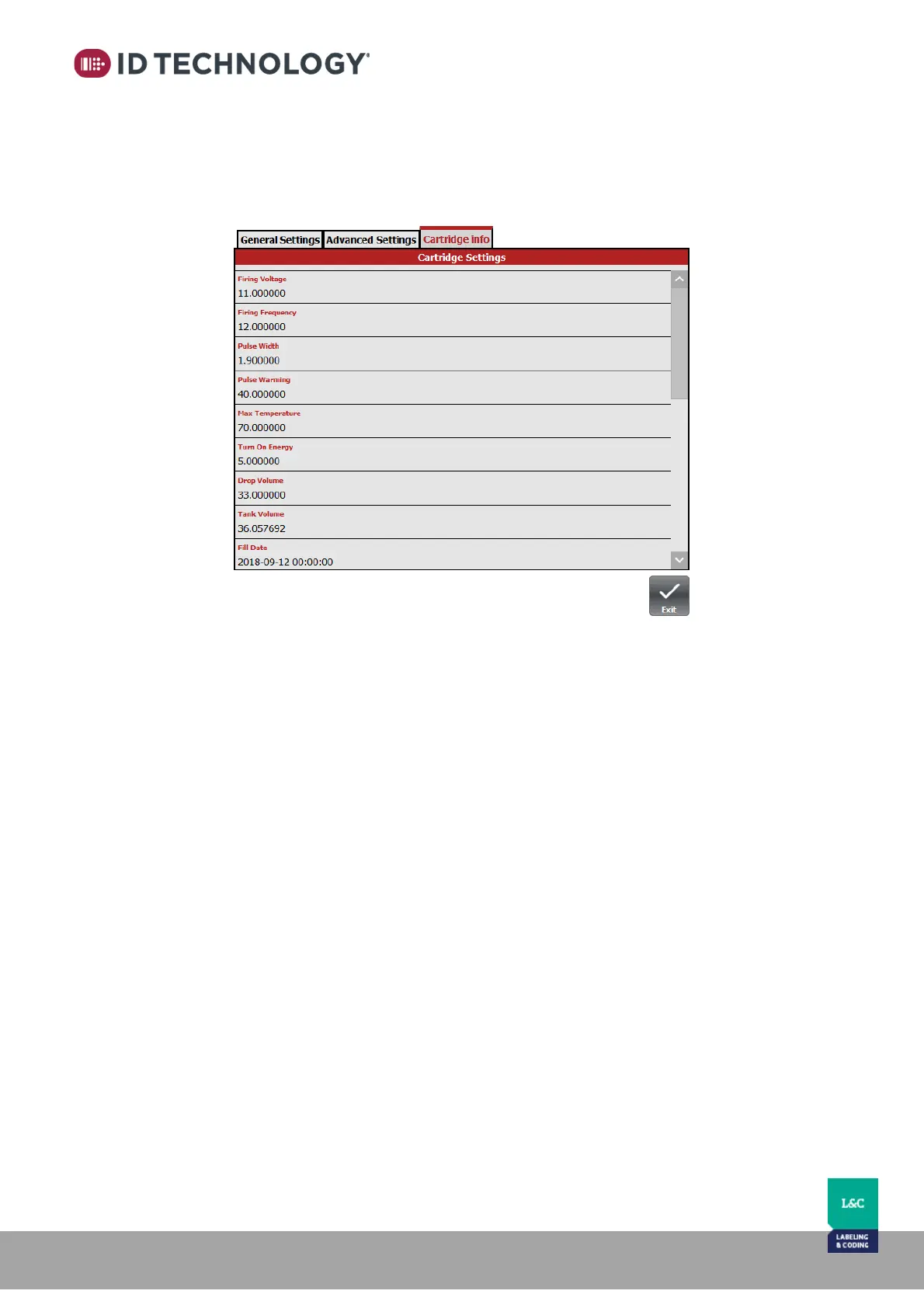

Cartridge information

This tab is only available for Admin user. It shows information about the cartridge currently

inserted into the printer.
