ADS-RR(SR)-FOC1-AS

FoRd Focus with 4.3" myFoRd scReen 2015-2018

Fig. 2.3

Fig. 2.5

Fig. 2.4

Fig. 2.1

Fig. 3.2Fig. 3.1

Fig. 2.2

INSTALLATION INSTRUCTIONS

MAKE CONNECTIONS (refer to wiring diagram)

1. Locate the aftermarket radio’s main harness. Cut the

WHITE, GRAY, GREEN and PURPLE RCA tips. Connect the

wires from the aftermarket radio’s main harness to the

FOC1 t-harness and match the wire functions (refer to

diagram).

2. Connect the FOC1 T-harness to the factory radio harness.

Plug the backup camera cable into the factory harness (if

applicable).

3. Plug the OBD2 connector into the OBD2 port of the

vehicle, located under the driver side dash, and run the

wires up to the radio cavity.

4. Connect all harnesses to the Maestro RR module.

5. Plug the aftermarket radio harnesses into the aftermarket

radio. Plug the Steering Wheel Control Cable into the

aftermarket radio. Plug the backup camera RCA into the

aftermarket radio (if applicable).

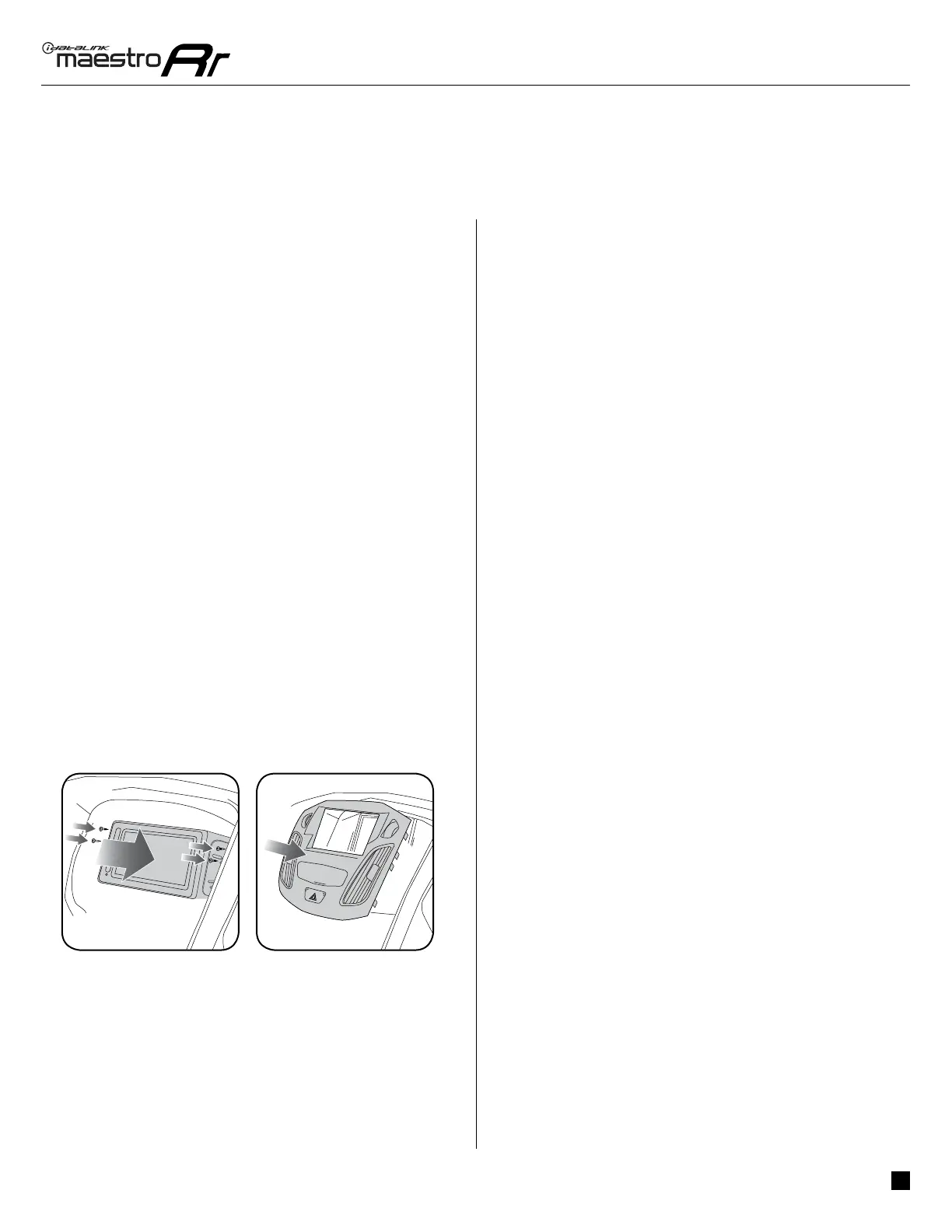

6. Insert the radio into the dash and secure the metal

brackets with (4) T25 screws. (Fig. 3.1)

7. Connect all the harnesses to the FOC1 kit, and secure it

in the dash. Test your installation before completely re-

assembling the bezel to the vehicle. (Fig. 3.2)

TROUBLESHOOTING TIPS:

• To reset the module back its factory settings, turn the key

to the OFF position then disconnect all connectors from the

module. Press and hold the module’s programming button

and connect all the connectors back to the module. Wait,

the module’s LED will ﬂ ash RED rapidly (this may take up

to 10 seconds). Release the programming button. Wait, the

LED will turn solid GREEN for 2 seconds.
