FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 2-85
2: P RODUCT S PECIFICATIONS
Option module
Option modules are available as the expansion interface module, the HMI module, analog cartridges, and communication
cartridges.

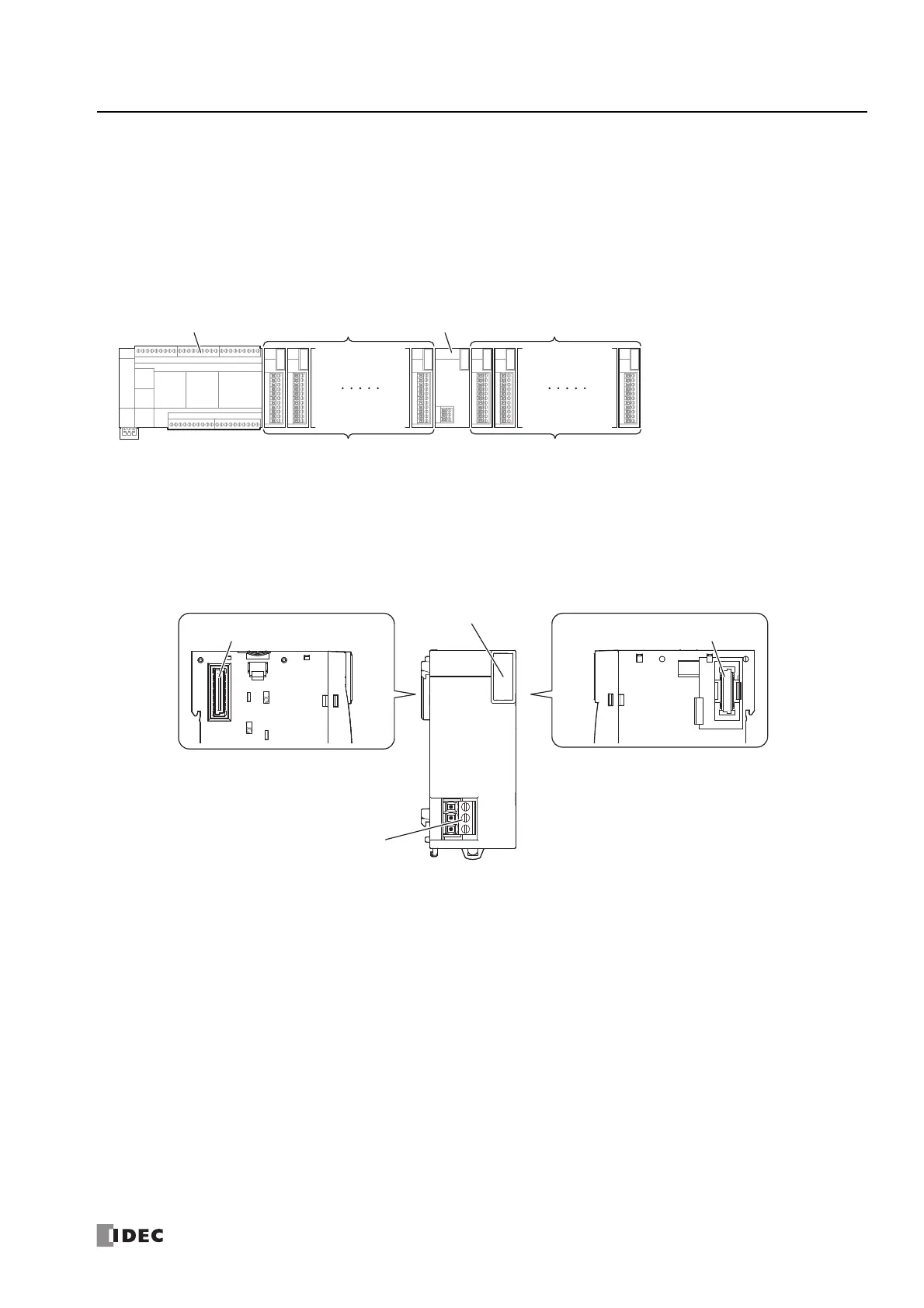

Expansion Interface Module
The number of expansion modules that can be connected to the CPU module (basic expansion side) is 7 modules, but this can be
increased to 8 additional expansion modules (expansion interface side, maximum 256 I/O points) by installing the expansion
interface module.
Notes:
• Only 1 expansion interface module can be connected to 1 CPU module.
• For detailed restrictions when using the expansion interface module and connection examples, see "Connection Restrictions for Expansion
Modules and Option Modules" on page 3-30.
Parts Description
FC6A-EXM2
(1) Power LED [PWR]
This LED turns on when power is supplied to the expansion interface module.
(2) Expansion Connector 1
This connector is used to connect the expansion module on the basic expansion side.
(3) Expansion Connector 2
This connector is used to connect the expansion module on the expansion interface side.
(4) Power Terminal Block
These terminals supply 24V DC power to the expansion interface module.
Expansion ModulesCPU Module
Expansion Interface Module
(FC6A-EXM2)
Expansion Modules
Basic Expansion Side
7 maximum 8 maximum
Expansion Interface Side
(4) Power Terminal Block
(1) Power LED [PWR]
(2) Expansion Connector 1 (3) Expansion Connector 2
